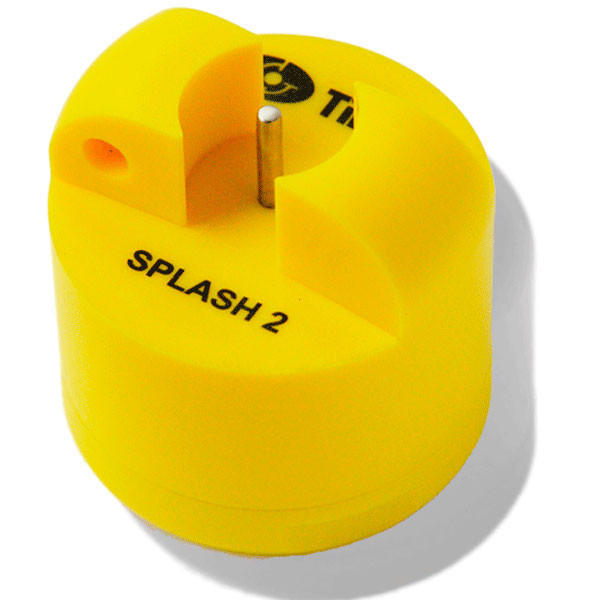

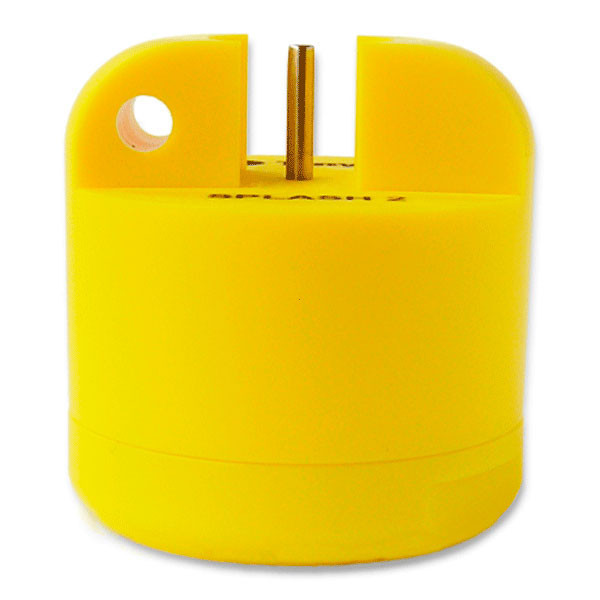

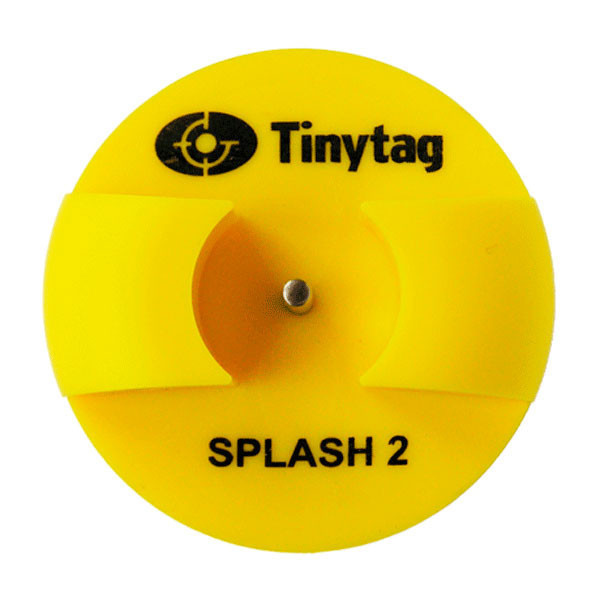

Waterproof Temperature Data Logger TG-4105

Description

It records from -30 °C to +105 °C and is particularly well suited to environments involving washdown, disinfection, moisture exposure or temporary immersion.

With its high-visibility yellow case and short integral external probe, the TG-4105 offers a fast response time, making it an excellent solution for temperature monitoring in industrial dishwashers, washer disinfectors, food processing and pasteurisation. Its submersible construction to 15 metres supports demanding industrial and process validation tasks.

Data is offloaded through a USB inductive pad, removing the need for physical sockets and waterproof caps. The logger provides 32,000 reading capacity, 2 programmable alarms, delayed or magnetic trigger start, multiple stop modes and a low battery warning, making it a practical tool for temperature traceability and process verification.

Key benefits

• High temperature logger rated up to +105 °C.
• IP68 waterproof and submersible to 15 m.
• Integral external probe for fast thermal response.
• Memory capacity of up to 32,000 readings.
• 2 fully programmable alarms.
• User-programmable logging intervals from 1 second to 10 days.
• Delayed start and magnetic trigger start options.
• USB inductive pad download with no exposed connectors.
• Low battery warning for improved operational security.

Recommended applications

The Tinytag Splash 2 TG-4105 is built for temperature monitoring in wet, washable or high-temperature industrial environments. It is especially suitable for:

• Industrial dishwashers and technical washing systems.
• Washer disinfectors and thermal disinfection processes.
• Food processing temperature monitoring.
• Pasteurisation and cycle validation.
• Industrial applications requiring submersible temperature logging.

Technical and functional advantages

The TG-4105 combines physical robustness, high water resistance and stable thermal performance in a single logger. Its inductive offload system allows data transfer without sockets or waterproof caps, reducing potential failure points and simplifying use in demanding washdown environments.

The logger records actual, minimum and maximum values, supports multiple stop options and stores data in non-volatile memory. A visible status LED in the base helps confirm operating condition and alarm status, making the unit well suited to validation, traceability and process control in critical applications.

Technical specifications - Tinytag Splash 2 TG-4105

The table below summarizes the main Tinytag Splash 2 TG-4105 technical specifications for quick reference on desktop, tablet and mobile devices.

Scope of delivery

The logger is supplied as the core recording unit. To configure and download data, the required software and inductive pad listed in the specifications are needed.

• 1 x Tinytag Splash 2 TG-4105

Required and related products

To use this Tinytag data logger, the following items are required:

• SWCD-0040 - Tinytag Explorer software
• ACS-3030 - USB Inductive Pad
• SWPK-3-USB - Tinytag Explorer and Inductive Pad Pack
