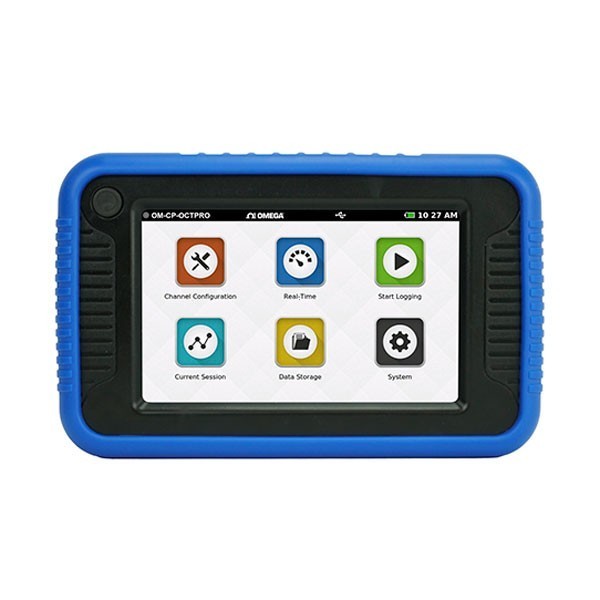

8-Channel Portable Data Logger OM-CP-OCTPRO DwyerOmega

OM-CP-OCTPRO

New product

8-Channel Portable Data Logger with Touch Screen

Brand: DwyerOmega

The OM-CP-OCTPRO is a portable, all-in-one data logger designed for professionals who require fast, accurate, and real-time data analysis. With its full-color 5-inch touch screen and 8 input channels, it measures current, voltage, temperature, and pulse simultaneously — without the need for a computer.

More details

1 160,15€ tax excl.

Add to wishlist

More info

Main Benefits

  • All-in-one solution — no PC required
  • 5” full-color capacitive touch screen for intuitive navigation
  • Real-time monitoring of current, voltage, temperature, and pulse
  • Compatible with thermocouples, RTDs, and thermistors
  • Instant graph visualization for on-the-spot analysis
  • Includes international power supply and plug adapters

Ideal Applications

  • Process monitoring and control
  • Machine performance and efficiency testing
  • Multi-purpose laboratory and R&D applications
  • Compliance and quality assurance checks
  • Automotive diagnostics and field testing

OM-CP-OCTPRO Key Specifications

CategorySpecification
Dimensions169 mm x 112 mm x 36 mm
Touch Screen5 inches, full-color
Number of Channels8
Weight590 g
IP RatingIP20
Start ModesImmediate & Delayed Start
Memory1,000,000 readings
Battery Type3.7 V Rechargeable Lithium-Ion
Battery Life9h continuous / 100h standby
Data Format.csv
Time Accuracy±1 min/month
Operating Environment0 °C to 50 °C; 0% to 95% RH non-condensing
Enclosure MaterialPolycarbonate with TPE protective boot
CalibrationAnnual factory calibration recommended

Input Types & Accuracy

Input typeValue
0–24 mA
Resolution0.0001 mA
Accuracy±0.024 mA
Range0 to 24 mA
Input Impedance30 Ω
0–100 mV
Resolution0.0001 mV
Accuracy±0.1 mV
Range0 to 100mV
Maximum voltage3.0 V
Input Impedance1 GΩ
0–10 V
Resolution
0.0001 V
Accuracy±0.01 V
Range0 to 10 V
Maximum voltage25 V
Input Impedance1 GΩ
Frequência / Pulso
Maximum Count 4.000.000.000
Maximum Frequency0–20 kHz
Input signal0–12 V
Input Impedance58 kΩ
NTC-1 (2252)
Resolution0.01 °C
Accuracy±0.50%
Range-25 °C to 150 °C
NTC-2 (10K)
Resolution0.01 °C
Accuracy±0.50%
Range-25 °C to 150 °C
PT-100 (RTD 2 fios)
Resolution0.01 °C
Accuracy±0.1 °C
Range-200 °C to 400 °C
Input Impedance-
PT-100 (RTD 3 fios)
Resolution0.01 °C
Accuracy±0.1 °C
Range-200 °C to 400 °C
Tipo J
Resolution0,1 °C
Accuracy±0,5 °C
Range-200 °C a 760 °C
Input Impedance-
Tipo K
Resolution0,1 °C
Accuracy±0,5 °C
Range-270 °C a 1370 °C
Tipo T
Resolution0,1 °C
Accuracy±0,5 °C
Range-270 °C a 400 °C
Tipo E
Resolution0,1 °C
Accuracy±0,5 °C
Range-270 °C a 980 °C
Tipo R
Resolution0,5 °C
Accuracy±2,0 °C
Range-50 °C a 1760 °C
Tipo S
Resolution0,5 °C
Accuracy±2,0 °C
Range-50 °C a 1760 °C
Tipo N
Resolution0,1 °C
Accuracy±0,5 °C
Range-270 °C a 1300 °C
Tipo B
Resolution0.5 °C
Accuracy±2.0 °C
Range50 °C a 1820 °C

Note: The accuracy of thermocouple readings depends on the ambient temperature (25°C ±10°C) after a 60-minute warm-up period. Cold junction compensation (CJC) has an error of ±1.5°C.

Process Inputs:

  • 0–24 mA | Resolution: 0.0001 mA | Accuracy: ±0.024 mA
  • 0–100 mV | Resolution: 0.0001 mV | Accuracy: ±0.1 mV
  • 0–10 V | Resolution: 0.0001 V | Accuracy: ±0.01 V
  • Pulse Input: Up to 20 kHz, 0–12 V signal

Temperature Inputs:

  • Thermistors: NTC-1 (2252) and NTC-2 (10K) | Range: -25 °C to 150 °C
  • RTDs: PT-100 (2- and 3-wire) | Range: -200 °C to 400 °C
  • Thermocouples: J, K, T, E, R, S, N, B types | Up to 1820 °C depending on type

Battery Setup & Runtime

Battery performance depends on configuration:

  • 1-minute reading rate, 8 channels: up to 10h 30min
  • 1-second reading rate, 8 channels: ~9h
  • Standby mode: up to 100h

Important Notice

Battery Warning: Risk of fire or explosion if mishandled. Do not disassemble, short-circuit, heat above 100 °C, or incinerate.

Included in the Package

  • OM-CP-OCTPRO Data Logger
  • International power adapter with plug set
  • Quick start guide

The OM-CP-OCTPRO delivers unmatched flexibility and performance for professionals who need fast, multi-channel data logging without complexity. Built for industrial environments, labs, and technical teams who demand accuracy and portability in one compact device.
