PT1000 Immersion probe Greisinger GTF175-BNC

GTF175-BNC

New product

Brand: Greisinger

Temperature immersion probe PT1000, class B (±0.3 °C at 0 °C) with V4A tube, Ø3 mm with plastic handle, anti-buckling glanding, 1 m silicone cable and BNC connector. Temperature range -70 to +250 °C. Suitable for measuring in liquids and gases.

Made in Germany Range -70ºC...+250ºC

More details

53,60€ tax excl.

Add to wishlist

More info

Key Features:

  • Range -70 to +250°C
  • Suitable for temperature measure in liquids and gases
  • Response time less than 2 seconds
  • Maximum probe temperature +250°C

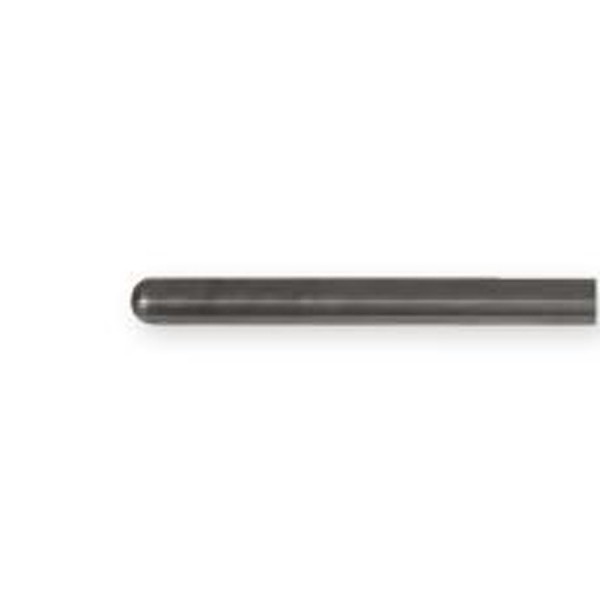

  • Probe tube stainless steel V4A
  • Cable in silicone

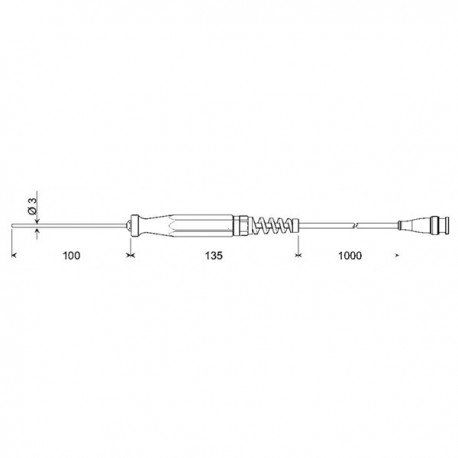

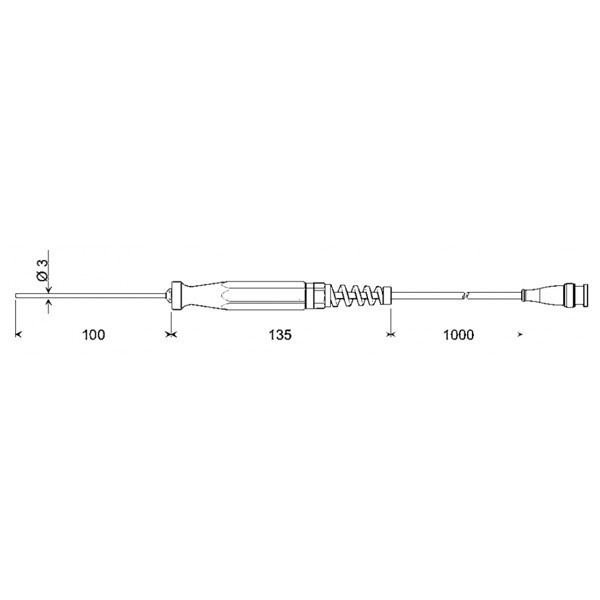

  • Ø3 x 100 mm
  • Suitable for Greisinger temperature instruments

This stainless steel V4A penetration probe is versatile and strong and incorporates a PVC handle and silicone cable.

The PT1000 RTD probe is suitable for many temperature measurement applications including laboratories and food industry.

Response time less than 2 seconds and it has a temperature range -70 to +250°C. The probe dimensions are Ø3 x 100 mm and it is suitable for use with the Greisinger termometers.

Available thermometer for use with the PT100 class B probe:

What is V4A

V4A is a German steel grade that can get in contact with salt water without corrosion. Additional to that V4A is food safe.

V4A steel is resistant against water, water vapor, moisture, food acids, as well as organic and inorganic alkaline solutions and has many possibilities of application such as in the food industry, beverage production, pharmaceuticals and cosmetics industry, In the construction of apparatus for chemicals and in the medical technique.

In these cases, it is recommended to use V4A stainless steel (material no. 1.4404) with a higher corrosion resistance, adapted to the highest requirements.

Summary of advantages of V4A stainless steel:

  • Corrosion resistant
  • Temperature resistant
  • Conductor
  • Can be soldier
  • Hygienic
  • Requires little maintenance
  • Lasting

Areas of application:

  • Health:
    • Blood collection
    • Clinics
    • Hospitals
    • Pharmacies
    • Laboratories
    • Veterinary
  • Food sector:
    • Agriculture
    • Canteens
    • Bakery
    • Restaurants
    • Oenology
    • Hotels
    • Catering
    • Fishmongers
    • Food industry
    • Home Brewing
    • Supermarkets
    • Pastries
    • Butchers
    • Food Transportation
  • Other sectors
    • Industry
    • Environmental Health professionals

IP Rating

An IP rating, also known as "International Protection" or "Ingress Protection" rating, is a value assigned to a product that determines its susceptibility to ingress from solids and liquids. The first numeric digit relates to the level of protection against solid objects, and the second numeric digit indicates the level of protection against liquid ingress. Click for a table of IP Rating values.

Table of IP rating values

IP65 - No ingress of dust (6); Protection from water ingress: Low pressure jets of water (5).
