PT100 1/10 DIN Immersion probe Senseca GTF 401

Key Features:

• Range -50 to +400°C
• Suitable for temperature calibration
• Response time less than 5 seconds.
• Maximum probe temperature +400°C
• Probe tune stainless steel V4A
• Cable in PVC

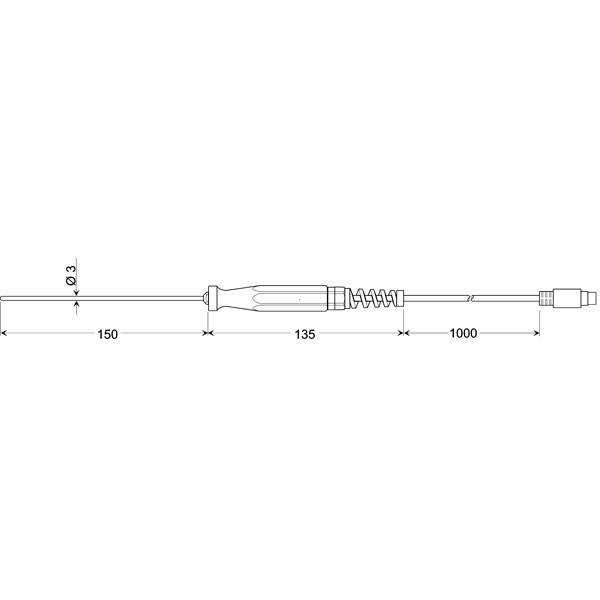

• Ø3 x 150 mm
• Suitable for GMH 3530, GMH 3710, GMH 3750

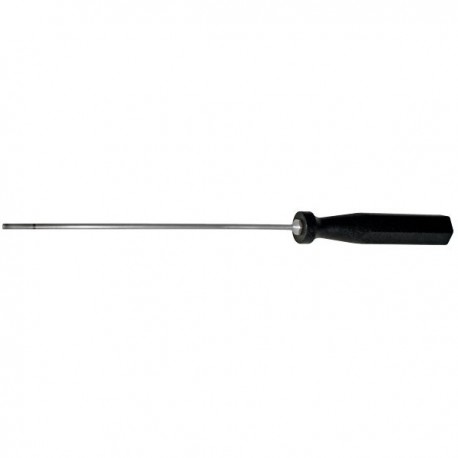

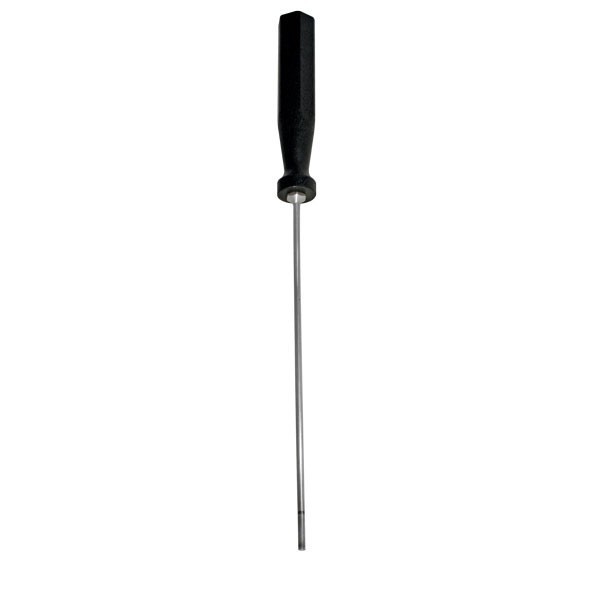

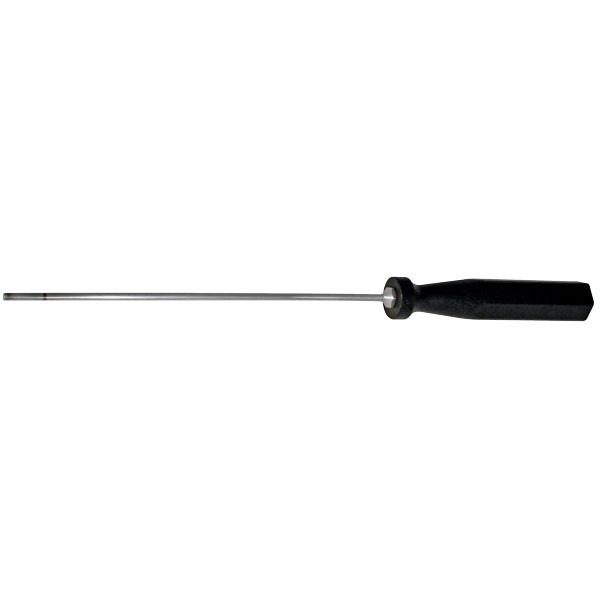

This stainless steel V4A penetration probe is versatile and strong and incorporates a PVC handle and cable.

The PT100 probe is suitable for many temperature measurement applications including laboratories, temperature calibration.

Response time less than five seconds and it has a temperature range -50 to +400°C. The probe dimensions are Ø3 x 150 mm and it is suitable for use with the Greisinger termometers GMH 3530, GMH 3710, GMH 3750.

Reference thermometer indicated for use with the PT100 1/10 class B probe:

Indicated thermometer GMH 3710

What is V4A

V4A is a German steel grade that can get in contact with salt water without corrosion. Additional to that V4A is food safe.

V4A steel is resistant against water, water vapor, moisture, food acids, as well as organic and inorganic alkaline solutions and has many possibilities of application such as in the food industry, beverage production, pharmaceuticals and cosmetics industry, In the construction of apparatus for chemicals and in the medical technique.

In these cases, it is recommended to use V4A stainless steel (material no. 1.4404) with a higher corrosion resistance, adapted to the highest requirements.

Summary of advantages of V4A stainless steel:

• Corrosion resistant
• Temperature resistant
• Conductor
• Can be soldier
• Hygienic
• Requires little maintenance
• Lasting

IP Rating

An IP rating, also known as "International Protection" or "Ingress Protection" rating, is a value assigned to a product that determines its susceptibility to ingress from solids and liquids. The first numeric digit relates to the level of protection against solid objects, and the second numeric digit indicates the level of protection against liquid ingress. Click for a table of IP Rating values.

Table of IP rating values

IP65 - No ingress of dust (6); Protection from water ingress: Low pressure jets of water (5).
