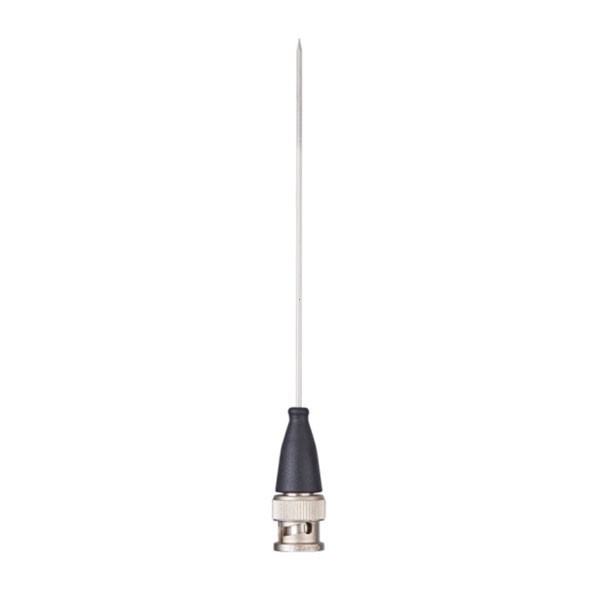

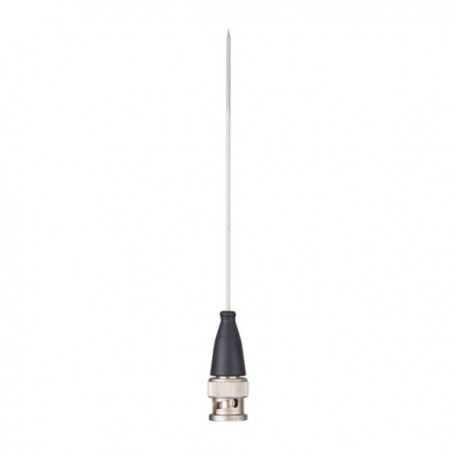

Penetration Probe GF2T-E1.5-A-BNC Pt1000

Reference: GF2T-E1.5-A-BNC

Condition: New product

GF2T-E1.5-A-BNC Pt1000 Penetration Probe – High Precision and Durability

The GF2T-E1.5-A-BNC penetration probe is a high-performance solution designed for precise temperature measurements in demanding environments.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Main Benefits

High accuracy with Pt1000 Class A thin-film sensor, reliable between -30°C and +250°C.
Robust construction in corrosion-resistant V4A stainless steel for long-lasting performance.
Ultra-fast response time: less than 1 second in moving water, approx. 12 seconds in air.
Universal BNC connector compatible with devices like ECO 120 and G 1700.
Ideal for industrial, food, pharmaceutical, and laboratory use.
Crafted with a V4A stainless steel tube and equipped with a BNC connector featuring EPDM sealing, this probe ensures reliability, durability, and fast response times in both industrial and laboratory applications.

Recommended Applications

This sensor is ideal for temperature monitoring in liquids, semi-solid food products, thermal process environments, and any system requiring fast, precise thermal response.

Technical Specifications

Feature	Details
Model	GF2T-E1.5-A-BNC
Sensor Type	Pt1000, thin-film, 2-wire
Measuring Range	-70°C to +250°C
Accuracy	Class A (valid from -30°C to +250°C)
Tube Diameter	Ø 1.5 mm
Probe Length	100 mm
Tube Material	V4A stainless steel
Response Time (T90)	< 1 s in water (0.4 m/s), approx. 12 s in air (2 m/s)
Connector	BNC plug with EPDM grommet (up to +75°C)
Protection Rating	IP67 (when connected)
Cable	1 m silicone cable, high-temperature resistant

Key Differentiators

Handle-free design for compact integration into sensitive processes.
Plug-and-play compatibility with standard BNC-input thermometers.
EPDM sealing for increased protection in moist or thermally dynamic environments.

Choose the GF2T-E1.5-A-BNC probe for reliable, high-performance temperature measurement. It’s the smart choice for professionals demanding speed, precision, and durability.
