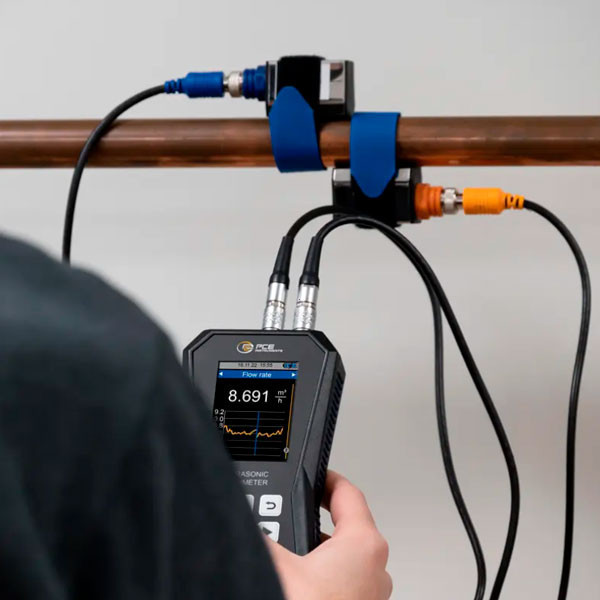

With a measurement range of ±32 m/s, high repeatability and multiple measurement methods, the unit delivers solid performance across a wide range of operating conditions. The installation assistance menu helps position the sensors correctly and graphically displays signal quality and the proper distance between the sensors, making setup easier even in demanding applications.

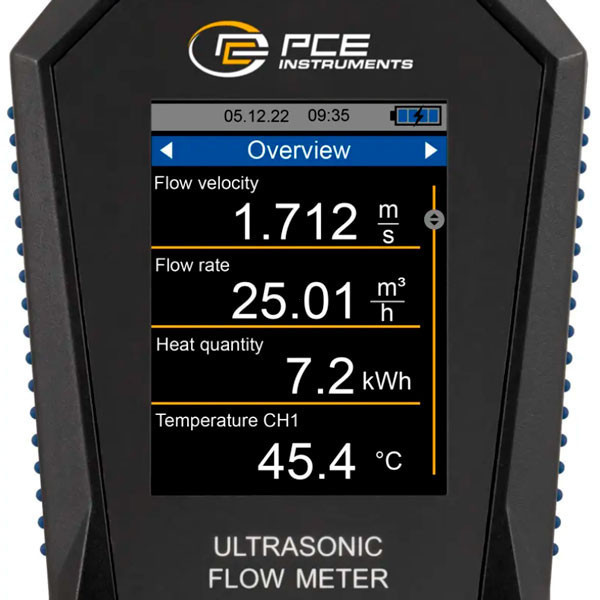

Once the pipe and medium parameters are entered, the display shows flow velocity, flow rate and volume, with support for multiple units. The built-in 32 GB memory can store up to 10 million values, with logging intervals adjustable from 1 second to 12 hours. For advanced analysis, the optional software allows users to view data in table or graph format, export to CSV, generate reports and monitor values in real time.

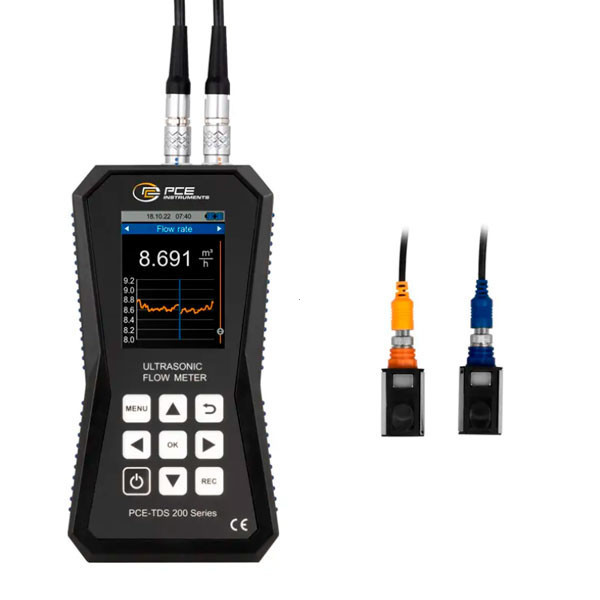

The PCE-TDS 200 S is suitable for water, seawater, oils, fuels, alcohols and other liquids with low impurity levels, making it a highly versatile choice for maintenance, commissioning, energy audits and system verification. It is optionally available with an ISO or DAkkS calibration certificate.

Key benefits

• Non-invasive ultrasonic flow measurement without cutting the pipe.
• 32 GB internal memory for up to 10 million logged values.
• ±0.5% repeatability of the measured value.

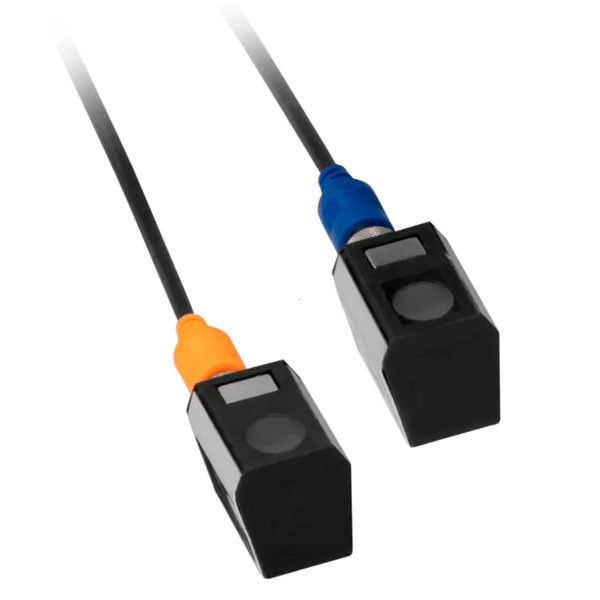

• Graphical assistance for correct sensor installation.

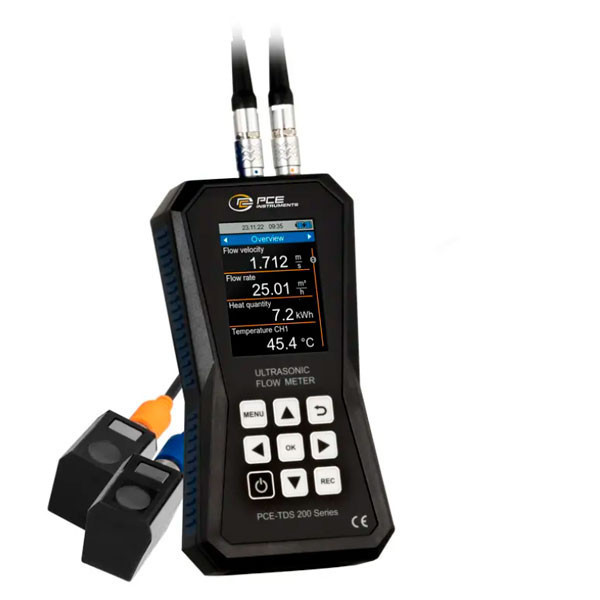

• Displays flow velocity, flow rate and volume.
• Compatible with multiple liquid media and many pipe materials.

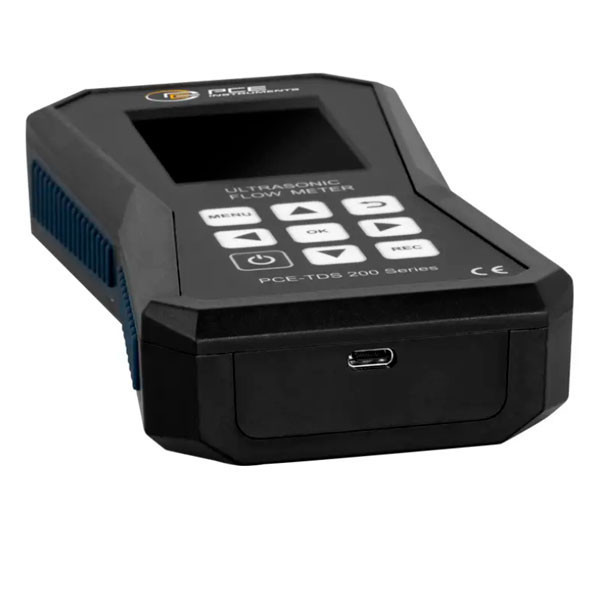

• USB-C interface for data transfer and charging.
• Optional software for analysis, export and reporting.
• Optional ISO or DAkkS calibration certificate.

Recommended applications

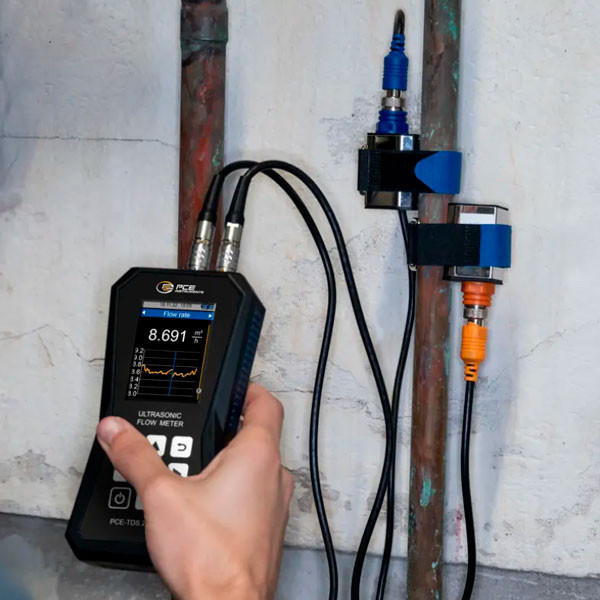

The PCE-TDS 200 S is ideal for portable flow measurement in installations where physical intervention in the pipe must be avoided. It is especially suitable for:

• Maintenance and diagnostics in hydraulic networks.
• Verification of heating systems and thermal circuits.
• Flow audits in industrial installations.
• Temporary measurement in processes without service interruption.
• Commissioning and validation of piping systems.
• Monitoring of consumption, volume and hydraulic performance.

Technical and functional advantages

One of the main strengths of the PCE-TDS 200 S is the combination of portability, accuracy and advanced data logging. The installation guidance system reduces sensor positioning errors and improves confidence in the measurement, while the broad compatibility with media, pipe materials and inner linings makes the instrument highly versatile in the field.

In addition to instant measurement, the device supports a more analytical workflow thanks to its internal memory, optional software and data export functions. For maintenance technicians, engineers, auditors and installers, this means more control, better traceability and more confident technical decisions.
