Ultrasonic Sensors for DN 50 ... 700 PCE-TDS 200 M SENSOR

Reference: PCE-TDS 200 M SENSOR

Condition: New product

The PCE-TDS 200 M SENSOR is an ultrasonic sensor set developed for medium-diameter pipes, making it the ideal choice for flow measurements in installations ranging from DN 50 to 700 or 57 to 720 mm. It is a technical accessory designed to extend the versatility of the measurement system and adapt the instrument to new pipe sizes.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Ultrasonic sensor set for medium-diameter pipes

PCE-TDS 200 M SENSOR Ultrasonic Sensors for DN 50 ... 700

Reference: PCE-TDS 200 M SENSOR

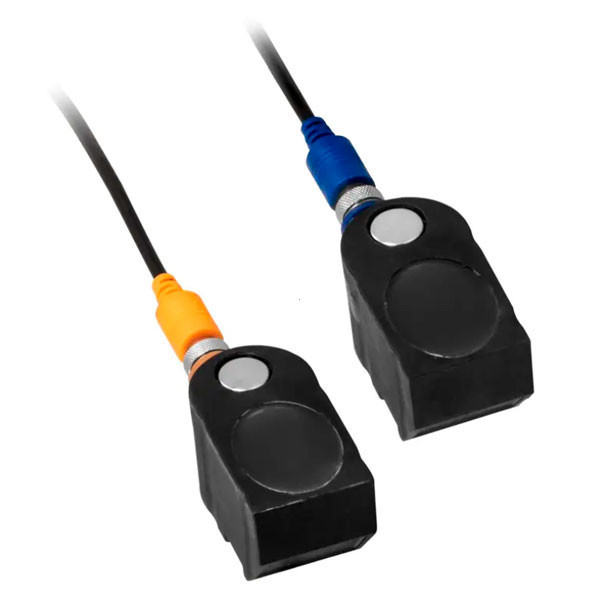

Pair of sensors for ultrasonic flow meters, designed for pipes from DN 50 to 700, with integrated magnets for installation on ferrous metal pipes and alternative mounting using Velcro straps.

DN 50 ... 700 57 ... 720 mm -30 ... 160 °C Magnetic mounting Velcro

Request a quote View technical specification

The sensors feature integrated magnets, allowing easy mounting on ferrous metal pipes for fast, stable and practical installation. When needed, they can also be fitted using Velcro straps, providing more flexibility in different working conditions.

With a fluid temperature range from -30 to 160 °C, this sensor pair is suitable for demanding industrial, thermal and hydraulic applications. It is an excellent solution for users who need to work with larger pipe sizes without compromising measurement compatibility or reliability.

Important note: if you want to order an additional sensor set, it will be necessary to send the flow meter to our facilities so that the new sensor set can be adjusted to the instrument and ensure accurate and reliable measurements.

Why choose the PCE-TDS 200 M SENSOR?

Because it provides a practical way to extend the application range of the ultrasonic flow meter for medium-sized pipes, with simple mounting, broad compatibility and dependable performance in demanding technical environments.

Ideal for medium-sized pipes from DN 50 to 700
Fast installation with magnets or Velcro
Well suited for industrial and hydraulic applications
Practical solution to expand system versatility

Key benefits

Sensor set for medium-diameter pipes.
DN 50 ... 700 / 57 ... 720 mm range.
Integrated magnets for mounting on ferrous metal pipes.
Alternative mounting with Velcro straps.
Suitable for fluid temperatures from -30 to 160 °C.
Practical solution to expand system measurement capability.

Recommended applications

The PCE-TDS 200 M SENSOR is recommended for applications where flow measurement is required on medium-sized pipes using sensors adapted to that range. It is especially suitable for:

Medium-sized hydraulic installations
Thermal systems and industrial circuits
Field maintenance and diagnostic applications
Flow verification on ferrous metal pipes
Adapting ultrasonic flow meters to new pipe diameters

Technical and functional advantages

One of the main advantages of this sensor set is its ease of installation, thanks to the integrated magnets. This helps reduce setup time on ferrous metal pipes and improves stability during measurement.

In addition, the option to mount the sensors using Velcro increases application flexibility. Combined with the broad diameter range and temperature resistance up to 160 °C, the PCE-TDS 200 M SENSOR is a highly useful solution for users who need adaptability, speed and technical compatibility.

Technical specifications - PCE-TDS 200 M SENSOR

Specification	Value
Product identification
Model / Reference	PCE-TDS 200 M SENSOR
Product type	Ultrasonic sensor set
Pipe compatibility
Pipe diameter	DN 50 ... 700
Range in millimetres	57 ... 720 mm
Operating conditions
Fluid temperature	-30 ... 160 °C
Mounting	Integrated magnets and Velcro straps
Dimensions
Dimensions	70 x 40 x 40 mm

Delivery contents

1 x Ultrasonic sensor set for pipes DN 50 ... 700

FAQ - Frequently asked questions

What is the PCE-TDS 200 M SENSOR used for?

It is used as an ultrasonic sensor set for measurements on medium-diameter pipes, allowing the system to be adapted to pipes from DN 50 to 700.

How are the sensors mounted?

The sensors feature integrated magnets for installation on ferrous metal pipes and can also be mounted using Velcro straps.

Which diameter range does it support?

This sensor set is suitable for pipes from DN 50 ... 700, equivalent to approximately 57 ... 720 mm.

What is the maximum fluid temperature?

The sensors support a fluid temperature from -30 to 160 °C, making them suitable for a wide range of industrial and thermal applications.

Can additional sensor sets be ordered separately?

Yes, but to ensure accurate measurements, it is necessary to send the flow meter to our facilities so that the new sensor set can be adjusted to the instrument.

Request a quote

Need additional sensors for medium-diameter pipes? Request a quote for the PCE-TDS 200 M SENSOR and adapt your measurement system to new applications with full technical confidence.
