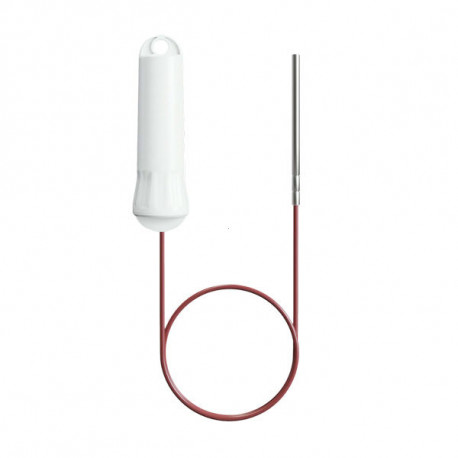

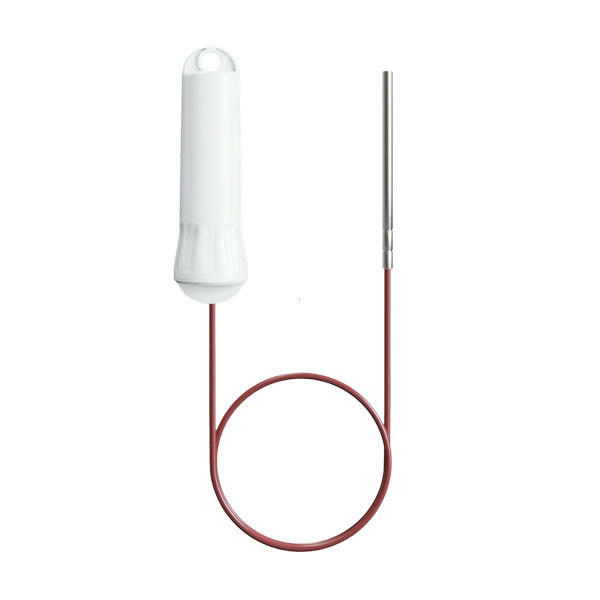

Temperature Sensor Aranet PT100 TDSPT306.050

Reference: TDSPT306.050

Condition: New product

Temperature Sensor

The Aranet PT100 is a high-accuracy Class A platinum resistance thermometer designed to monitor air, liquid, and solid surface temperatures. Built for demanding industrial environments, this sensor delivers reliable performance, robust construction, and effortless wireless connectivity to Aranet PRO systems.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Main Advantages

Class A accuracy ensures precise and stable temperature measurements.
IP68 protection guarantees superior durability in harsh environments.
Wide temperature range from -50 °C up to +180 °C.
Wireless transmission via Sub-GHz ISM band with up to 3 km line-of-sight range.
Easy installation – includes AA battery and hanging string.

Typical Applications

The Aranet PT100 is ideal for temperature monitoring in:

Industrial and manufacturing processes
Laboratory and storage facilities
HVAC and refrigeration systems
Food and pharmaceutical environments

Technical Specifications

Feature	Specification
Temperature Measurement Performance
Range	-50 °C to +180 °C
Resolution	0.1 °C
Accuracy at 0 °C	±0.3 °C
Long-term drift	None
Time constant τ	45 s
Response time (5τ)	3.75 min
Temperature Probe
Probe material	Stainless steel
Cable insulation	Silicone
Probe dimensions	6 × 100 mm
Cable length	5 m
Transmitter Specifications
Ingress protection	IP68
Operating temperature	-40 °C to +60 °C
Dimensions	35 × 120 mm
Weight (incl. battery)	100 g
Housing material	ASA plastic
Power supply	1 × AA battery (included)
Aranet Radio Parameters
Line-of-sight range	Up to 3 km
Transmit power	14 dBm (25 mW)
Transmission interval	1, 2, 5 or 10 min
Data protection	XXTEA encryption
Battery Lifetime
1 min interval	1.3 years (alkaline) / 1.7 years (lithium)
2 min interval	2.4 years (alkaline) / 3.2 years (lithium)
5 min interval	5.2 years (alkaline) / 7.3 years (lithium)
10 min interval	8.4 years (alkaline) / 12 years (lithium)
Compliance
CE • FCC (USA) • ISED (Canada)
