12 channel thermocouple data logger for temperature TC 2012 Dostmann 5005-2012

Reference: 5005-2012

Condition: New product

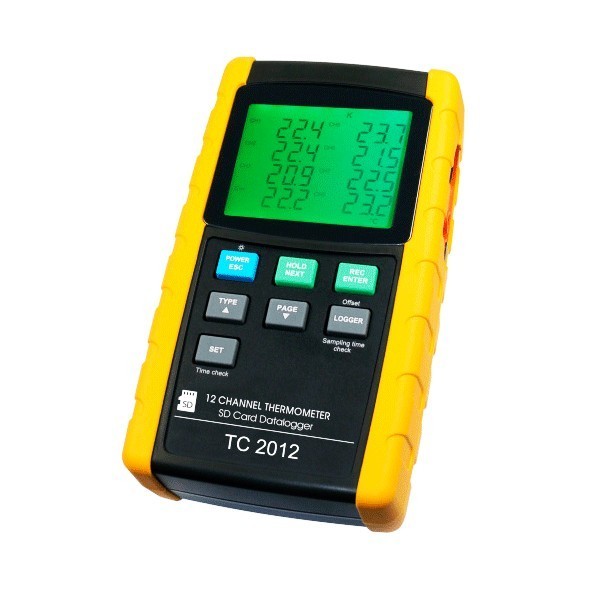

12 Channel Temperature Data Logger with SD Card | Professional Recorder

The 12-channel Temperature Data Logger is a professional-grade solution designed for precise multi-point temperature monitoring.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Descrisão

Ideal for industrial, laboratory, and process control applications, this device enables continuous data logging directly to an SD card without requiring additional software or paper recording systems.

Key Benefits

Simultaneous monitoring of up to 12 temperature channels
Real-time data logging with full timestamp (date & time)
Direct Excel export – no software required

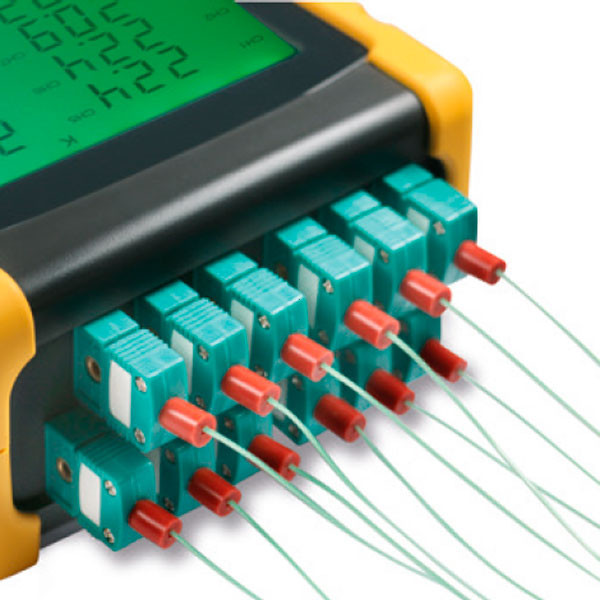

Compatible with multiple thermocouple types (K, J, T, E, R, S)
High accuracy with automatic temperature compensation
Large LCD display with backlight for easy reading

Applications

Perfect for industrial environments, food processing, HVAC systems, laboratories, research, and quality control processes where precise temperature tracking is essential.

Product Advantages

Adjustable sampling interval from 1 to 3600 seconds
Expandable SD memory up to 16GB
MAX/MIN recording function for data analysis
Programmable loop recording (daily scheduling)
Durable and compact industrial design

Technical Specifications

Parameter	Specification
Channels	12 channels (CH1 to CH12)
Sensor Types	Thermocouples K, J, T, E, R, S
Measurement Range (Type K)	-100 to 1300 °C
Resolution	0.1°C / 1°C
Datalogger	1 to 3600 seconds (auto/manual)
Memory	SD card (1GB to 16GB)
Data Output	CSV via SD / RS232 / USB
Display	Large LCD (82 x 61 mm) with backlight
Power Supply	8x AA batteries or 9V adapter
Dimensions	225 x 125 x 64 mm
Weight	~0.795 kg
