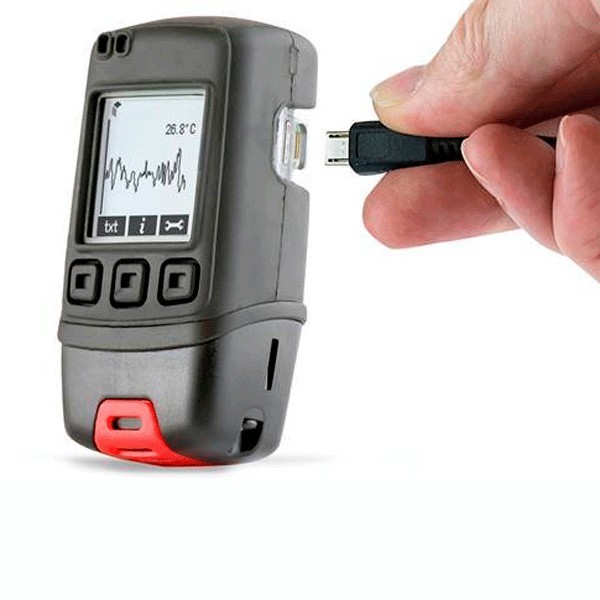

Temperature Data Logger Corintech - Lascar EL-GFX-1

The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for detailed analysis.

The data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. This menu
provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger
without the need to connect the data logger to the host-PC. Users can reset the maximum / minimum reading using the on-screen
menu. This introduces an ‘event marker’ into the data which can later be viewed in the graphing software (‘Mark Events’ option)
and the data file after download.

The data logger is supplied complete with two lithium metal batteries, which can typically allow logging for up to 1 year and is
protected against moisture to IP67 when the battery case is securely fitted. Can be powered from USB.

EL-WIN-USB Software

Corintech - Lascar’s EasyLog control software is available as a free download from www.easylogusb.com. Easy to install and use, the control software is compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10. The software is used to set up the logger, download, graph and annotate data or export in Excel, PDF and jpeg formats.

The software allows the following parameters to be configured:

• Logger name
• Measurement parameter (°C or °F)
• Logging rate (selectable between 10 seconds and 1 hour)
• Display off, on for 30 seconds after button press, or permanently on
• High and low alarms
• Disable or enable LEDs and sounder with delayed activation
• Immediate, delayed, triggered and push-to-start logging

Key Features:

• Measurement range -30 to +80°C (-22 to +176°F)
• Accuracy ±0.2°C (±0.4°F) typical
• Resolution 0.1°C
• Operating temperature -30 to +80°C (-22 to 176°F)
• Logging rate selectable between 10 seconds and 1 hour
• Settable alarm thresholds
• IP67 protection
• Stores over 250,000 readings
• EasyLog software available as a free download
• On-screen graphing and menu options to start, stop,review and restart the logger in the field
• Immediate, delayed, push button or level triggered start mode
• User-programmable audible alarm thresholds with highly visible confidence/alarm LEDs
