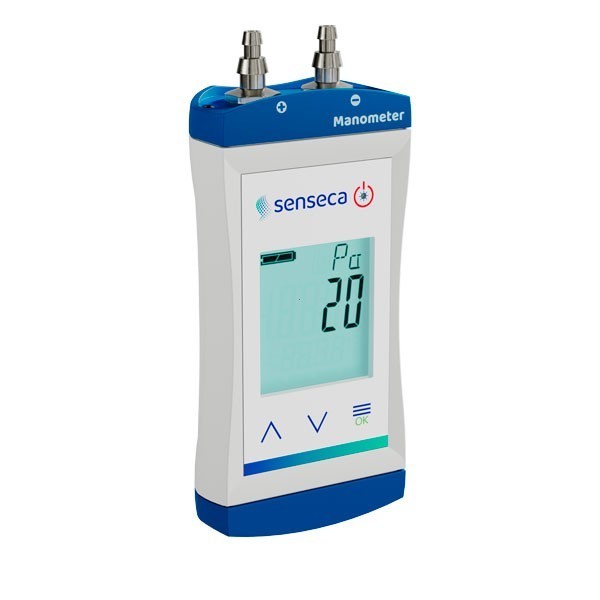

Senseca - Fine Manometer Senseca ECO210-3-UT

At the core of each device lies a high-performance sensor, a top-tier component that sets a new standard within this instrument class.

The ECO Line variants combine outstanding reliability, speed, and precision in a compact, water-resistant housing, making these instruments the ideal solution for both industrial applications and skilled trades. Proudly Made in Germany, they embody engineering excellence.

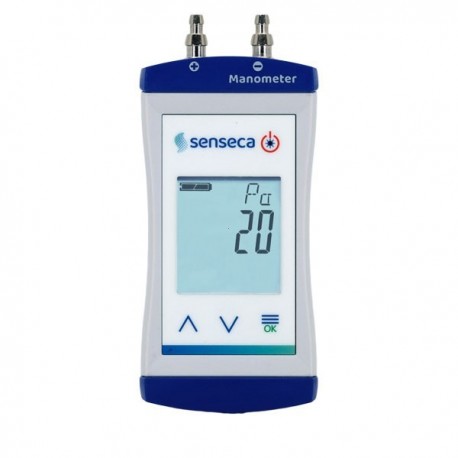

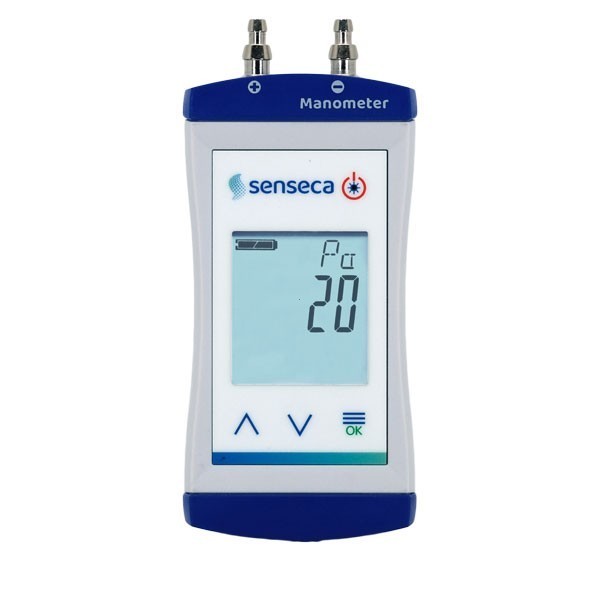

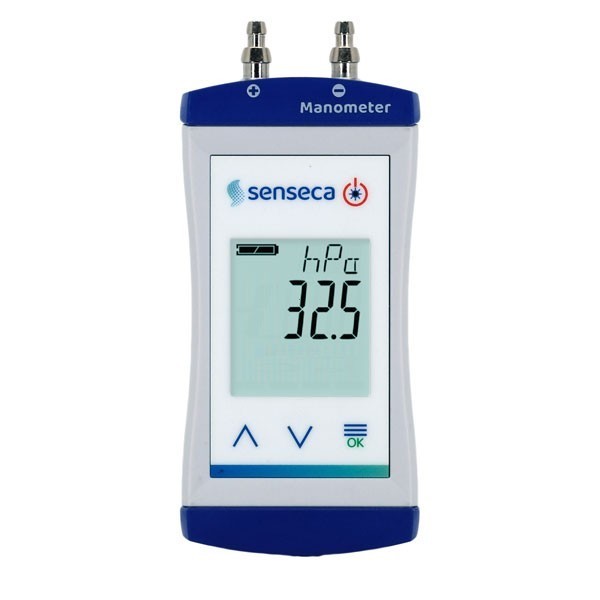

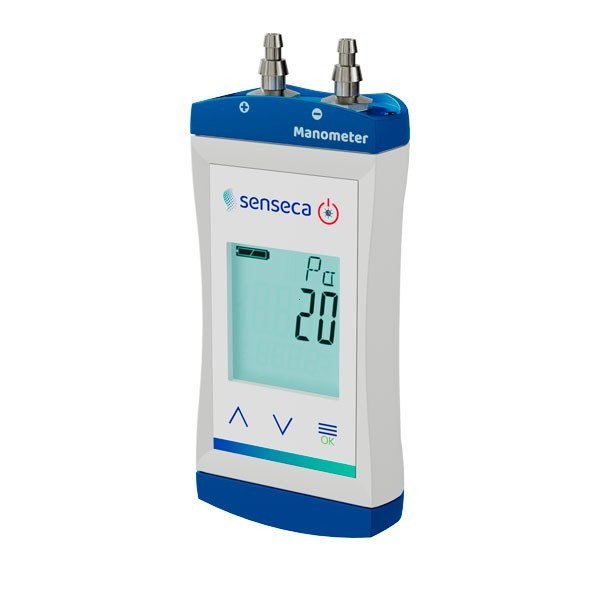

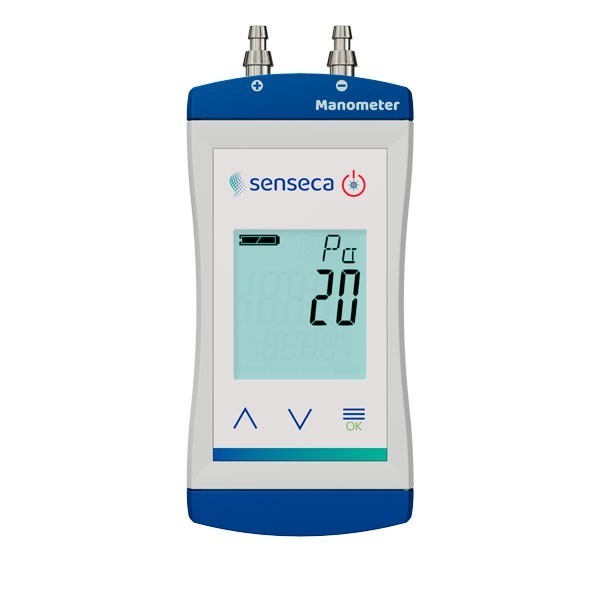

High-precision differential pressure manometer for Heating, Ventilation and Air Conditioning (HVAC) applications

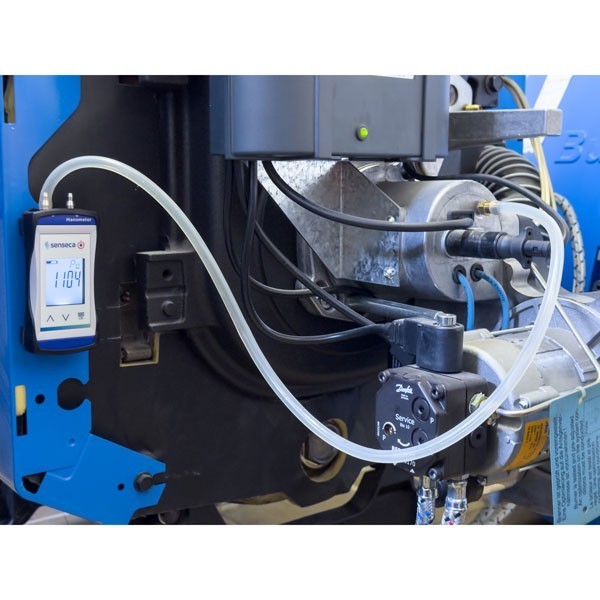

With a measurement range of up to 200 hPa (mbar) / 20 kPa and a resolution as fine as 0.1 Pascal in optimized fine pressure mode, the ECO 210-3 is perfectly suited for key applications such as gas pressure measurement up to 150 hPa (mbar) and burner adjustments — all in one versatile instrument.

Its high precision enables accurate dynamic pressure adjustments and reliable draft measurements. Moreover, readings are unaffected by the instrument’s orientation — a feature that outperforms many competitors, including significantly more expensive models.

NEW: UNIVERSAL-PORTS – Flexible connections for any need
Thanks to the innovative UNIVERSAL-PORTS system, the ECO 210-5 allows connection to a wide range of pressure systems, including screw connections, Quick-Connect and Push-Pull.
The user can select the most suitable connection solution for their application, without the need to modify the equipment.
Additionally, the enhanced resolution of 0.1 Pascal ensures exceptional accuracy at the most demanding pressure settings.

ECO 210-3 – The smart choice for professionals who don’t compromise on quality, reliability and flexibility.

Key Features:

✅ Standard measuring range:

• -200.0 to +200.0 hPa (mbar)
• -2.900 to +2.900 PSI
• -150.0 to +150.0 mmHg (Torr)

✅ Fine Measuring Range:

• -2000 to +200.0 Pa
• -20.00 to +20.00 hPa (mbar)
• -20.00 to +20.00 mmHg (Torr)

✅ Typical accuracy at 25°C: ± 0.1% full scale
✅ Max. accuracy ± 1% Full scale
✅ Max. overload: ± 1700 hPa
✅ Display unit: hPa, mbar, PSI, mmHg (Torr)
✅ Standard functions: Minimum/Maximum/Hold function (Reading lock, auto power off function if activated)
✅ Modern and functional design - pocket size
✅ Excellent price/performance ratio
✅ 3-line backlit LCD display, additional symbols, illuminated (white, adjustable illumination time), suspended display when pressing a key
✅ Measurement: Differential Pressure
✅ Waterproof (Unique IP67 pressure ports)
✅ Robust

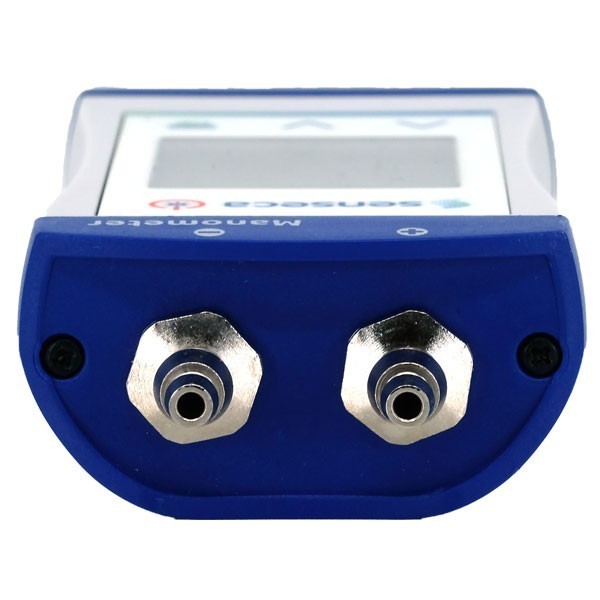

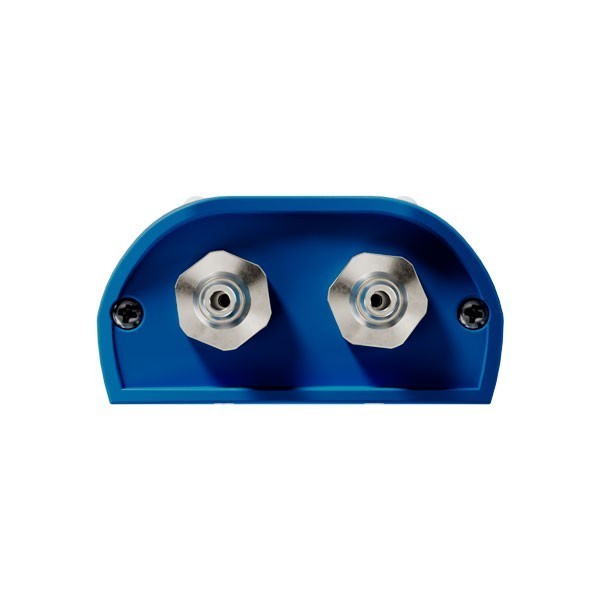

✅ Easy-to-use universal pressure port with interchangeable connections
✅ High resolution and accuracy
✅ High speed of measurement
✅ Calibration/Traceable Options
✅ Made in Germany
✅ Measurement time: Slow function: 2.5 measurements/second
✅ Fast function: 25 measurements/second

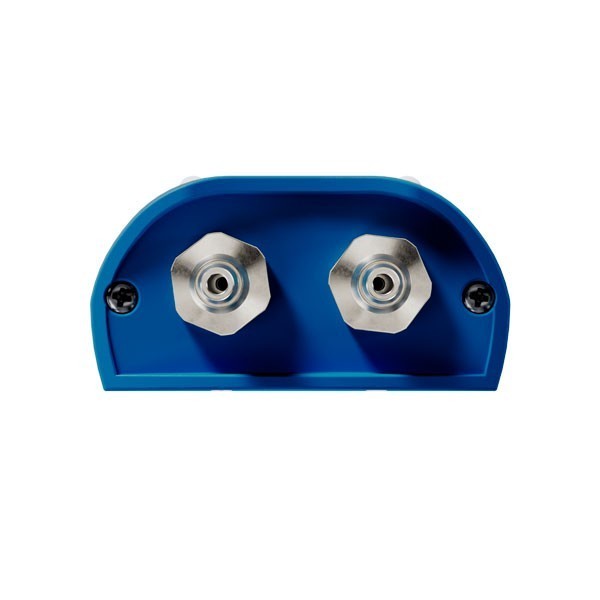

✅ Connection: 2x G1/8-inch port incl. connection for tube 6x1 mm (4 mm inner) or 8x1 mm (6 mm inner)
