Flexible Clamp Meter 3000 A PCE-CM 40

PCE-CM 40

New product

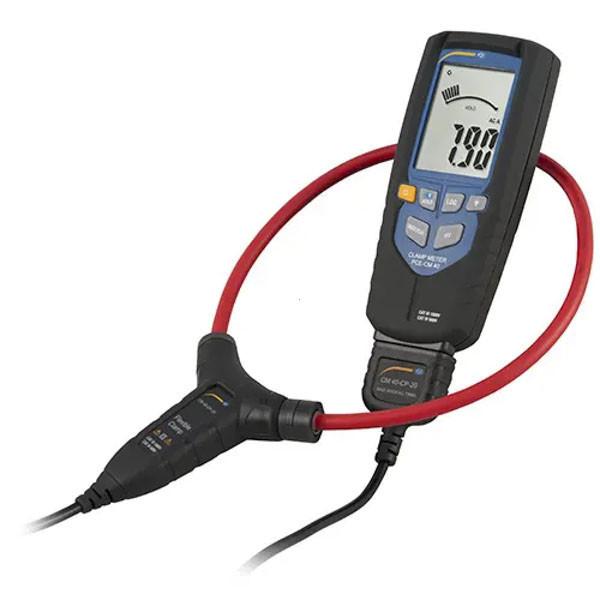

The PCE-CM 40 flexible clamp meter is designed for professional measurement of AC currents up to 3000 A, even on large conductors and in tight spaces. Using a Rogowski coil with a 170 mm diameter, it delivers reliable TRMS readings and includes an Inrush function to capture starting currents. It also measures frequency from 50 to 400 Hz.

More details

196,90€ tax excl.

Add to wishlist

More info

Key benefits & differentiators

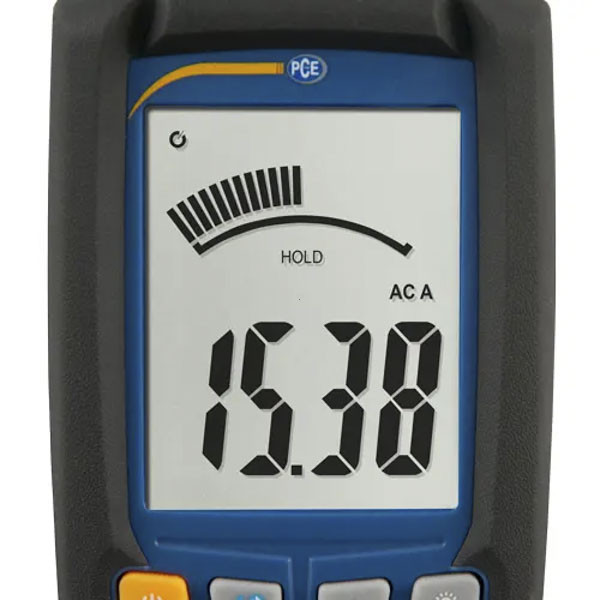

The backlit LCD enables fast on-site readings, while the built-in memory supports value logging during troubleshooting and maintenance tasks.

  • High-current measurement up to 3000 A AC with a Rogowski coil: ideal for industrial environments.
  • Flexible loop fits where standard rigid clamps cannot—around busbars, thick cables and crowded panels.
  • TRMS measurement for dependable AC readings in real-world electrical loads.
  • Inrush (starting current) for diagnosing motors, compressors, UPS, HVAC systems and equipment with startup peaks.
  • Frequency measurement (50–400 Hz) for quick verification in drives, generators and power systems.
  • Backlit display + auto power-off for convenient field use and longer battery life.

Typical applications

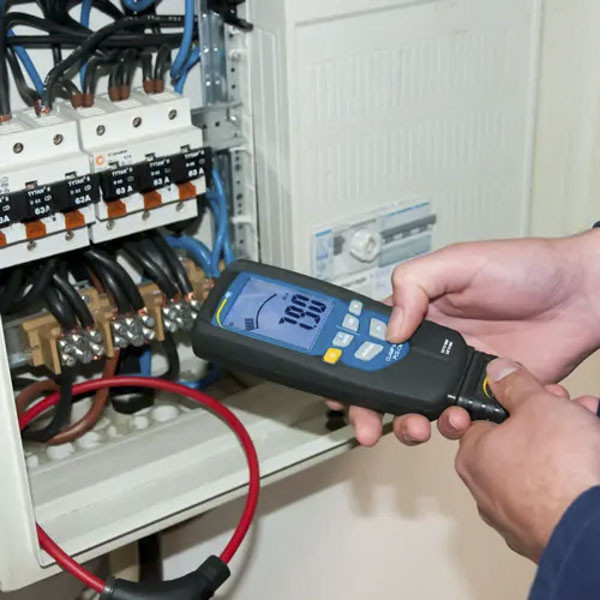

Perfect for electrical maintenance, industrial installations, machine current monitoring, inrush diagnostics, and measurements on large cross-section conductors. The flexible Rogowski coil allows quick placement around the conductor for efficient testing.

Main features

  • Up to 3000 A AC
  • Backlit LCD
  • Inrush function
  • Frequency measurement
  • Easy operation
  • Memory for value logging

Technical Specifications – PCE-CM 40

Technical Specification
AC Current (TRMS)30 / 300 / 3000 A (50 … 400 Hz)
Resolution0.01 A / 0.1 A / 1 A
Accuracy±(3% of reading + 8 d) / ±(3% of reading + 5 d)
Inrush FunctionYes (starting current measurement)
Frequency Measurement50 … 400 Hz
Display3000-count backlit LCD
Rogowski Coil Diameter170 mm x 5 mm
Overvoltage CategoryCAT III 1000 V / CAT IV 600 V
Safety StandardsEN61010-1, EN61010-2-032, EN61326-1
Power Supply2 x 1.5 V AAA batteries
Operating Conditions5 … 40°C / max. 80% RH, non-condensing
Auto Power-OffYes, after 15 minutes of inactivity

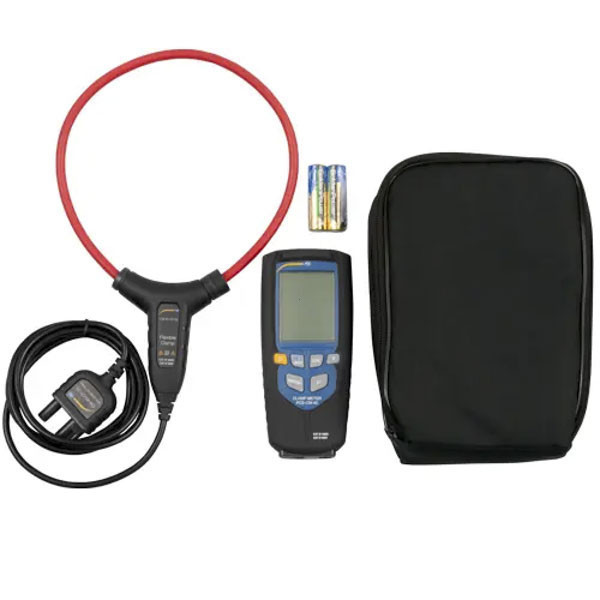

Package contents

  • 1 x PCE-CM 40 flexible clamp meter (control unit + Rogowski coil)
  • 2 x 1.5 V AAA batteries
  • 1 x instruction manual
