Clamp Meter PCE-DC 41

PCE-DC 41

New product

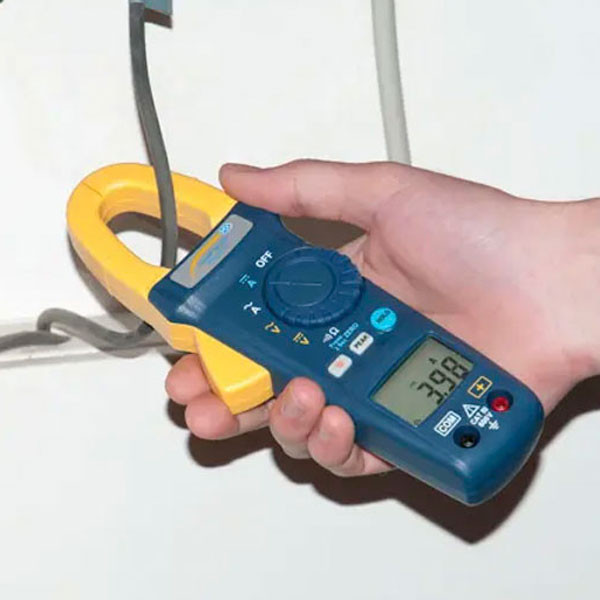

The PCE-DC 41 digital clamp meter is built for fast, reliable electrical troubleshooting and maintenance. It measures DC/AC voltage up to 600 V, DC/AC current up to 600 A, and resistance up to 1000 Ω. Measurements can be performed using the included test leads or contact-free via the clamp mechanism—perfect for checking loads and currents without interrupting the circuit.

More details

211,90€ tax excl.

Add to wishlist

More info

Overview

Readings are clear on the 4-digit backlit LCD, even in low-light environments. With Peak and Data HOLD, you can capture transient values and freeze the measurement on-screen for easier reporting and diagnostics. Its compact form factor supports one-handed operation, while auto power-off helps extend battery life (approx. 50 hours).

Key benefits & typical uses

  • Safe current measurement with a max jaw opening of Ø 25 mm—no circuit interruption.
  • Peak capture + HOLD for more dependable fault finding and stable readouts.
  • Ideal for electrical maintenance, installation work, field service, HVAC, and industrial environments.
  • Mobile-ready: compact body, one-hand operation, and included carrying pouch.
  • Battery saving with auto shutoff after 30 minutes of inactivity.

Features

  • 4-digit LCD display
  • Auto power-off
  • Multi-function: DC/AC voltage, DC/AC current, resistance, continuity test
  • Up to 50 hours battery life
  • Data HOLD
  • Peak function
  • Zeroing function
  • Backlight

Technical specifications

Specifications table
DC Voltage
Measuring range600 V
Resolution0.1 V
Accuracy± 1% + 2 digits
Input impedance1 MΩ (600 V)
DC Voltage (Peak)
Measuring range600 V
Resolution0.1 V
Accuracy± 1.5% + 8 digits
Input impedance1 MΩ
AC Voltage
Measuring range600 V
Resolution0.1 V
Accuracy± 1.2% ± 5 digits (50 ... 500 Hz)
Input impedance1 MΩ
AC Voltage (Peak)
Measuring range600 V
Resolution0.1 V
Accuracy± 1.7% + 10 digits
Input impedance1 MΩ
DC Current
Measuring range60 A / 600 A
Resolution0.01 A / 0.1 A
Accuracy± 2% + 5 digits
DC Current (Peak)
Measuring range600 A
Resolution0.1 A
Accuracy± 2.5% + 10 digits
AC Current
Measuring range60 A / 600 A
Resolution0.01 A / 0.1 A
Accuracy± 2.5% + 10 digits
AC Current (Peak)
Measuring range600 A
Resolution0.1 A
Accuracy± 2.5% + 10 digits
Resistance
Measuring range1000 Ω
Resolution0.1 Ω
Accuracy± 1% + 2 digits
Continuity
Range (Buzzer function)< 40 Ω
General technical data
Display type4-digit LCD
Display size1.6 in
Max indicated value6200
Sampling rate3 times/s
Power supply2 x 1.5 V AAA batteries
Battery lifeApprox. 50 h (without buzzer and without backlight)
Auto power-offAfter 30 min. of inactivity
Operating conditions0 ... +40 °C; < 70% R.H.
Storage conditions-10 ... +60 °C; < 80% R.H.
Max clamp openingØ 25 mm
Dimensions210 x 62 x 36 mm
Weight273 g (incl. batteries)

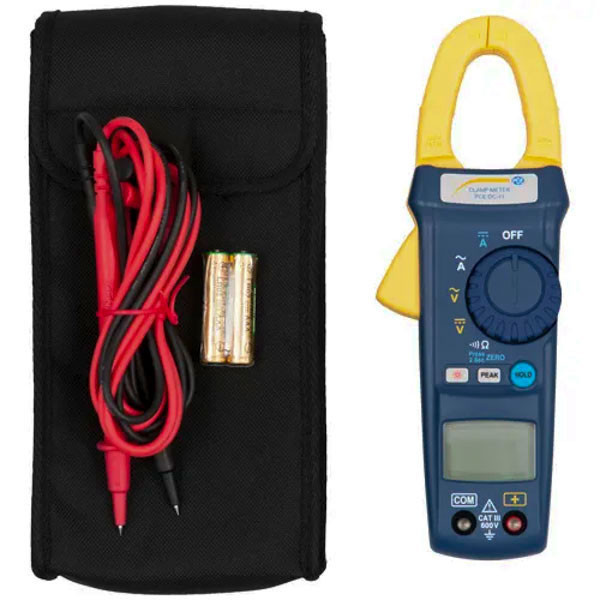

Package contents

  • 1 x PCE-DC 41 clamp meter
  • 1 x set of test leads
  • 2 x 1.5 V AAA batteries
  • 1 x carrying pouch
  • 1 x instruction manual
