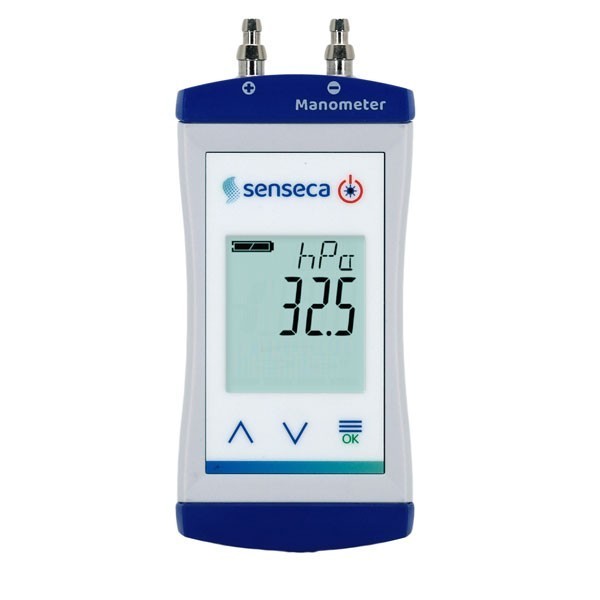

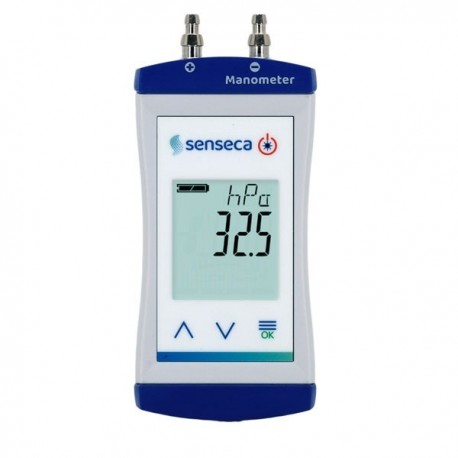

Manometer Senseca ECO210-5-UT

ECO 210-5 – Precision and Versatility for High Performance Measurements

The ECO 210-5, a complementary device to the high-resolution ECO 210-3 model, is the excellent solution for measuring differential pressures greater than ±200 hPa (mbar).
Capable of measuring up to ±2,000 hPa with precision and high resolution — reaching down to 0.01 hPa or 0.1 Pascal in optimized fine pressure mode — this equipment stands out for its superior performance and reliability.

NEW: UNIVERSAL-PORTS – Flexible connections for any need
Thanks to the innovative UNIVERSAL-PORTS system, the ECO 210-5 allows connection to a wide range of pressure systems, including screw connections, Quick-Connect and Push-Pull.
The user can select the most suitable connection solution for their application, without the need to modify the equipment.
Additionally, the enhanced resolution of 0.1 Pascal ensures exceptional accuracy at the most demanding pressure settings.

ECO 210-5 – The smart choice for professionals who don’t compromise on quality, reliability and flexibility.

Key Features:

✅ Standard measuring range:

• -2000 to +2000 hPa (mbar)
• -2,000 to +2,000 bar
• -29.00 to +29.00 PSI
• -1500 to +1500 mmHg (Torr)

✅ Fine Measuring Range:

• -200.0 to +200.0 hPa (mbar)
• -200.0 to +200.0 mmHg (Torr)

✅ Typical accuracy at 25°C: ± 0.1% full scale
✅ Max. accuracy: ± 1% Full scale
✅ Max. overload: ± 3100 hPa
✅ Display unit: hPa, mbar, PSI, bar, mmHg (Torr)
✅ Standard functions: Minimum/Maximum/Hold function (Reading lock, auto power off function if activated)
✅ Modern and functional design - pocket size
✅ Excellent price/performance ratio
✅ 3-line backlit LCD display, additional symbols, illuminated (white, adjustable illumination time), suspended display when pressing a key
✅ Measurement: Differential Pressure
✅ Waterproof (Unique IP67 pressure ports)
✅ Robust
✅ Easy-to-use universal pressure port with interchangeable connections
✅ High resolution and accuracy
✅ High speed of measurement
✅ Calibration/Traceable Options
✅ Made in Germany
✅ Measurement time: Slow function: 2.5 measurements/second
✅ Fast function: 25 measurements/second

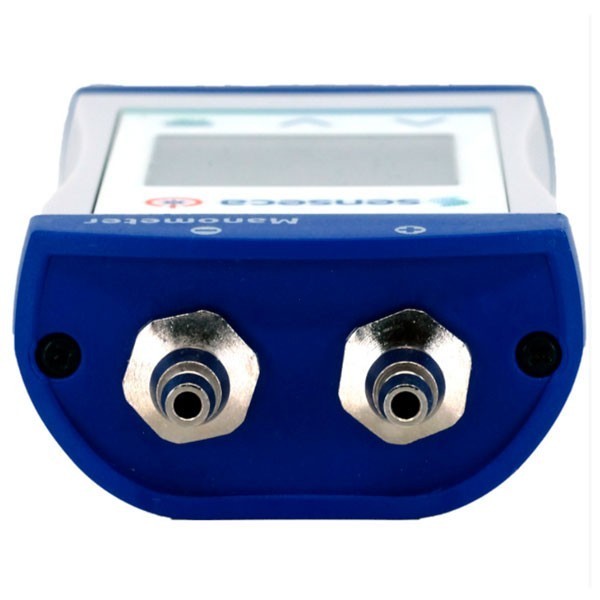

✅ Connection: 2x G1/8-inch port incl. connection for tube 6x1 mm (4 mm inner) or 8x1 mm (6 mm inner)
