Description

The PCE-FM 200 is a portable digital force gauge designed for accurate tension and compression measurements up to 200 N. It is an excellent solution for quality control, laboratory testing, incoming goods inspection and production environments where reliable force measurement is essential.

This force gauge measures in N, kg and lb, includes a USB interface and analysis software for data transfer, and comes with multiple adapters for different surfaces and test requirements. With fast screen response, robust construction and the option to mount it on a test stand, the PCE-FM 200 delivers the flexibility and repeatability needed for professional force testing applications.

Key benefits

• Accurate tension and compression testing up to 200 N
• Measurement units in N, kg and lb for international usability
• USB connectivity and analysis software for data transfer and evaluation
• Supplied with interchangeable adapters for a wide range of test setups
• Rear mounting thread for integration on a test stand
• Rechargeable battery and carry case for mobile professional use
• Fast LCD response for efficient day-to-day testing

Recommended applications

The PCE-FM 200 is ideal for laboratory force testing, component verification, industrial quality control, assembly testing, incoming material inspection and measurements in hard-to-reach areas thanks to the included 65 mm extension rod.

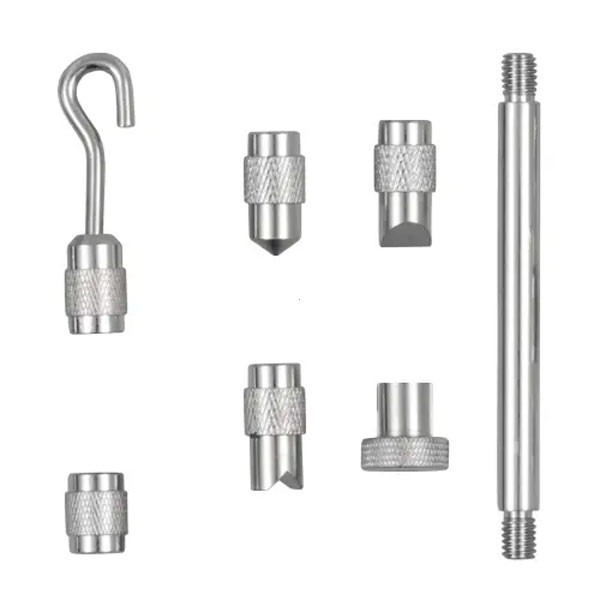

The included adapters — flat head, hook, pointed tip, blade and V-head — allow the instrument to be adapted to different geometries and surface characteristics. The hook adapter is especially suitable for tension measurements.

Why choose the PCE-FM 200?

Compared with more limited solutions, the PCE-FM 200 offers an excellent balance of accuracy, versatility and test integration capability. The option to mount the device on a test stand makes it particularly valuable for users who need repeatable results in both tension and compression testing.

Its internal load cell is manufactured from high-quality materials to ensure long service life, safety and reliable performance. It is a dependable choice for professionals looking for a digital force gauge that combines portability, technical precision and practical ease of use.

Main features

• Includes multiple adapters for different force measurement tasks
• Analysis software available in the download area
• Threaded mounting for use on a test stand

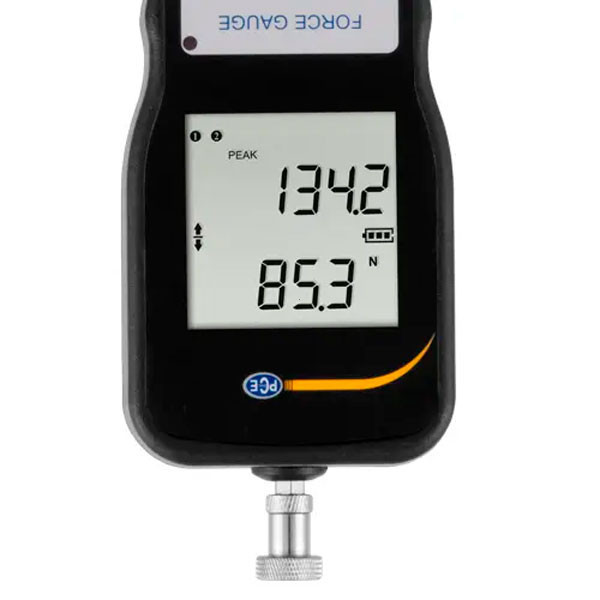

• Peak value measurement
• Rechargeable battery power supply
• Extension rod included

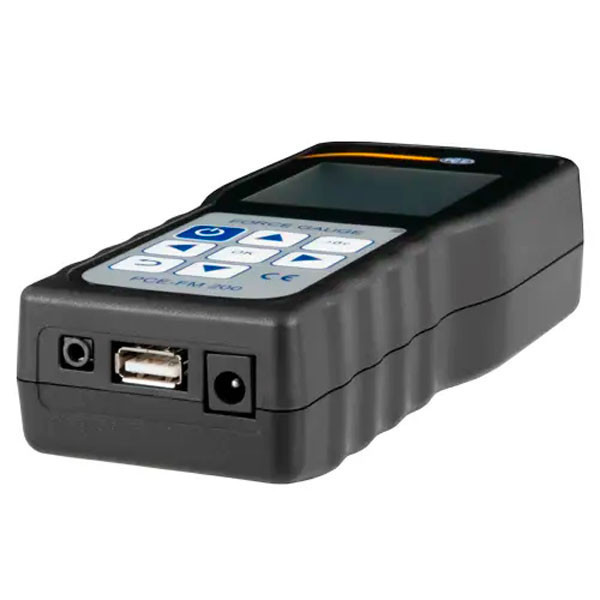

• USB interface
• Fast display response time

Technical specifications

Delivery contents

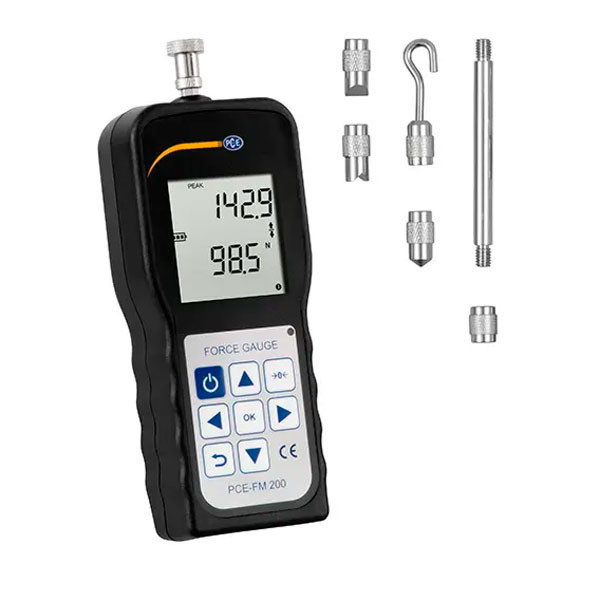

• 1 x PCE-FM 200 Digital Force Gauge
• 1 x Analysis software in the download area
• 1 x Flat head adapter
• 1 x Hook adapter
• 1 x Pointed tip
• 1 x Blade head
• 1 x V-head
• 1 x Extension rod (65 mm)
• 1 x USB cable
• 1 x Charger (240 V)

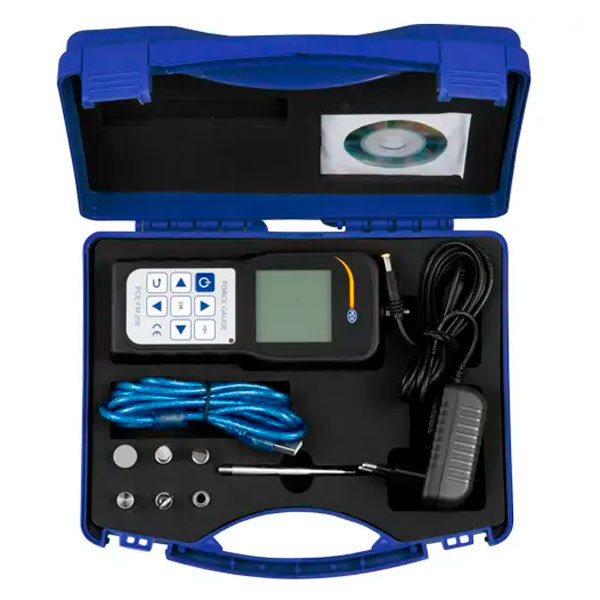

• 1 x Carrying case
• 1 x Instruction manual

FAQ - Frequently asked questions

What is the PCE-FM 200 used for?

The PCE-FM 200 is used for tension and compression force measurements up to 200 N in quality control, laboratory testing, production checks and incoming material inspection.

Which units can the instrument display?

The force gauge measures in N, kg and lb, making it suitable for international testing workflows and different technical requirements.

Does it include software and PC connectivity?

Yes. The PCE-FM 200 features a USB interface and includes analysis software in the download area for data transfer and evaluation.

Which adapters are included?

The instrument is supplied with a flat head adapter, hook adapter, pointed tip, blade head, V-head and a 65 mm extension rod for measurements in hard-to-reach areas.

Can it be mounted on a test stand?

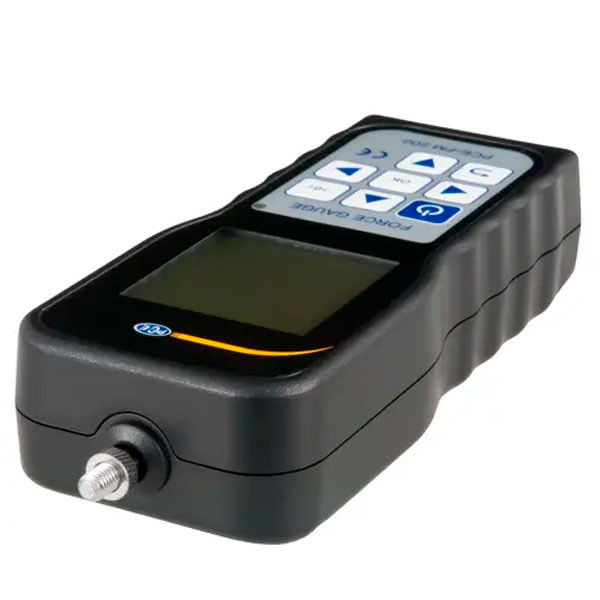

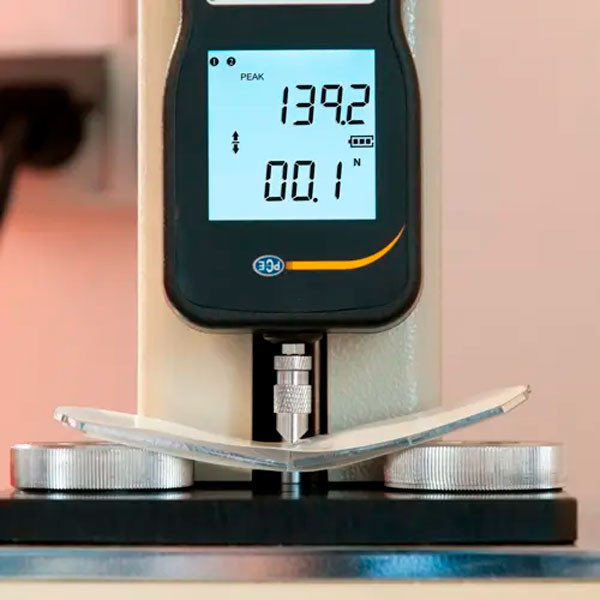

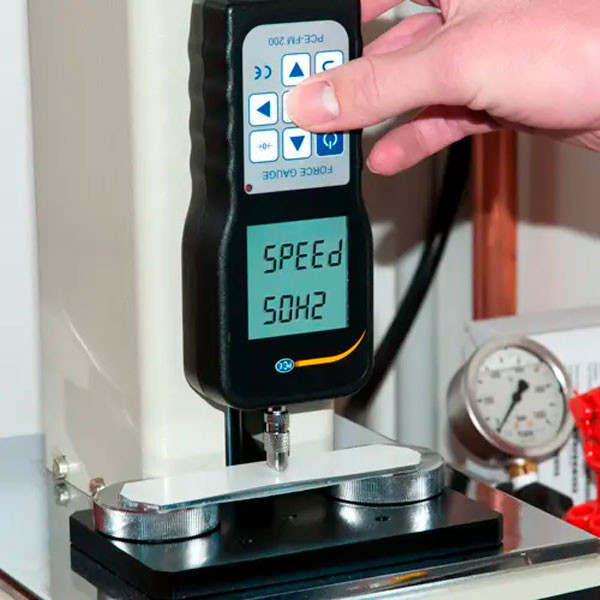

Yes. The force gauge has a rear thread that allows mounting on a test stand, enabling more stable, controlled and repeatable tension and compression tests.

What happens if the instrument is overloaded?

If the overload range is exceeded, the internal load cell may be damaged. For safer operation, it is recommended to choose a model with sufficient measurement reserve for the intended application.
