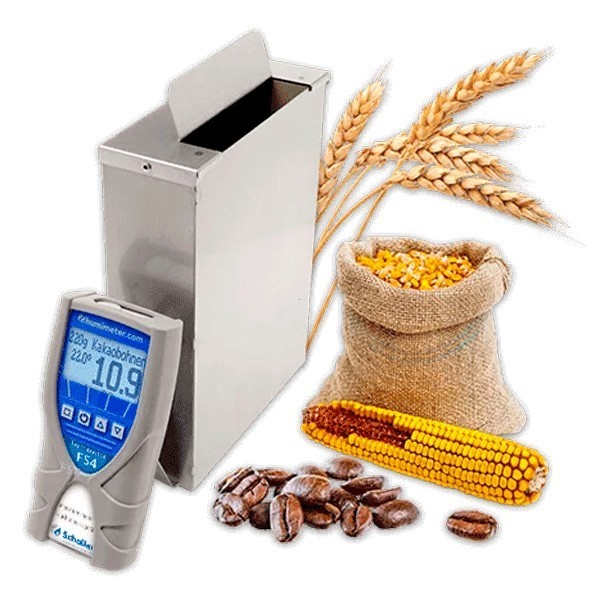

Grain Universal Moisture Meter Scaller Humimeter FS4 11725

Main Features:

Moisture tester for grain, chickpeas, flaxseed, lupins and much more

• Very fast and accurate whole grain measurement
• Large measuring range from 0 to 50% water content
• No sample preparation necessary
• Measurement within seconds
• Integrated USB interface
• Non-destructive measurement
• Capacity for further individual characteristic curves
• Particularly suitable for corn
• Lifetime Support

Areas of Application:

The professional moisture meter is ideal for agriculture, trade, seed breeding, research, laboratories, and the food and feed industries. It is perfectly suited for field use.

The universal moisture meter is ideal for:

• Barley;
• Corn;
• Durum;
• Field peas;
• Oats;
• Peeled spelt;
• Pumpkin seeds;
• Rapeseed;
• Rye;
• Soybeans;
• Runner beans;
• Horse beans;
• Sunflower seeds;
• Jatropha;
• Green coffee;
• roasted coffee;
• Peeled and unpeeled coffee;
• Ground and unground coffee,
• Rice husked;
• Unhusked and brown rice;
• Poppy seeds;
• Sorghum millet;
• Millet;
• Husked buckwheat;
• Flaxseed;
• Chickpeas;
• Lupins;
• Triticale;
• Wheat.

Other varieties are available on request!

The measured values can be saved via the integrated data logger on the grain moisture meter, provided with additional data and retrieved later. You also have the option of using a “hold function”. This allows measured values on the display in the grain moisture meter to be frozen until the next button is pressed.

In order to increase the measurement accuracy and reproducibility of the whole grain grain moisture tester, the measurement is carried out with hectoliter compensation. This is achieved by accurately weighing the sample amount. For this purpose, a scale and a measuring cup are supplied with the grain moisture meter. As a result, different bulk densities have no influence on the measurements. The entire humimeter Grain moisture meter series was calibrated and checked using the calibratable drying method EN-ISO 712.

At the same time, this grain moisture meter also measures the sample temperature, displays it and includes it in the moisture calculation. The temperature range is from 0 °C to 40 °C and can be displayed either in °C or °F.

The calibrated measuring range of our whole grain moisture meter humimeter FS4 ranges from 0% to 50% water content (varietal dependent).

As a further feature, the moisture meter has an integrated USB interface. This interface can be used to connect to a PC. With the "LogMemorizer" software supplied, the values can be read out from the device, edited, provided with additional information, archived, exported and further processed.

Also can at this interface:

• Water content
• sample temperature
• Further information
• special device data

can be output at the interface at the touch of a button and further processed by another PC program, or the data can also be sent directly to the portable thermal printer at the touch of a button (ONLINE function).

As an additional option for this grain moisture meter, we also offer a portable and handy thermal printer. Using this printer, stored data can be printed out on site without a PC. These printouts are also given to the supplier as receipts.

The precise measuring device humimeter FS4 Grain universal moisture meter has a reference characteristic and offers you the option of calibration.

The measuring device is adjusted after calibration to the reference method:

• EN ISO 6540 for corn
• EN ISO 665 for oilseeds
• EN ISO 712 for grain
• EN ISO 24557 for legumes and beans

Benefits:

• Very fast and accurate due to 300 g whole grain measurement
• for a wide range of product types like flaxseed moisture measurement or chickpea water content measurement
• Stainless steel housing
• reduces your drying costs
• Prevent quality losses
• Prevent mold growth
• Prevent infestation with beetles, dust bunnies, moths or mites

Handling and measurement process

In order to be able to guarantee precise measured values ​​in the long term, this leads to humimeter whole grain moisture meter automatically performs a self-calibration after switching on.

Then the relevant characteristic curve for the type of grain to be measured is selected on the device.

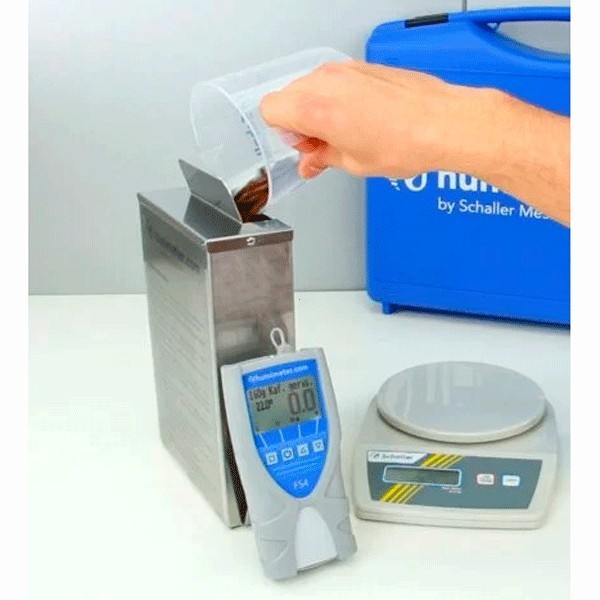

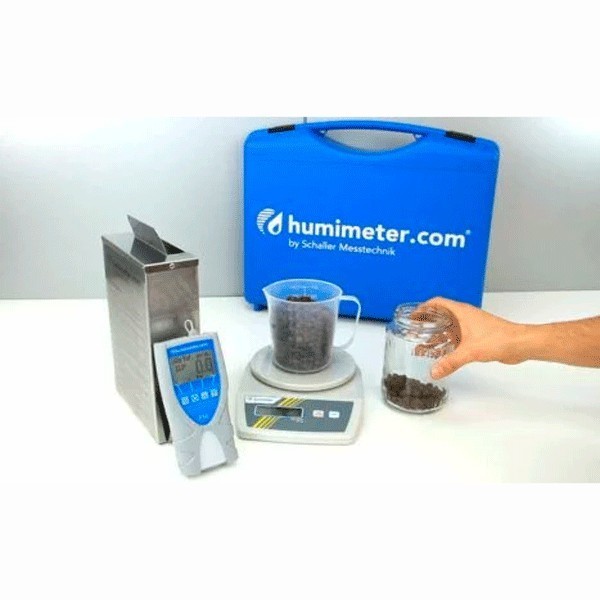

The measuring chamber of the device is then filled with the specified quantity of the respective type of grain. In order to determine the exact amount of grain, the scope of delivery of the humimeter Moisture meter includes a scale and a measuring cup.

The water content can immediately be read off the large, well-lit display of the universal grain moisture meter and saved, edited or printed out via the integrated datalog if required.

• No time-consuming preparation of the sample necessary
• Non-destructive measuring method, whole grain measuring device
