Wireless Solar Wind Meter WeatherHub TFA 30.3307.02

Note 1: Does not include computer or smartphone

Note 2: The images shown are examples in the computer browser or smartphone. These are some examples of the software's presentation capabilities.

Note 3: To use the transmitter a Gateway is required

Gateway

Note 4: You can add the transmitter for temperature and humidity to our following sets:

1 Gateway + 1 T/H Transmitter

1 Gateway + 3 Temperature Transmitter

Key Features:

• Temperature
  • Reading Range -40 to +60°C
  • Sensor Type 10K NTC Thermistor (Integral)
  • Resolution 0.1°C
  • Accuracy:  ±1,0°C
• Humidity
  • reading range: 0 to 99 hr
  • Resolution: 1%
  • EAccuracy: ±4%
  • Type of sensor: Capacitive
• Other technical data
  • Requires WeatherHub gateway (sold separately)
  • Transmission range 100 meter
  • Reading Types: Actual temperature and humidity, Min, Max
  • Temperature display in ºC/ ºF
  • Low battery indicator
  • Table standing or wall mounting
  • Transmission to gateway: every 7 minutes

The WEATHERHUB OBSERVER platform is free of charge and does not require any additional costs or subscription fee, costs will only arise for the required hardware and, if necessary, for the Internet connection

System for the use of the WEATHERHUB OBSERVER web monitoring system, consisting of a professional thermo-hygro transmitter with waterproof cable sensor, gateway, power adapter and LAN cable

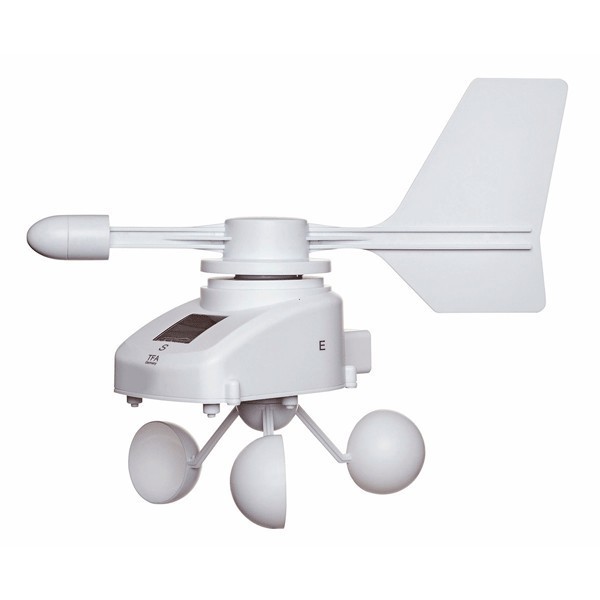

For professional monitoring of the Wind speed, gust and direction. Ideal for laboratories, commerce and industry, residential, work, agriculture, horticulture and fish farming. The professional sensor transmits the data every 7 minutes.

The wireless sensor sends the measured values directly to a server via the gateway module and the Internet. There all data is available for at least 90 days.

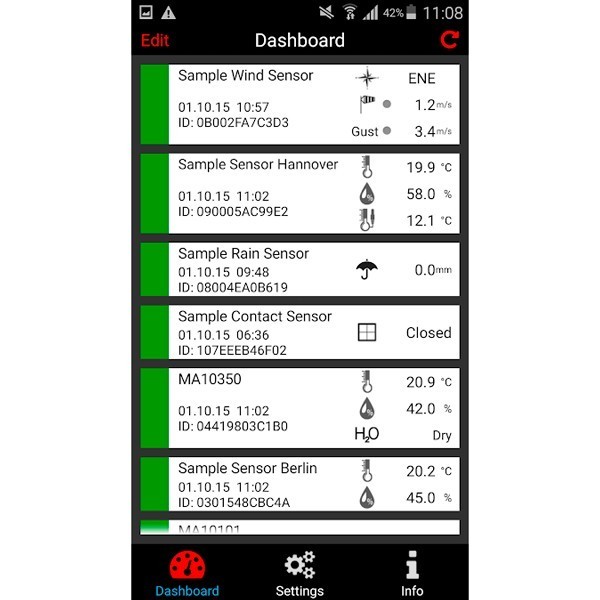

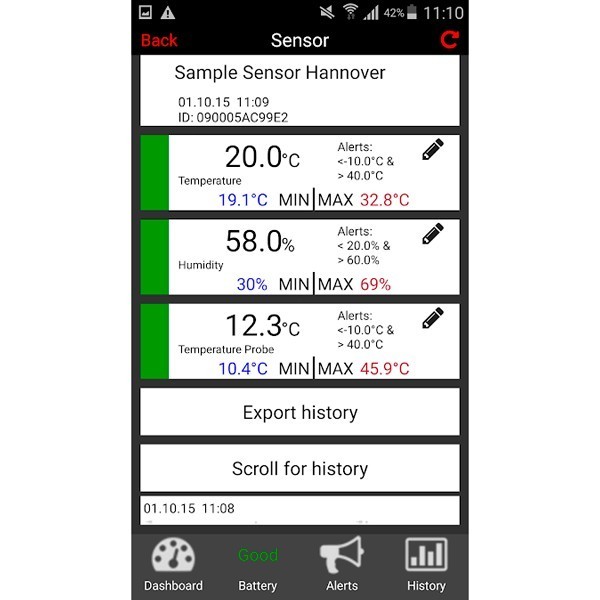

Via the WEATHERHUB OBSERVER platform www.wh-observer.de the measured values can be called up at any time and worldwide via PC, tablet or smartphone and numerous additional functions can be used.

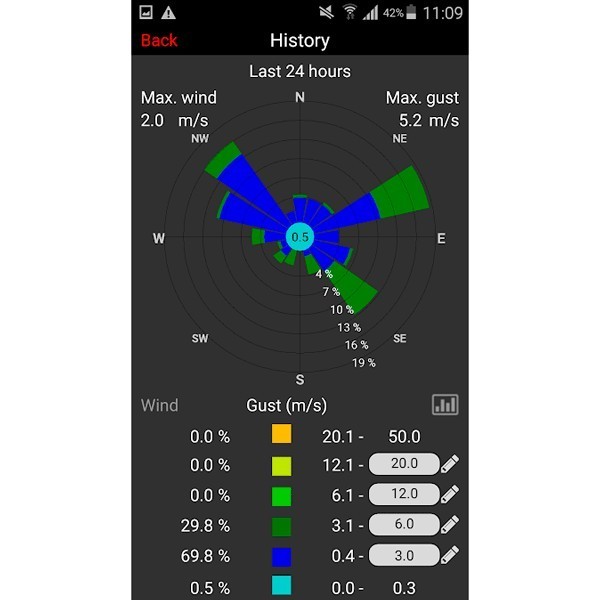

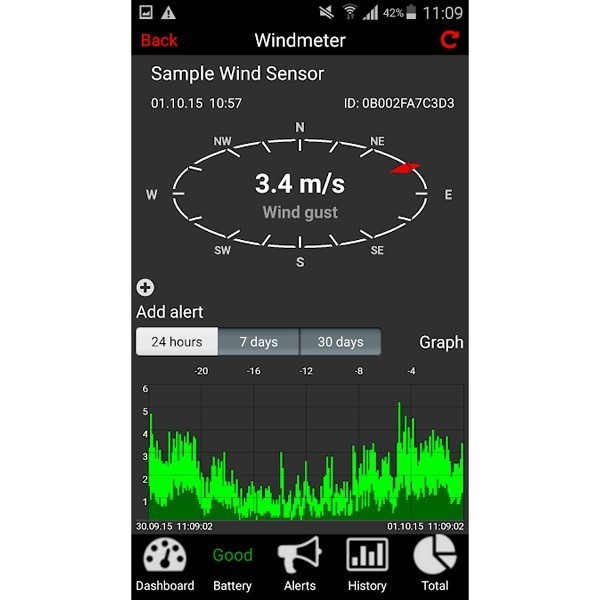

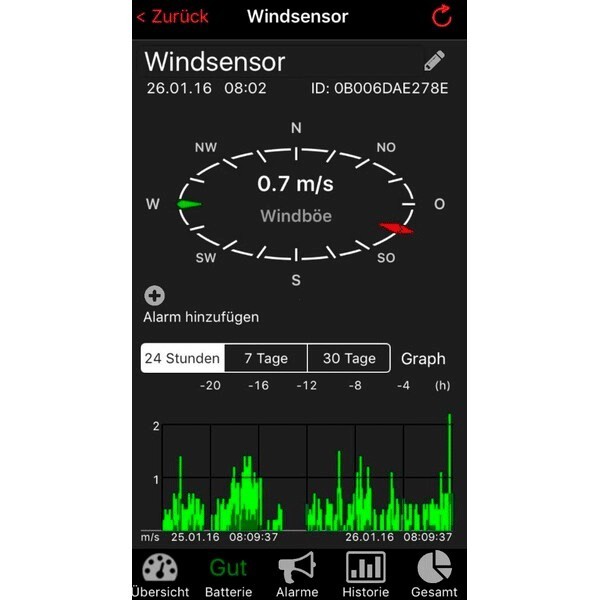

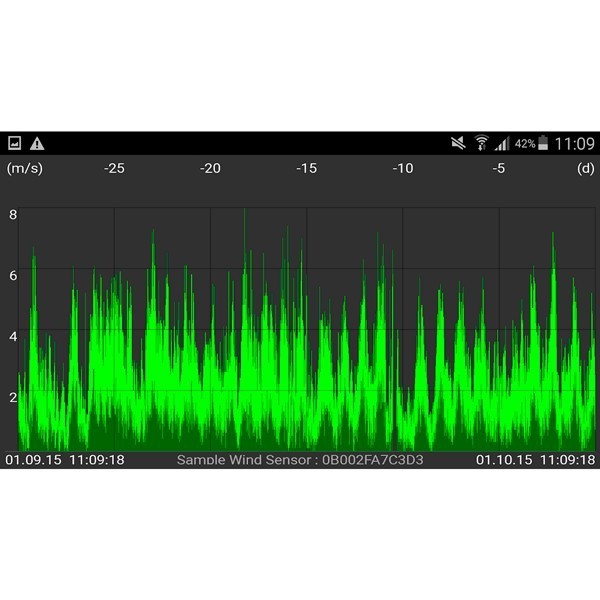

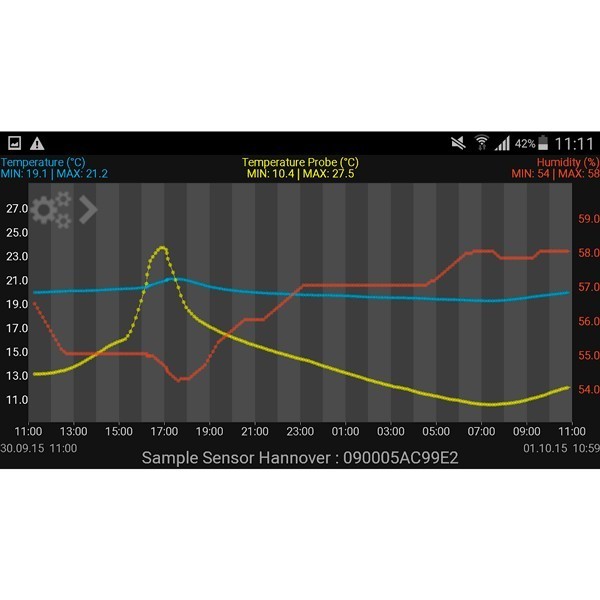

The values are displayed as a clear diagram that can be set to specific time intervals (day, week or month). The data can be exported graphically as PDF or as CSV file in text format. The export files can be sent by e-mail.

With PRO-functions (graphics and overviews) Requires WeatherHub gateway (sold separately)

The monitoring can be automated and there are extensive possibilities for setting alerts. The platform is free of charge and requires no additional usage fee or subscription costs. Up to 50 transmitters can be connected, also for humidity monitoring.

Access the "Free" system Platform and professionally monitor

wh-observer.de

Installation in just 3 easy steps

• Just download the free WeatherHub app to your smartphone
• Connect the network port of the gateway to your router via the LAN cable
• Finally, insert the batteries into the transmitter(s) and/or other devices (rain gauge, etc.) and use the app to scan the QR code printed with the unique serial number – Done!
