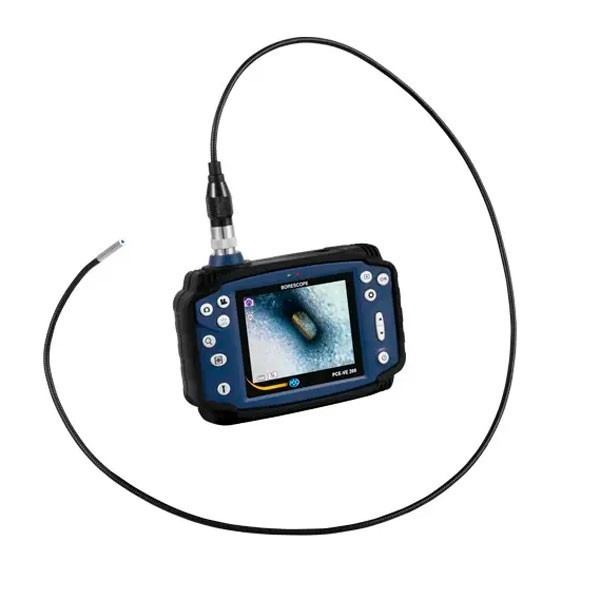

Professional Borescope PCE-VE 200-S3

Reference: PCE-VE 200-S3

Condition: New product

High-Precision Visual Inspection in Hard-to-Reach Areas

Marca: PCE Instruments

The borescope is the ideal solution for non-destructive visual inspections in confined or difficult-to-access areas. With a probe diameter of just 3.7 mm and a 3-meter length, this device enables precise diagnostics without the need to dismantle machinery or systems.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Saving both time and operational costs.

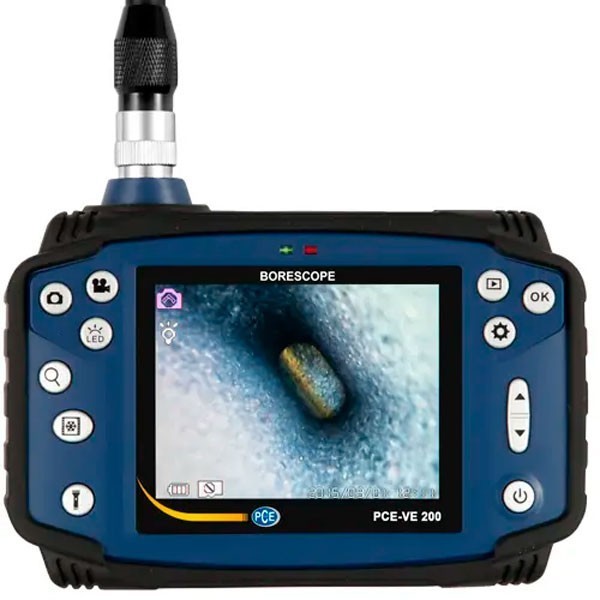

Equipped with a 3.5" LCD screen, adjustable white LED lighting, and a digital zoom of up to 4x, the PCE-VE 200-S3 ensures a clear and flexible inspection experience, even in poorly lit environments. Images and videos can be saved directly to a micro SD card for easy documentation and further analysis.

Main Applications

Industrial maintenance and inspection
Construction and plumbing
Automotive diagnostics and engine checks
HVAC and sanitary system inspections
Quality control and technical assessment

Key Features

Semi-rigid 3-meter probe for deep visual access
Integrated LEDs with adjustable brightness for optimal visibility
Digital zoom with 2x, 3x, and 4x magnification
Automatic storage to micro SD card
Compact and portable design with a 2600 mAh rechargeable battery
Multi-language menu for global usability

Technical Specifications

Base Unit Specifications
Display	3.5" LCD
Video Resolution	AVI (640 x 480)
Image Resolution	JPEG (1600 x 1200)
Zoom	2x, 3x, 4x digital
Freeze Function	Yes
Image Rotation/Mirror	180°
Memory	Micro SD card

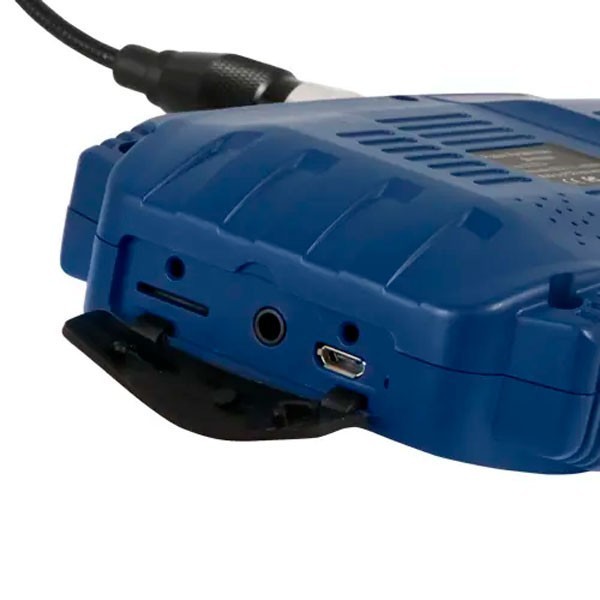

Interface	Micro USB 2.0, TV Output (PAL), SD slot
Battery Capacity	2600 mAh (Li-Ion)
Operating Conditions	-10°C to +40°C, <75% RH
Languages	DE, EN, ES, FR, RU, JP, Simplified & Traditional Chinese

Probe Specifications
Diameter	3.7 mm
Image Sensor	1/8" CMOS
Camera Resolution	640 x 480 px
Lighting	6 white LEDs (adjustable brightness)
Field of View	90°
Focus Distance	15 – 100 mm
Length	3 meters
Type	Semi-rigid

Environmental Conditions
Operating Temp – Probe (air/water)	-10 to +50 °C / +5 to +50 °C
Operating Temp – Base	-10 to +50 °C
Relative Humidity	15% to 90%
Liquid Resistance	Compatible with light oil and 5% saline solutions
Ingress Protection – Probe	IP67 – water, dust, and oil resistant
Ingress Protection – Base	Wind-driven rain (battery compartment must be closed; not submersible)

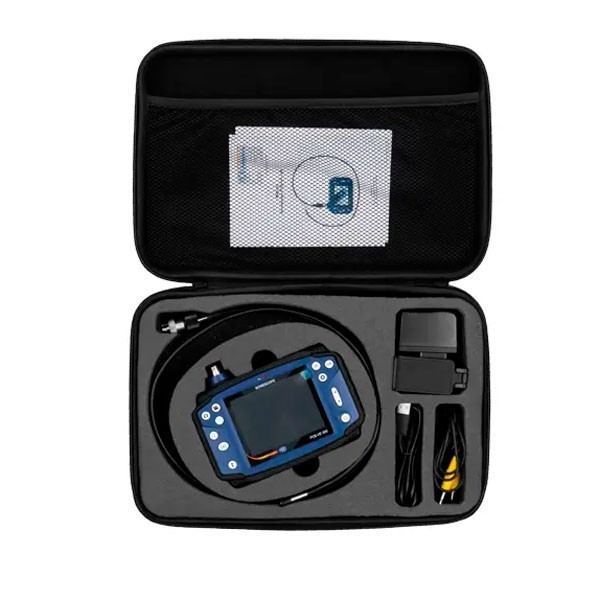

Package Contents

1 x PCE-VE 200-S3 Borescope
1 x USB Cable
1 x USB Adapter
1 x User Manual

Why Choose the PCE-VE 200-S3?

Combining technical precision, versatile applications, and professional-grade build quality, the PCE-VE 200-S3 is an essential tool for preventive maintenance, industrial inspections, and real-time diagnostics. Invest in technology that enhances productivity and inspection reliability across all sectors.
