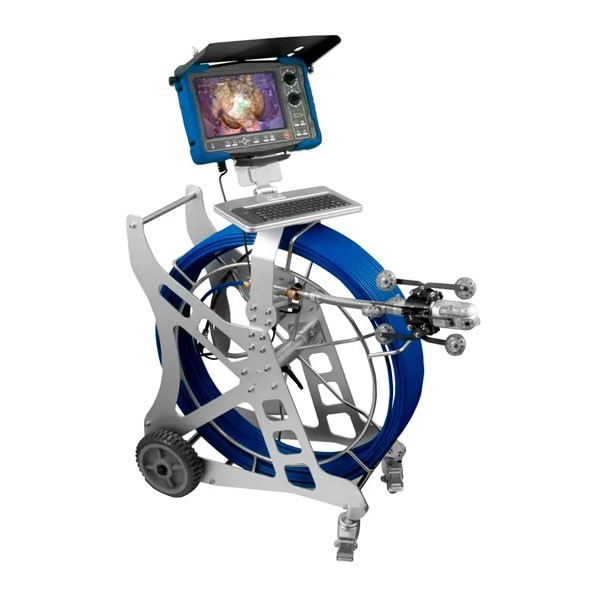

Videoscope PCE-PIC 60

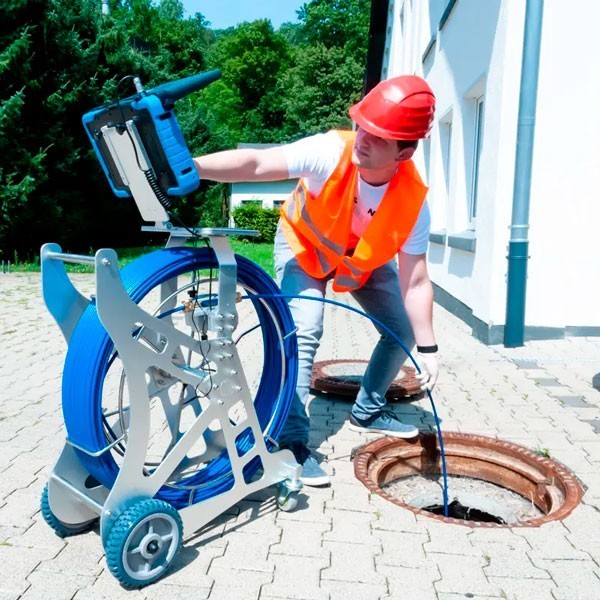

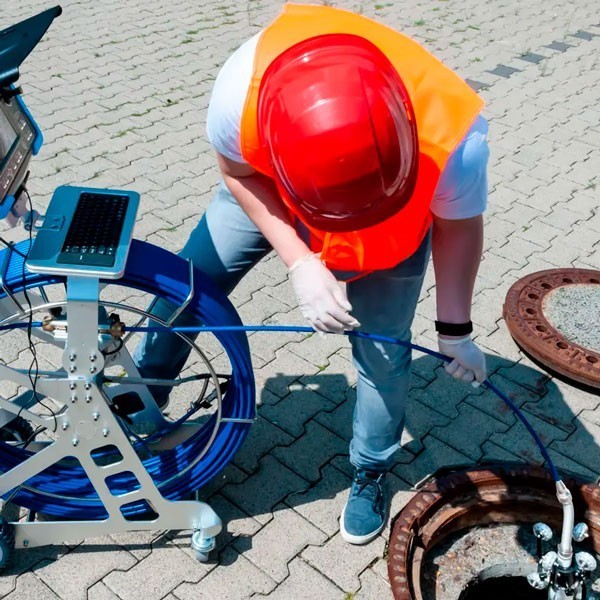

The PCE-PIC 60 borescope is a professional inspection system designed for remote visual analysis of pipelines, ducts, and conduits—particularly those that are long, narrow, or otherwise difficult to access. Depending on the model, it includes a 60 m (optionally 120 m) endoscopic cable with high-flex optical fibres.

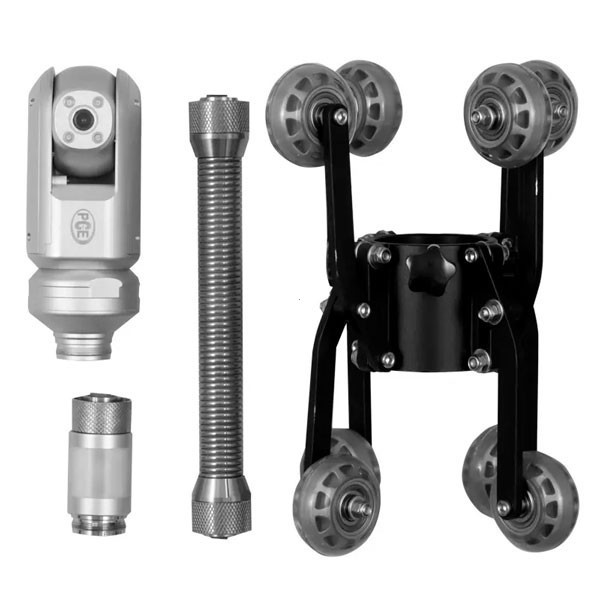

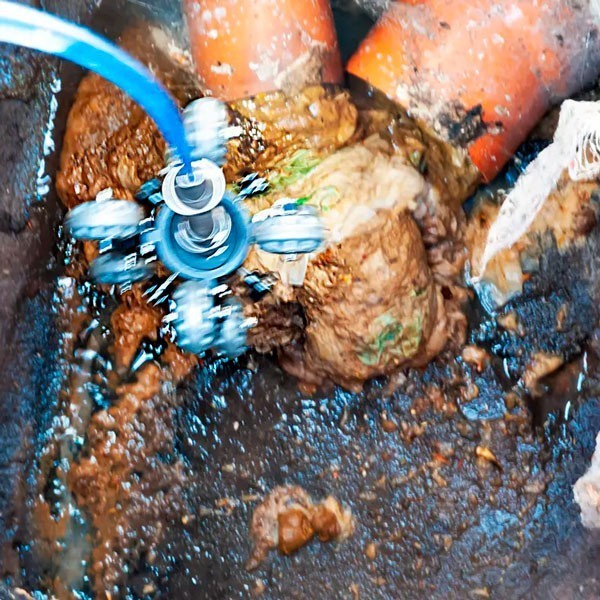

At the end of the probe is a motorised and articulated camera head with IP68 protection rating, suitable for use in submerged or harsh industrial environments. The camera allows full horizontal (360°) and vertical (180°) rotation, enabling comprehensive area coverage without the need to reposition the probe.

The motorised focus system allows inspection distances from 20 to 100 cm, ensuring clear and precise imaging at various depths. Illumination is provided by four high-power adjustable LEDs, enabling reliable inspection even in complete darkness.

An integrated electronic cable length meter continuously measures insertion depth, which is essential for accurate fault location, documentation, and maintenance planning.

The PCE-PIC 60 allows users to record still images, video (AVI), and audio annotations. Image resolution is Full HD (1920 x 1080 pixels), ensuring excellent detail capture. An HDMI output enables real-time viewing on an external monitor, while a USB interface allows text entry via an external keyboard.

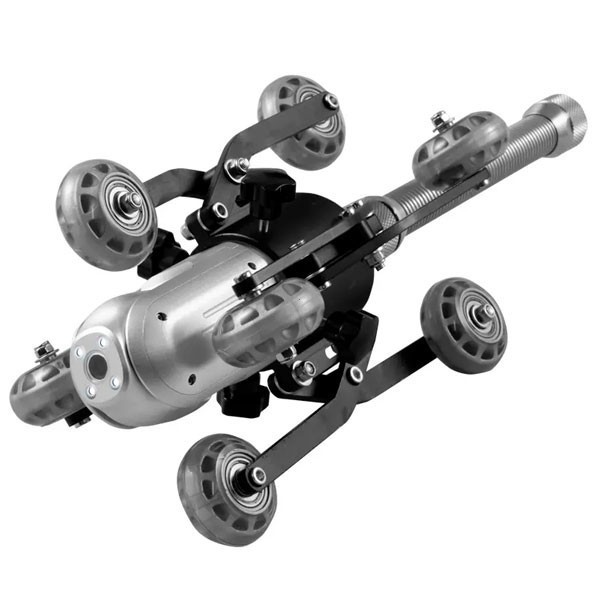

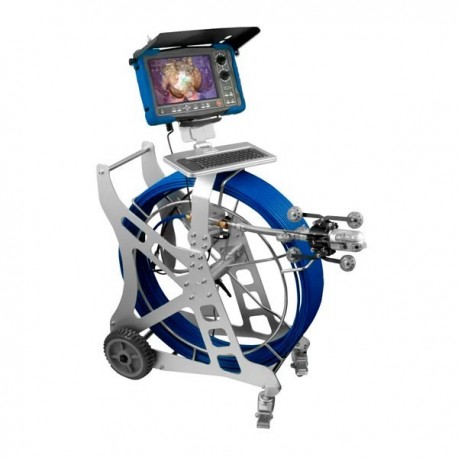

The unit is supplied in a rugged aluminium drum for protection and portability. Included accessories—such as a camera head guide and trolley—ensure stable movement inside pipelines with diameters ranging from 80 mm to 1200 mm.

Key Features

✅ 60 m or 120 m endoscopic cable (depending on the model)
✅ Motorised PAN/TILT camera head
✅ Motorised focus control (20–100 cm range)
✅ High-intensity adjustable LED lighting
✅ Electronic cable length meter (0–60 m)

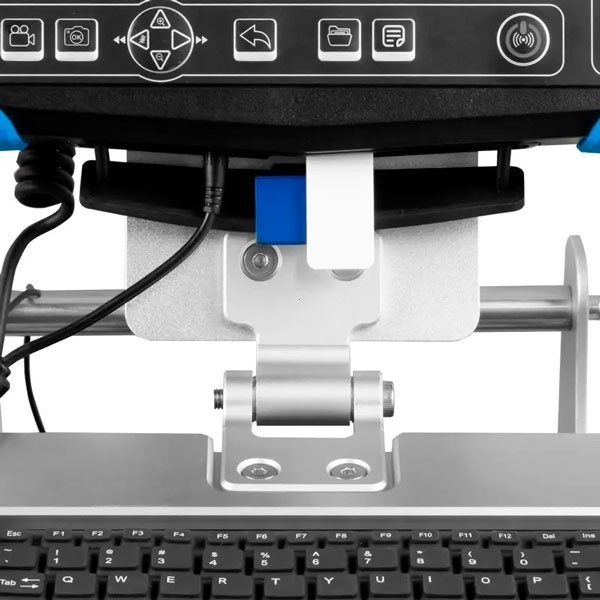

✅ Text and comment insertion via keyboard

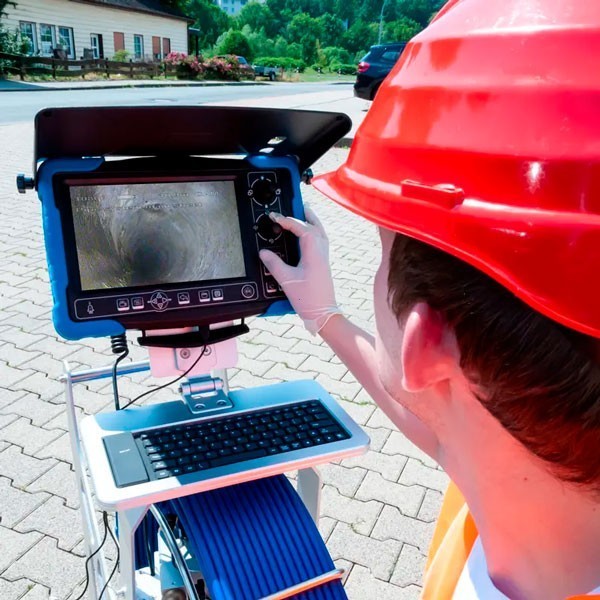

✅ HDMI output for real-time external display
✅ SD card storage (up to 256 GB supported)
✅ Multilingual menu navigation
✅ Includes transport trolley, centring guide, and tool set
✅ Supplied in a heavy-duty aluminium transport drum

Technical Specifications

• Camera Head Diameter 60 mm
• Camera Head Rotation Horizontal: 360° / Vertical: 180°
• Viewing Distance 20 cm to 100 cm (motorised focus)
• Field of View 105°
• Lighting 4 adjustable high-intensity LEDs
• White Balance Automatic
• Image Sensor 1/2.9" Sony CCD – 1920 x 1080 pixels

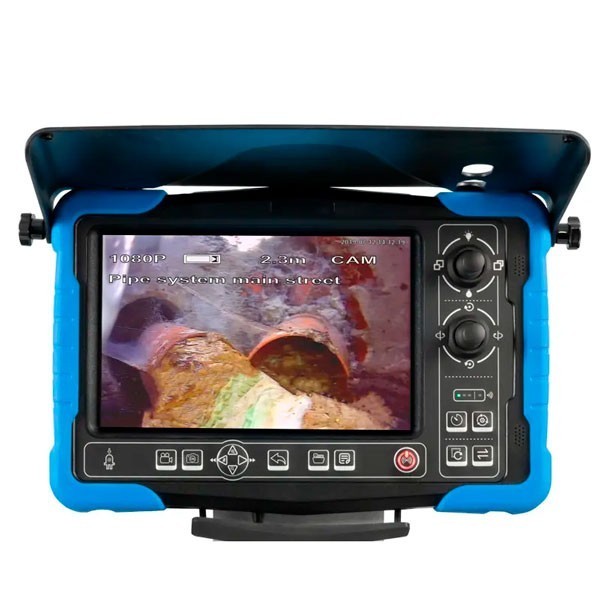

• Display 10.1" LCD – 1280 x 800 pixels
• Interfaces USB 2.0, HDMI
• Recording Formats Video (AVI), Image (JPEG), Audio
• Video Output Formats PAL: 1080P, 720P, CVBS / NTSC: 1080P, 720P, CVBS
• Storage SD card up to 256 GB
• Cable Length Metering Electronic, 0 to 60 m
• Text Entry Via keyboard
• Operating Conditions -10 to +50 °C / 30% to 90% RH
• Storage Conditions -20 to +60 °C / 30% to 90% RH
• Power Supply 110–240 V AC / 13.5 V DC / 5 A
• Battery 12 V / 6000 mAh Li-Ion rechargeable
• Ingress Protection (IP) Camera head: IP68
• Overall Dimensions 87.5 x 97.8 x 40.6 cm (complete kit)
• Camera Head Dimensions 60 x 146 mm (total length: 360 mm)
• Total Weight Approx. 20 kg

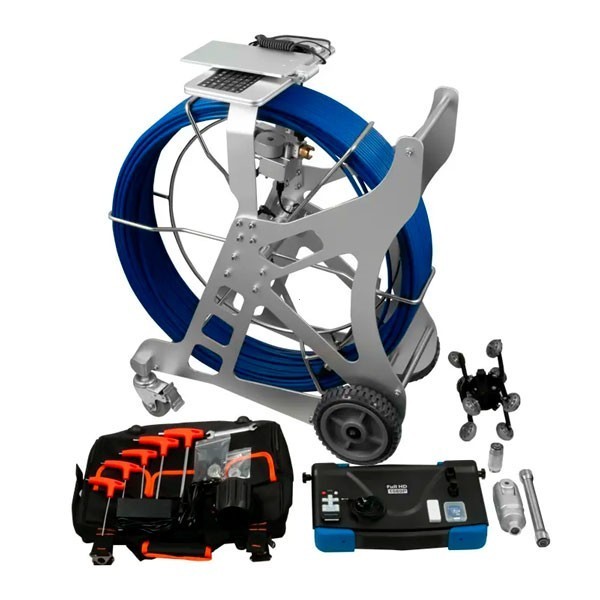

Scope of Delivery

✅ 1 x PCE-PIC 60 borescope
✅ 1 x 60 m probe with drum (model dependent)

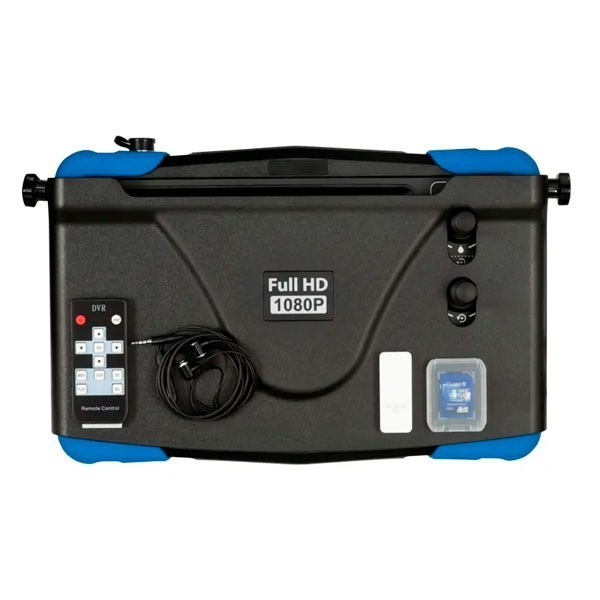

✅ 1 x Display unit with keyboard
✅ 1 x PAN/TILT camera head
✅ 1 x Trolley for camera head
✅ 1 x Integrated location transmitter
✅ 1 x Spring camera connector
✅ 1 x Centring star (guide)

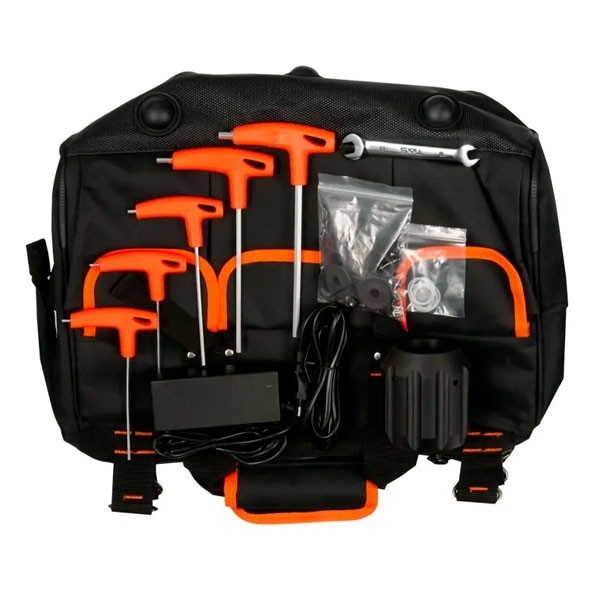

✅ 1 x Maintenance tool kit
✅ 1 x Power supply unit
✅ 1 x Operating manual
