Borescope PCE-VE 1030N

Whether inspecting machinery, ductwork, ventilation systems, pipes, chimneys, or other confined spaces, this device offers the perfect combination of durability and advanced imaging technology.

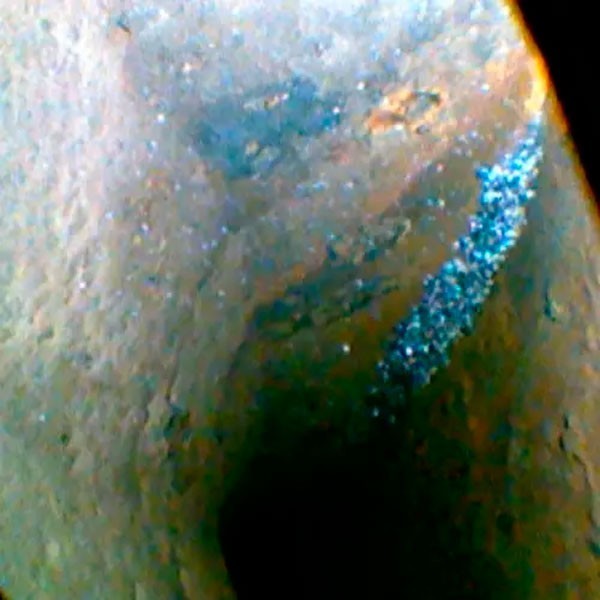

Equipped with a 30-meter flexible probe and a rugged 28 mm diameter camera head, the borescope easily navigates tight bends and narrow passageways. A 7” display, powerful LED lighting, and integrated image and video recording to an included 8 GB SD card make this a complete and portable solution for diagnostic and maintenance tasks.

Key Features:

✅Compact 28 mm diameter camera head with IP68 protection

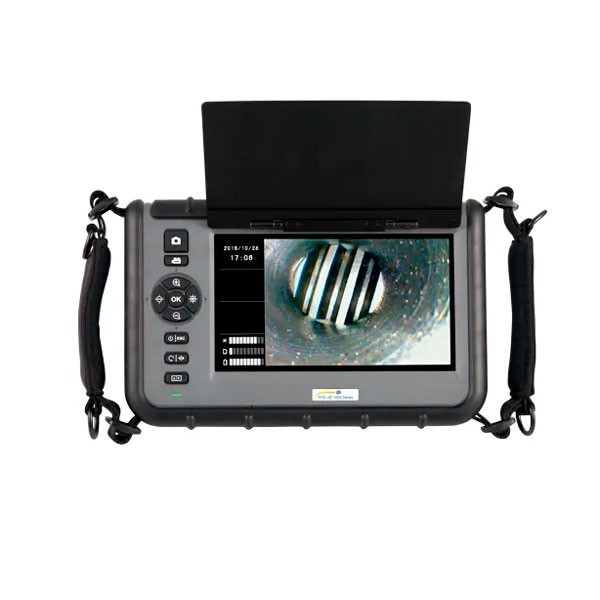

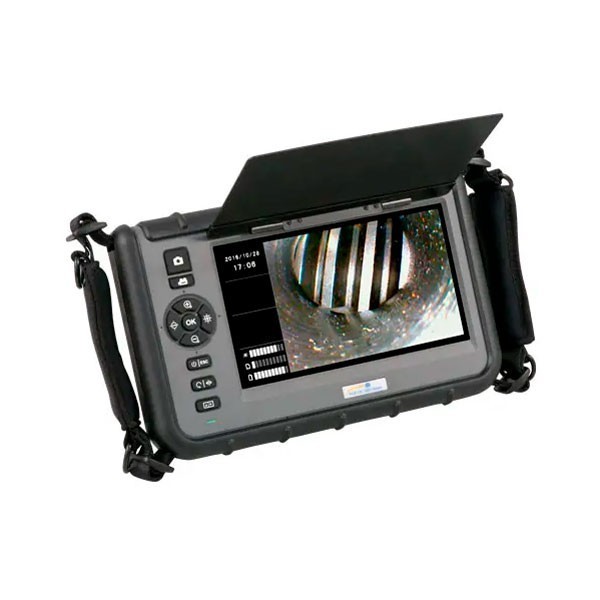

✅High-resolution 7” LCD monitor

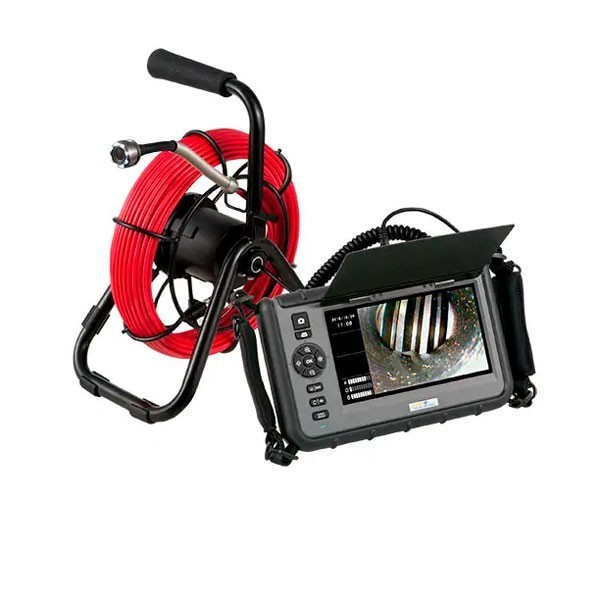

✅30 m sliding probe mounted on a drum
✅Image and video recording with audio (640x480 resolution)
✅Integrated LED lighting with 10 adjustable brightness levels
✅8 GB SD memory card included (expandable up to 32 GB)
✅ Up to 5 hours of battery life
✅ Durable and portable with protective carrying case included

Technical Specifications:

• Field of view: 150.8°

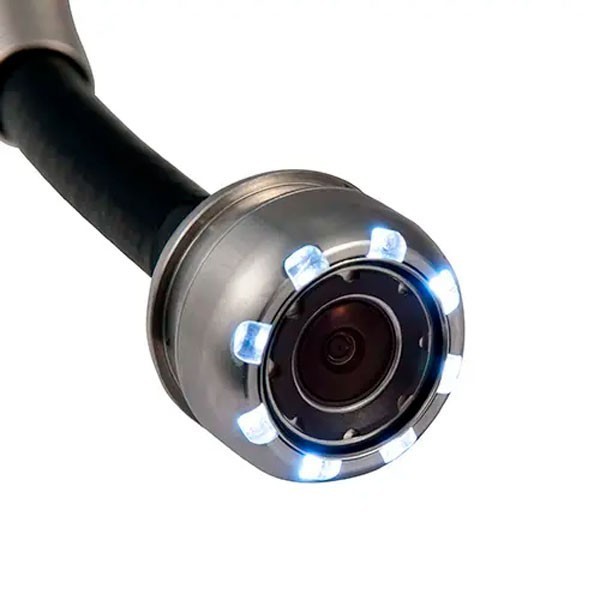

• Illumination: 8 LEDs with automatic exposure
• Resolutions: JPEG images 640x480 | MPEG videos with audio 640x480

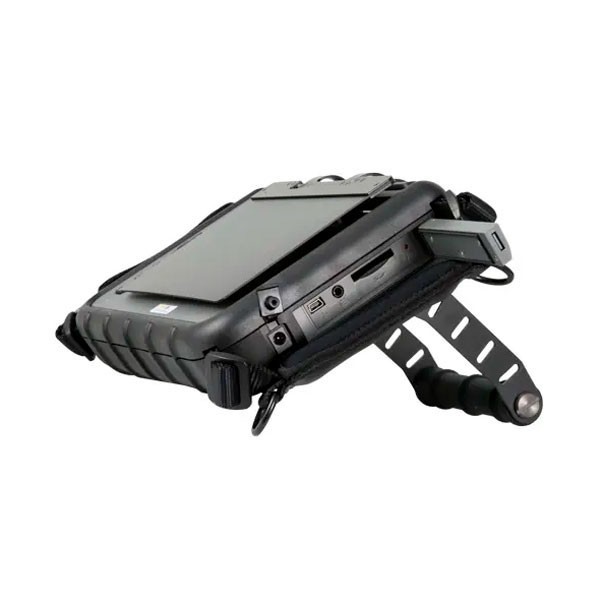

• Interfaces: USB, AV output (NTSC/PAL), built-in microphone
• Power supply: Rechargeable lithium-ion battery
• Protection rating: IP57 (handheld) / IP68 (camera head)

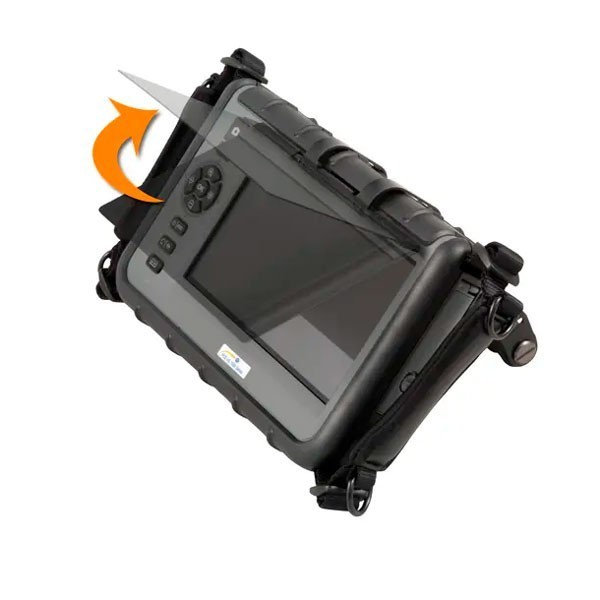

• Handheld unit dimensions: 240 x 154 x 47 mm
• Weight: 1.3 kg

Scope of Delivery:

• 1 x Borescope PCE-VE 1030N
• 1 x Endoscopic probe with drum

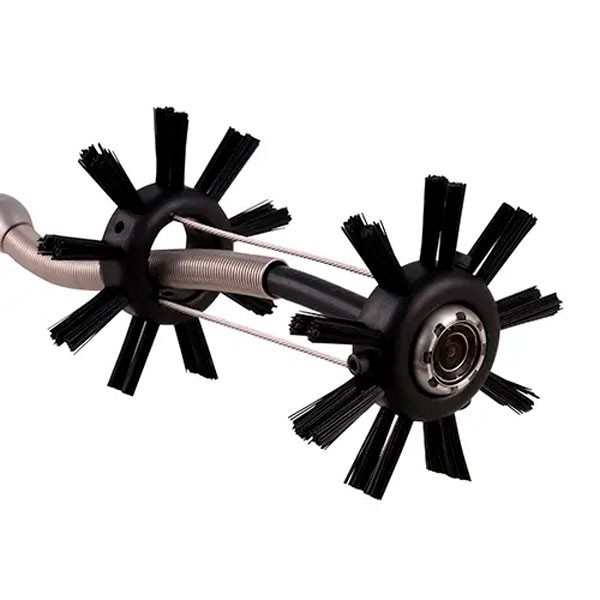

• 1 x Centering star
• 1 x 8 GB SD memory card
• 1 x Camera head cleaning kit
• 1 x USB cable
• 1 x Power adapter for display
• 1 x Video cable
• 1 x Durable transport case
