IoT-Line Balança de Mesa FCB 30K-3DM

Reference: FCB 30K-3DM

Condition: New product

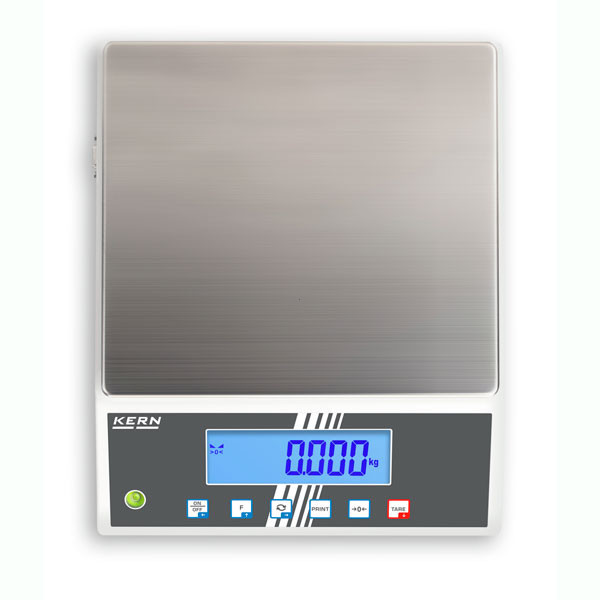

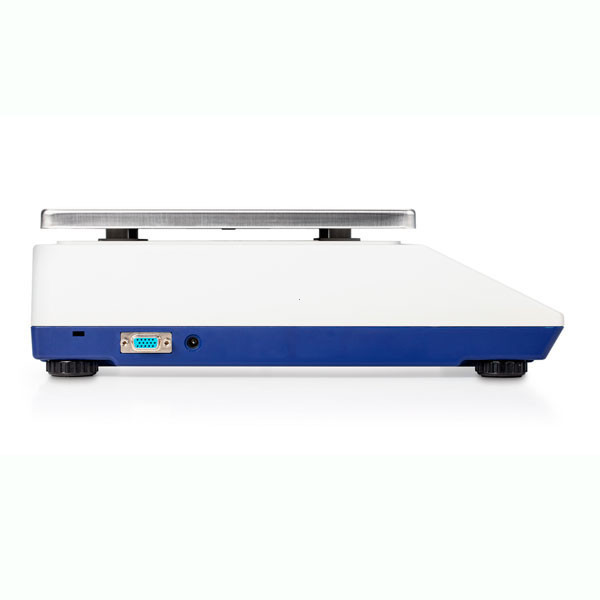

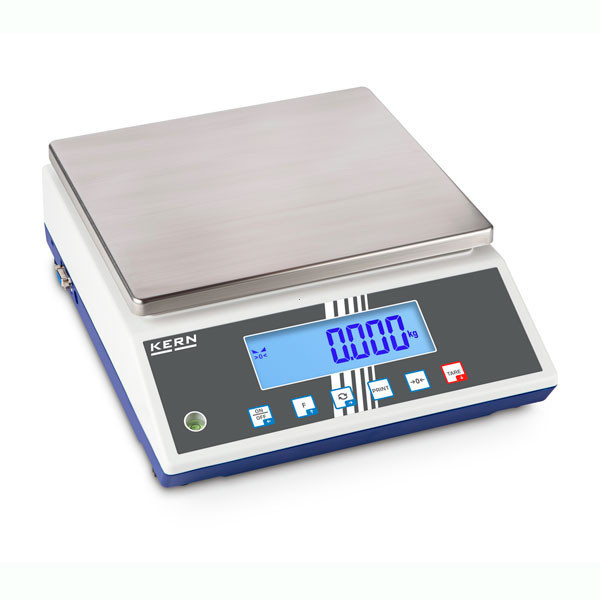

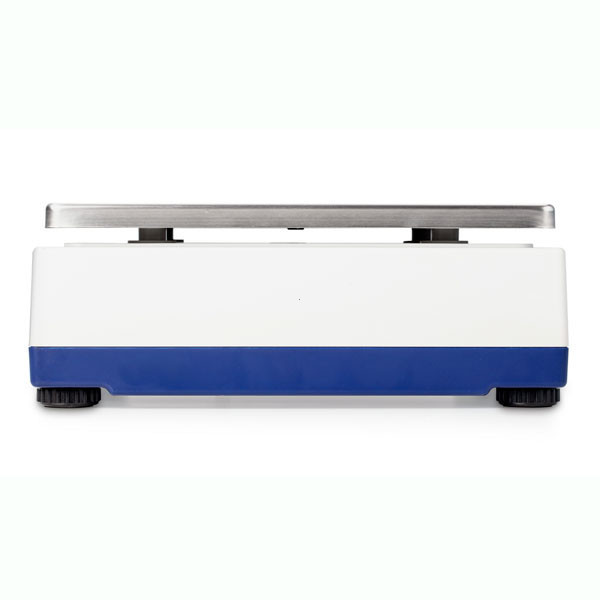

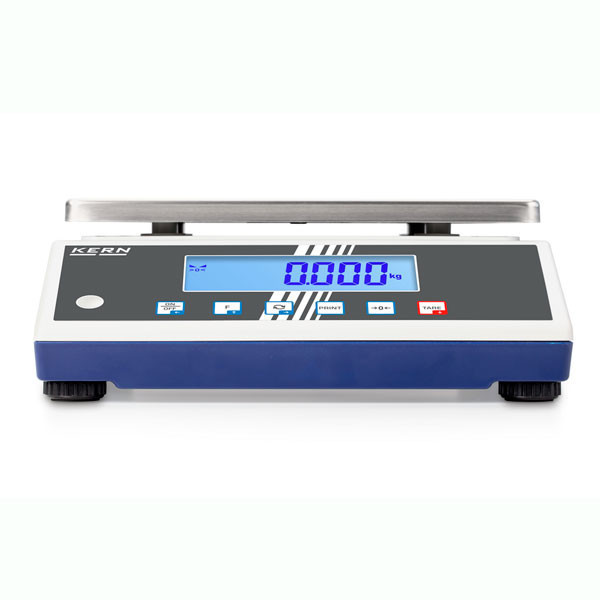

Table Scale FCB 30K-3DM

The FCB 30K-3DM control and portioning scale delivers a compact, versatile weighing solution with up to three configurable interfaces and M certification. Perfect for industrial, pharmaceutical, logistics, and workshop environments, this scale seamlessly integrates into digital workflows, enhancing accuracy and operational efficiency.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Includes: Approval / Conformity Assessment (M)

Verification / Conformity assessment according to NAWI (2014/31/EU) 965-228 Verification Class III

Key Benefits and Differentiators

Uniform and intuitive KERN operation philosophy: consistent design, easy-to-navigate menus, dedicated function keys, and standard interface protocols.
Compact design optimizes limited workspace.
Advanced Industry 4.0 connectivity via the KERN Universal Port (KUP), supporting RS-232, USB, Ethernet, WiFi, and Bluetooth interfaces.
Remote monitoring and control through computers or CRM/ERP systems.
Exceptional mobility with optional rechargeable battery and lightweight construction.
Checkweighing functionality with audible and visual signals for accurate portioning, dosing, and sorting.
Automatic weight summation for streamlined production processes.
Includes protective cover for enhanced durability.

Applications

Ideal for use in:

Various industrial sectors
Pharmacies
Workshops and maintenance facilities
Warehouse logistics and management
Digital and automated processes

Technical Specifications

Feature	Description
Weighing range (max.)	15 kg; 30 kg
Readability [d]	0.005 kg; 0.01 kg
Verification scale interval [e]	0.005 kg; 0.01 kg
Measurement units	kg, g, gn, dwt, ct, lb, oz, ffa, PCS, %
Minimum weight (Min.)	0.1 kg
Weighing surface dimensions (W×D)	252×225 mm
Repeatability	0.005 kg; 0.01 kg
Linearity	± 0.005 kg; 0.01 kg
Operating temperature	-10 °C to 40 °C
Minimum partial weight for piece counting	10 g
Display type	LCD, digit height 25 mm
Weighing pan material	Stainless steel
Housing material	Plastic
Approximate net weight	4.0 kg
IP Protection (load cell)	IP65
Scale type	Multi-division scale
GTIN / EAN Number	4045761243514
