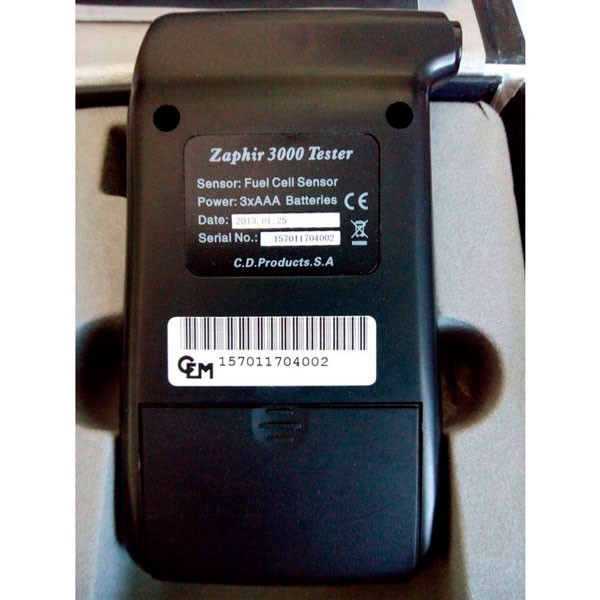

Zaphir CDP-3000 Digital breathalyzer

The Z-3000 model delivers more linear results with a very high level of accuracy over a wide measurement range of 0.00 and 2.00 mg/L.

With a modern and compact design, it is ideal for personal or professional use, offering an intuitive experience through its color LCD screen and optimized interface. The disposable mouthpieces with an anti-return system ensure hygienic and safe use, preventing any risk of cross-contamination.

The Zaphir CDP 3000 complies with CE standards, making it a reliable device for prevention and screening. Careful reading of the instruction manual is recommended to ensure correct and conscious use. The results obtained should be considered as an indicative measure rather than an absolute value.

Advantages of the Electrochemical Sensor

Traditional semiconductor sensors alter their conductivity when in contact with ethanol molecules, requiring high temperatures to operate. This results in longer recovery times and higher energy consumption. In contrast, electrochemical sensors offer:

✅ Greater precision and linearity: The Zaphir CDP 3000 provides highly accurate measurements between 0.00 and 2.00 mg/L, while semiconductor sensors are reliable only within a limited range of 0.15 to 0.25 mg/L.
✅ Superior stability: It maintains a low deviation rate of only 0.6% per month, similar to police breathalyzers, whereas semiconductor sensors exceed 1.3%, requiring more frequent calibrations.
✅ Longer lifespan: Low oxidation aging allows for a lifespan 2 to 3 times longer compared to semiconductor models.
✅ Energy efficiency: Energy consumption is 10 times lower, eliminating the need for external power supply.
✅ Fast response time: Conducts alcohol tests 3 to 4 times faster, allowing for a higher number of tests in a short period.
✅ Enhanced hygiene: Uses professional mouthpieces with an anti-return valve for maximum safety.

Technical Specifications

• Detection range: 0.00 - 2.00 g/L of blood (0 – 440 mg/100 mL; 0 – 0,400 % CAS; 0 – 4,000 % CAS; 0 -4,000 g/L)
• Resolution: 0.001
• Electrochemical sensor: High-reliability fuel cell
• Advanced microcontroller: 16-bit, low power consumption
• LCD screen: 1.8 inches, easy to read
• Additional functions:
  • Test cancellation
  • Measurement unit and alarm level adjustment
  • Test history visualization
  • Intelligent breath pressure detection
  • Passive testing mode
• Sensor accuracy: Typical deviation of 0.6% per month
• TAS conversion factor: adjustable in a range from 1800 to 2300 (Default 2100 Spain: TAS = TAE × conversion factor).
• Calibration interval: Every 6-12 months or 500 tests
• Warm-up time: Maximum of 30 seconds
• Operating conditions:
  • Temperature: 0°C to 40°C
  • Humidity: ≤95% RH
• Storage conditions: -25°C ~ 70°C
• Power supply: 3 AAA 1.5V batteries
• Memory: Stores up to 10 test records
• Dimensions: 114 mm × 66 mm × 26 mm
• Weight: Approximately 100 g (without batteries), 220 g (with packaging)

Included Accessories

• Zaphir CDP 3000 device
• Instruction manual in 6 languages
• 5 sterilized mouthpieces
• Calibration certificate

The Zaphir CDP 3000 is the ideal choice for those seeking a precise, easy-to-use breathalyzer with a sophisticated design. Perfect for ensuring safety and responsibility in driving and workplace environments.
