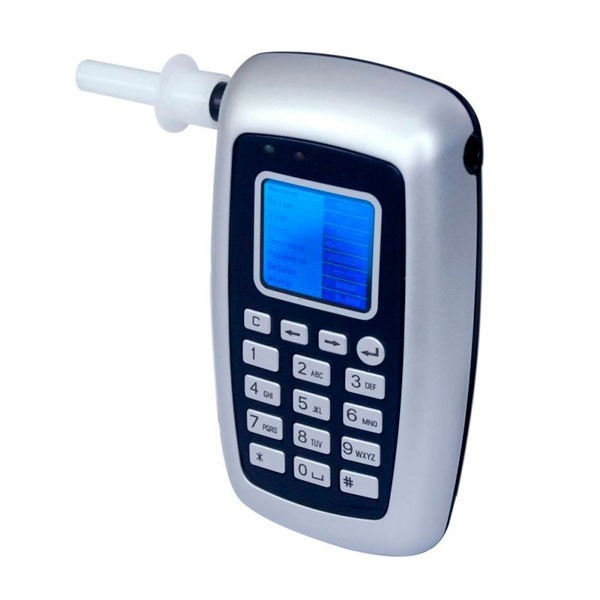

CDP 8800 Breathalyzer with Keyboard

The Spanish Metrology Centre, under the Ministry of Industry, has conducted several tests and issued a technical report under file number 121937002. The results obtained using procedure CEMPT0032 demonstrate the device’s high reliability.

All our breathalyzers are supplied with an official calibration certificate with ENAC traceability (https://ilac.org/), internationally recognized by most metrological institutions.

Description

CDP 8800 Breathalyzer with Keyboard and Printer (optional)

General Features:

• Equipped with a keyboard for data entry with each record.
• Four possible units of measurement:
  • mg/L in exhaled air
  • g/L in blood
  • % BAC
  • PPM
• Stores up to 2,000 test records in memory, including result, temperature, date, and time.
• Highly accurate 4-digit digital graphic display with clear, easy-to-read messages. The blue backlight ensures visibility at night.
• Password-protected software access, secured against unauthorized changes.
• Additional features include:
  • Automatic shut-off
  • Displays the next calibration due (recommended every 6 or 12 months)
  • Real-time battery status
  • Ability to perform passive tests, breath samples, or ambient air measurements
  • Adjustable alarm threshold
  • Interchangeable electrochemical sensor module
  • Wireless printing of test results up to 4 meters away

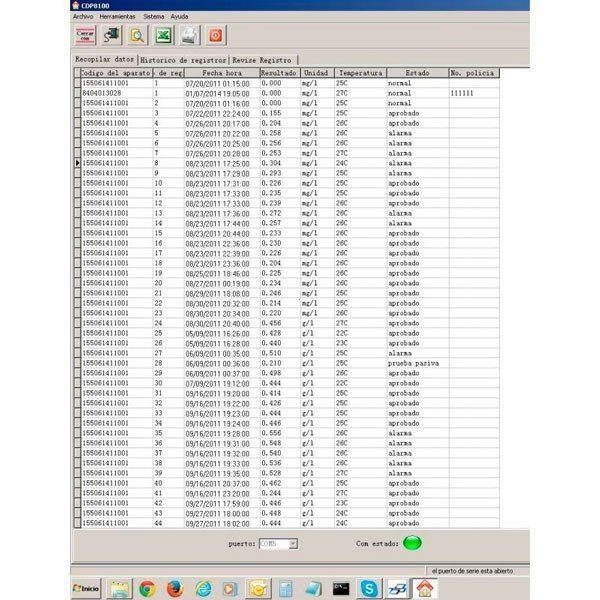

  • Transfer of stored data to a PC via USB data cable (included in standard kit)

The printed receipt includes the following information with opcional printer:

• Device reference
• Printed report number
• Date
• Time
• Ambient temperature
• Result
• Device state/mode
• Tested individual
• Vehicle registration number
• Postal address
• Tested individual’s signature
• Police reference (badge number)

This information can be customized for large-scale projects.

• Compatible with both alkaline and rechargeable batteries.
• Comes with special blow mouthpieces made of high-density polypropylene, equipped with a non-return system to prevent users from inhaling through the device—minimizing the risk of disease or infection transmission.
• Compatible with standard mouthpieces used by traffic police and security forces in Spain (see photo).
• Semi-annual or annual recalibration possible at CDP laboratory.

Technical Specifications:

• Sensor type: Fuel cell (electrochemical alcohol sensor)
• Continuous working capacity: More than 20 hours under normal use
• Accuracy:
  • <0.400 mg/L: ±0.020
  • 0.400 – 1.000 mg/L: ±5%
  • 1.000 – 2.000 mg/L: ±20%
• Measurement range: 0.000 – 2.500 mg/L (BrAC)
• Standard deviation: 0.008 mg/L
• Alarm threshold: Adjustable range from 0.200 – 0.600 mg/L
• Blow time: 3.5 seconds
• Response time: <10 seconds
• Operating temperature: -10ºC – 50ºC
• Storage temperature: -20ºC – 60ºC
• Relative humidity: 20% to 90%
• Atmospheric pressure: 700 to 1300 hPa
• Display: LCD
• Opcional Printer: Dot-matrix thermal; 128 x 64 pixels
• Dimensions: 65 x 120 x 27 mm
• Weight: 160 g (with batteries)

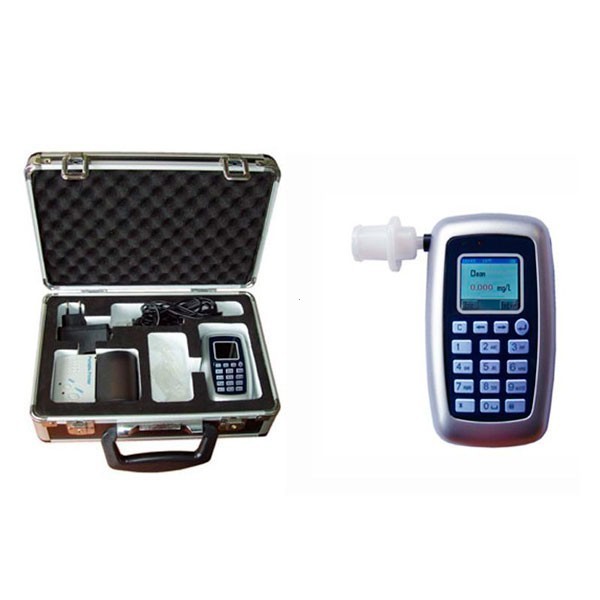

Included:

• CDP 8800 Breathalyzer with Keyboard and Printer (optional)
• 15 sterilized mouthpieces
• USB cable
• Driver installation CD
• Protective carrying case

All our breathalyzers are supplied with an official calibration certificate with ENAC traceability (https://ilac.org/), internationally recognized by most metrological institutions.
