Tachometer and Stroboscope PCE-T 260

Reference: PCET 260

Condition: New product

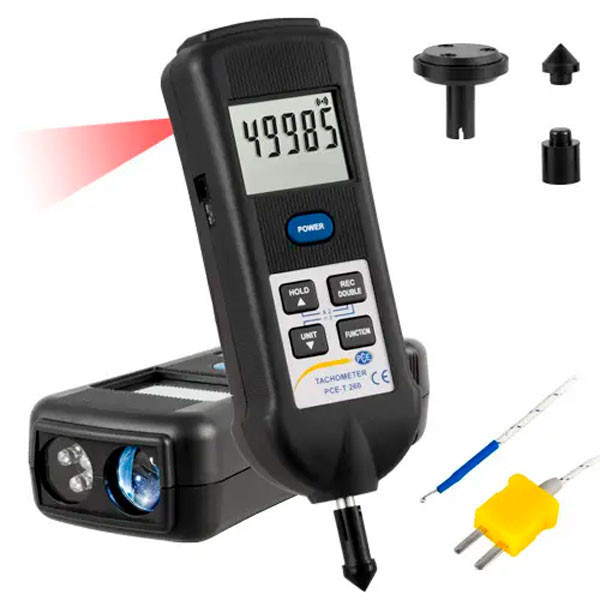

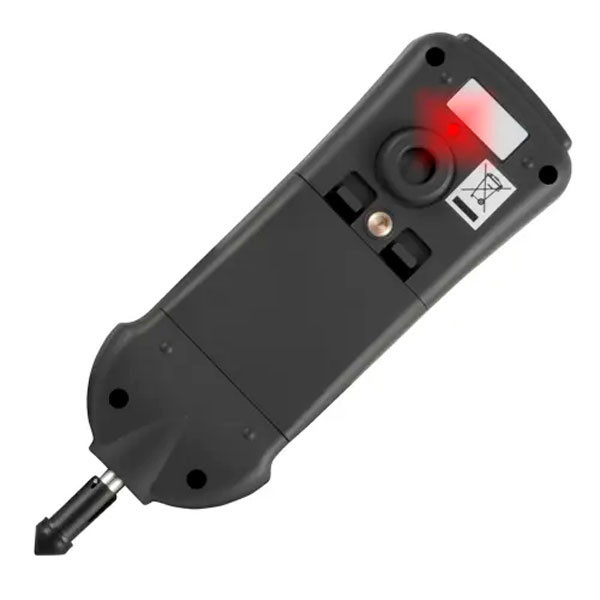

The PCE-T 260 Tachometer and Stroboscope is a high-precision multifunction measuring device designed for industrial maintenance, production, quality control and research & development. It combines contact and non-contact rotational speed measurement, stroboscopic inspection and temperature measurement in a single robust instrument.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Description

With a wide measuring range of up to 99,999 rpm, the PCE-T 260 is ideal for motors, fans, centrifuges, conveyor systems and rotating machinery. High-intensity red LED technology ensures low power consumption, long service life and minimal maintenance requirements.

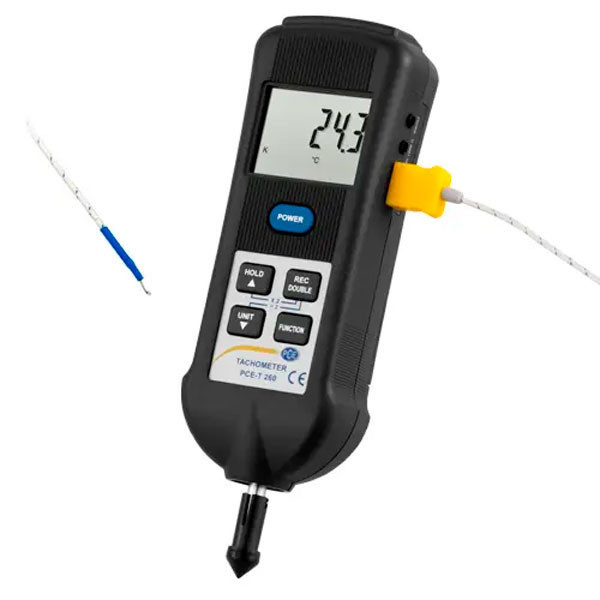

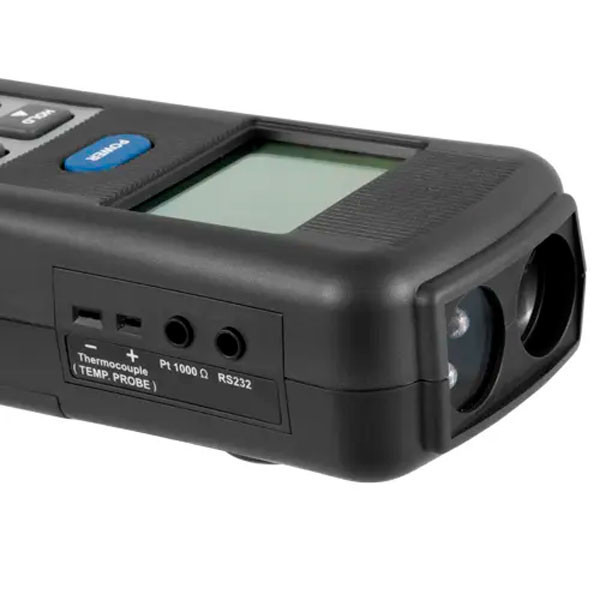

Temperature can be measured non-contact via infrared or by contact using PT1000 probes or type K thermocouples. The integrated RS-232 interface enables direct connection to a PC for real-time monitoring, data logging and analysis.

Key Features

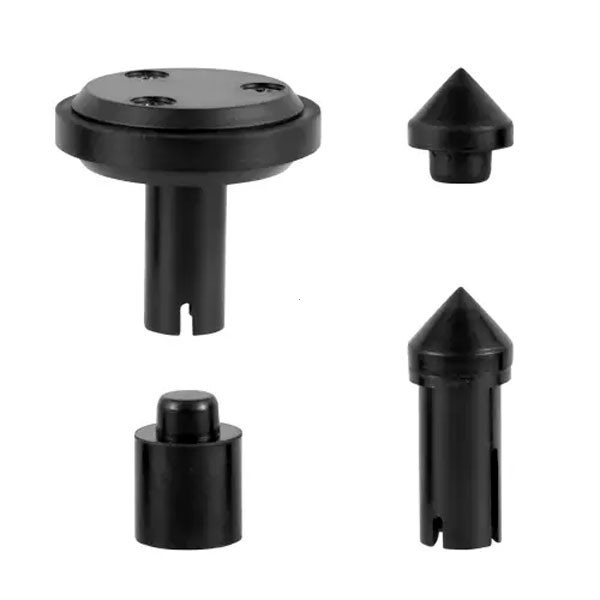

Contact and non-contact rotational speed measurement

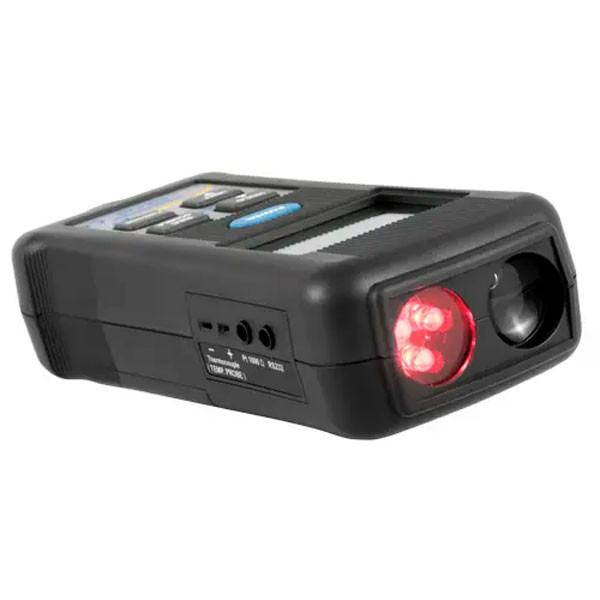

High-power red LED stroboscopic light
Infrared and contact temperature measurement
Compatible with PT1000 probes and type K thermocouples
Durable ABS housing for industrial environments

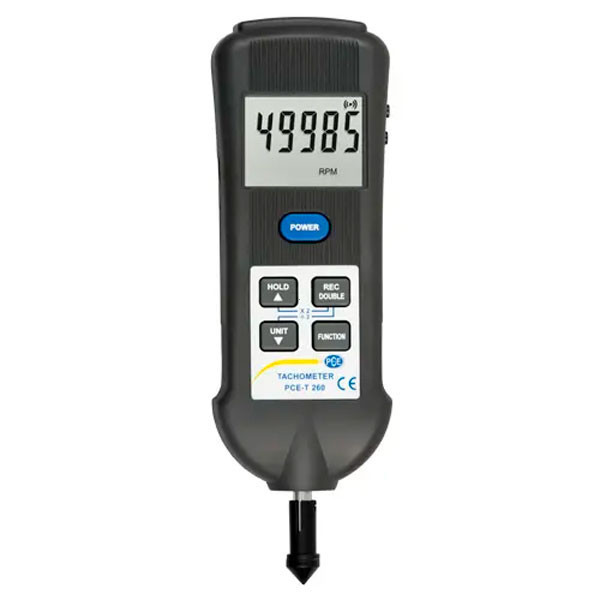

5-digit LCD display with 10 mm digit height
Last value memory and MIN/MAX functions
RS-232 interface for PC data transfer
Low power consumption

Technical Specifications

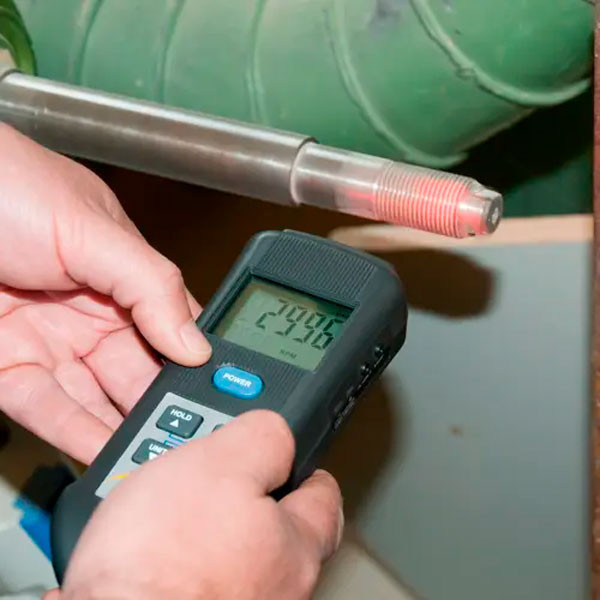

Tachometer – Optical Measurement (Non-Contact)
Measuring range	5 … 99,999 rpm
Resolution	0.5 rpm (< 1000 rpm) / 1 rpm (> 1000 rpm)
Accuracy	±0.05 % + 1 digit
Measuring distance	50 … 150 mm (max. 300 mm depending on ambient light)

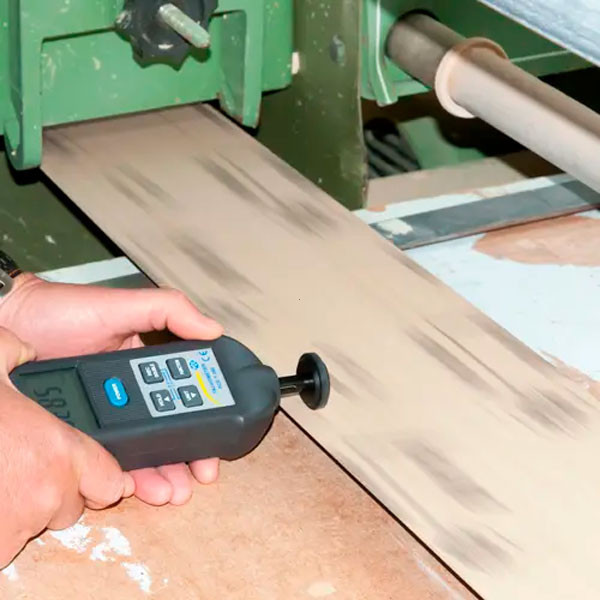

Tachometer – Contact Mode
Measuring range	0.5 … 19,999 rpm
Resolution	0.5 rpm (< 1000 rpm) / 1 rpm (> 1000 rpm)
Linear speed	0.05 m/min (< 100 m/min) / 0.1 m/min (> 100 m/min)
Accuracy	±0.05 % + 1 digit
Stroboscope
Flash frequency range	100 … 99,990 rpm
Resolution	0.1 rpm (< 1000 rpm) 1 rpm (1000 … 30,000 rpm) 5 rpm (30,000 … 50,000 rpm) 1 rpm (50,000 … 99,990 rpm)
Accuracy	±0.1 % + 2 digits
Flash light	3 × red LED
Temperature Measurement – Type K
Measuring range	-100 … +1300 °C
Resolution	0.1 °C
Accuracy (device only)	±0.4 % + 1 °C (-100 … -50 °C) ±0.4 % + 0.5 °C (-50 … +1300 °C)
Temperature Measurement – PT1000
Measuring range	-10 … +70 °C
Resolution	0.1 °C
Accuracy	±1.2 °C
Temperature Measurement – Infrared
Measuring range	-30 … +305 °C
Resolution	0.5 °C
Accuracy	±3 % or ±3 °C
Emissivity	0.95 (fixed)
Spectral range	6 … 14 µm
Distance-to-spot ratio	3 : 1
General Technical Data
Display	5-digit LCD
Interface	RS-232
Power supply	4 × AA 1.5 V batteries / DC 9 V adapter
Power consumption	Approx. 52 mA
Operating conditions	0 … +50 °C / < 80 % RH
Dimensions	207 × 67 × 39 mm
Weight	255 g (without batteries)
