Precision Barometer and Professional AltimeterECO230

Reference: ECO230

Condition: New product

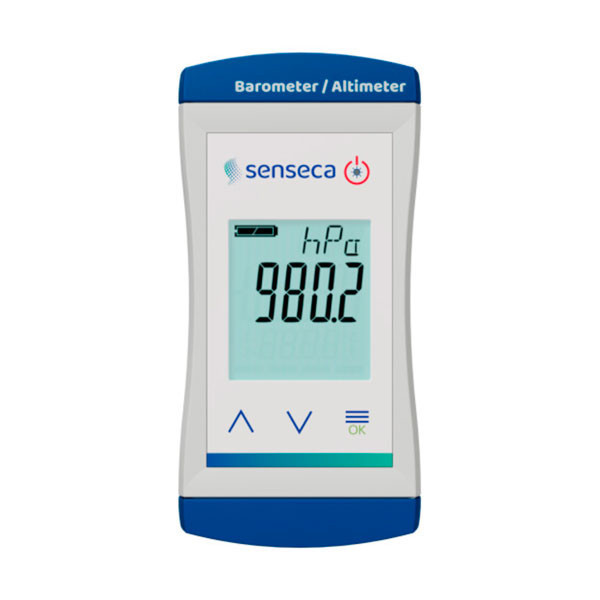

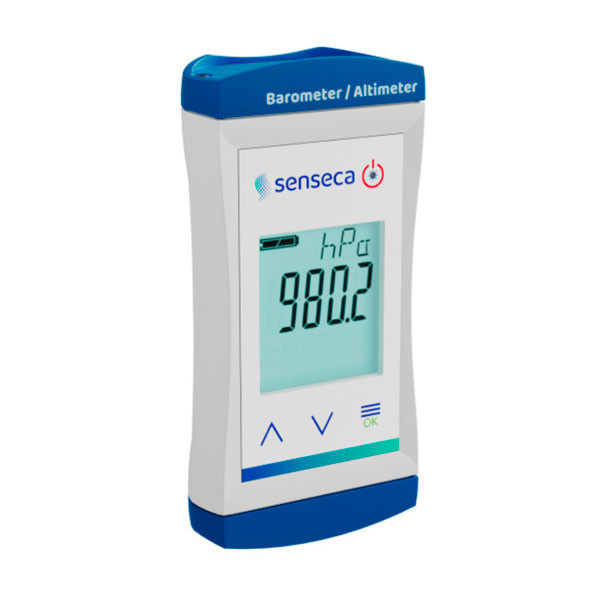

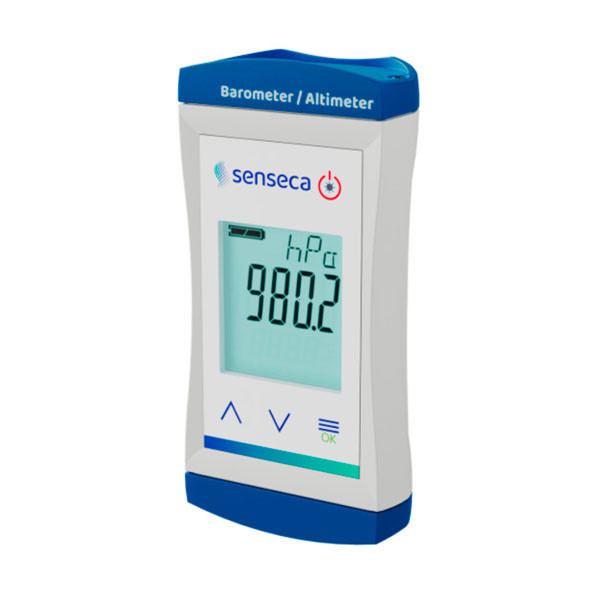

The ECO 230 sets a new benchmark in compact measurement technology. Designed with a clear focus on essential functionality and maximum reliability, this instrument features a high-end sensor that delivers fast, accurate, and high-resolution readings.

More details

Write a review

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Key Advantages

Made in Germany and protected by a rugged waterproof housing, the ECO 230 is the ideal solution for demanding professional environments — from industrial applications and aviation to meteorology and outdoor activities.

High-precision sensor with 0.1 hPa resolution and altitude resolution of 0.1 m
Rugged waterproof design rated IP67
Adjustable sea-level correction
Convenient altimeter height adjustment
Backlit 3-line LCD with wide viewing angle
Trend indicator usable as a variometer
Exceptional battery life up to 6000 hours
Maintenance-free, long-life sensor
Hold, Min/Max, and configurable averaging functions
Premium engineering – Made in Germany
Professional portable altimeter
Atmospheric pressure gauge

Professional Applications

Barometric sensors are critical components in modern technology, supporting engine control systems, navigation devices, smartphones, weather stations, and altitude calculations. With optional calibration certificates, the ECO 230 can also serve as a reliable reference instrument for verifying the accuracy of other devices.

Technical Specifications

Feature	Details
Measuring Range – Pressure	300.0 … 1100.0 hPa \| 4.350 … 15.950 PSI \| 225.0 … 825.0 mmHg
Measuring Range – Altitude	-500 … 9000 m \| -1640 … 19999 ft
Temperature Range	-20 … +50 °C
Accuracy	Barometer: ±1 hPa (typ.) \| Altimeter: ±1 m \| Temperature: ±0.5 °C
Measurement Rate	Fast: up to 2.5 measurements/sec \| Slow: 1 measurement/4 sec
Protection Class	IP67 (pressure inlet must remain dry)
Display	3-line backlit LCD with shatterproof screen
Power Supply	2 x AA batteries \| approx. 0.4 mA consumption
Battery Life	Up to 6000 hours (without backlight)
Dimensions / Weight	108 x 54 x 28 mm \| 140 g
Housing	Impact-resistant ABS with polyester front panel
Origin	Made in Germany
