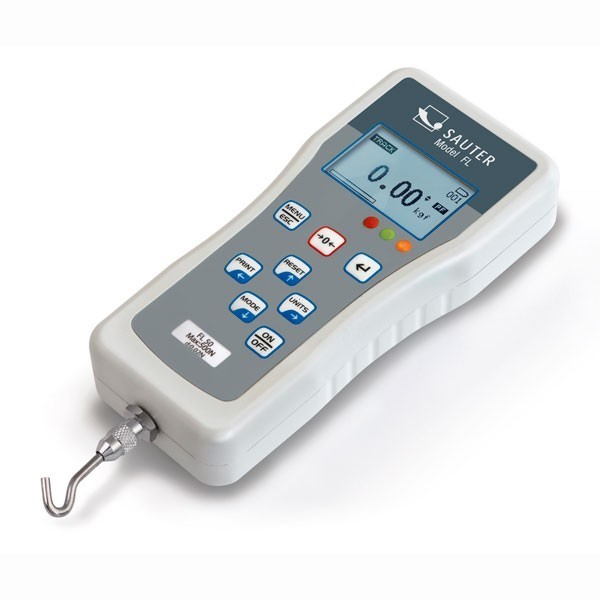

Digital Force Gauge, Product family FL Kern

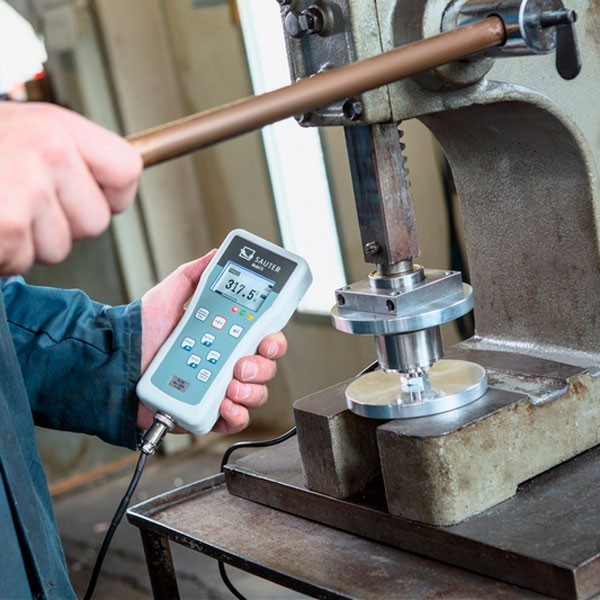

The FL product family force gauge can measure tensile and compressive forces with great precision and is easy to use. It can be held in the hand for measurements or installed on top of a suitable test bench.

Technical Data

• Force in the maximum measuring range: Between 5 N to 1 kN (Choose your measurement range from the drop-down list above "Add to Cart")
• Readability force: Between 0.002 to 0.5 N (Depending on the measuring range)
• Tolerance (% of max value) 0.2%
• Measuring frequency: 1000 Hz
• Number of platforms/channels: 1
• Power supply supplied: Accu and power supply
• Rechargeable battery: 4.8 V 750 mA
• Limit setting function
• Rotating display with backlight
• Peak-Hold function to capture the peak value or Track function to continuously view the measurement
• Metallic and lacquered casing for long-lasting use in harsh environmental conditions
• Can be installed on all SAUTER test benches up to 5 kN
• Capacity display: A bar lights up to display how much of the measuring range is still available
• Measurement with tolerance range (limit adjustment function): Adjustable upper and lower limit, in the direction of pulling and pushing. The process is supported by a visual signal
• Internal memory for 500 measurement values
• Continuous analog output: Linear voltage signal depending on load (-2 to +2V)
• USB data interface, standard
• Selectable measurement units: N, kN, kgf, lbf

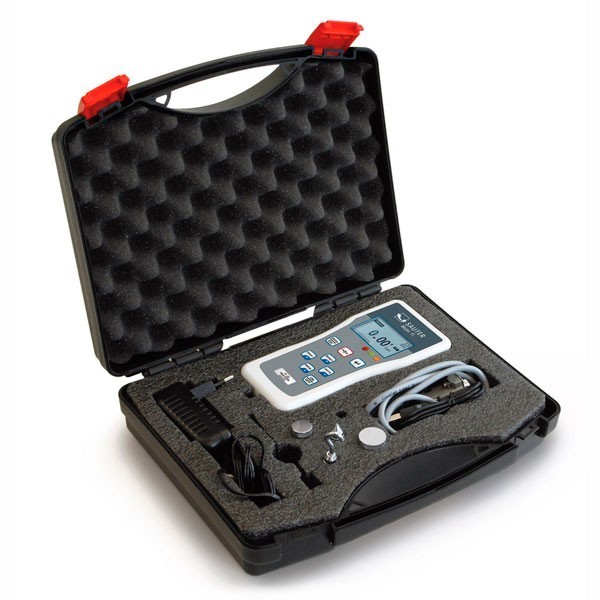

• It is supplied in a robust protective case
