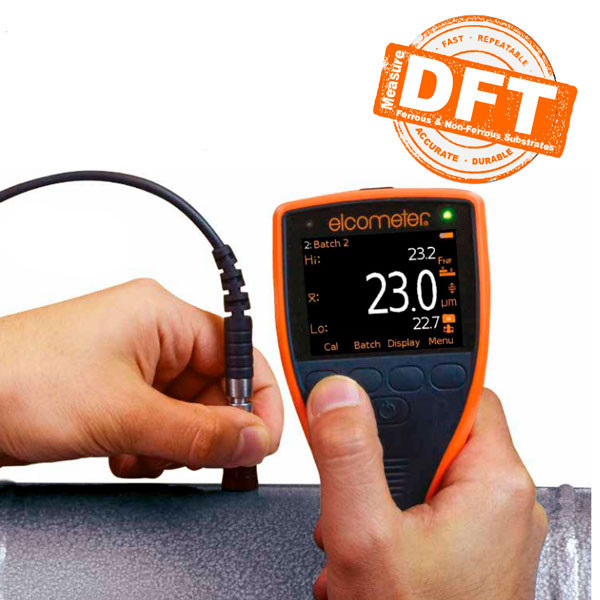

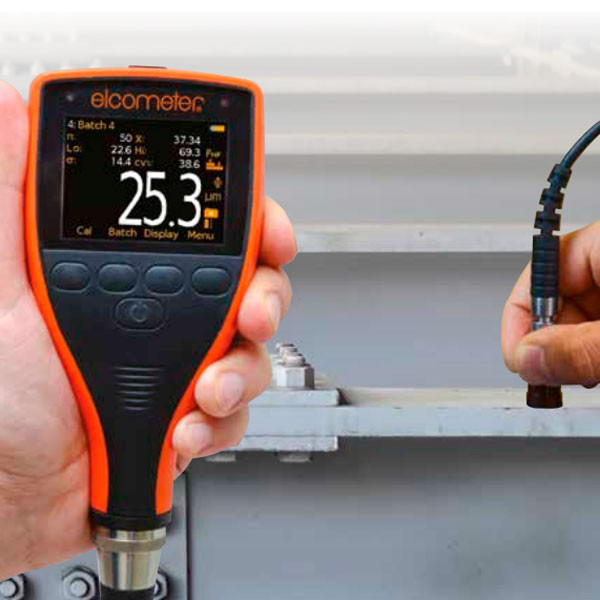

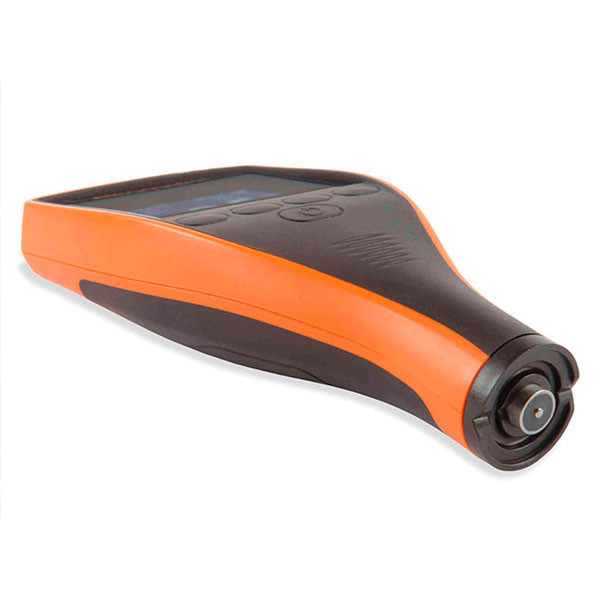

General description of the Elcometer 456 model – Model with Separate Probe

The Elcometer 456 Coating Thickness Gauge – Separate is a professional coating thickness meter designed for fast, accurate and repeatable measurements on metal substrates. Available with a wide range of interchangeable separate probes, this instrument provides outstanding flexibility for measuring paint thickness, dry film thickness, plating, galvanizing and other industrial coatings.

Built for demanding industrial environments, the Elcometer 456 combines accuracy up to ±1%, rapid reading speed, rugged construction and advanced memory and data output functions. It is an ideal solution for quality control, corrosion protection inspection, industrial painting, automotive applications, marine coating inspection, metal fabrication and industrial maintenance.

Key Benefits

• More than 70 readings per minute for fast coating inspection
• Up to 140 readings per minute with a Scan Probe
• Compatible with Ferrous (F), Non-Ferrous (N) and Dual FNF probes
• Accuracy up to ±1% in accordance with international standards
• Reliable readings on smooth, rough, thin and curved surfaces
• Memory capacity up to 150,000 readings in 2,500 batches
• USB and Bluetooth® connectivity for rapid data transfer
• Compatible with ElcoMaster® software and ElcoMaster® mobile app
• Rugged design with IP64 equivalent dust and water resistance
• Bright colour screen with permanent backlight and auto rotate display

Product Overview

The Elcometer 456 Separate has been developed to deliver greater measurement flexibility where access is limited or where the operator needs to select a specific probe according to substrate type and component geometry. This version is especially suitable for technical applications involving difficult access areas, complex structures and demanding industrial environments where flexibility matters.

Available in three versions — Model B, Model S and Model T — the gauge can match different inspection requirements. From a reliable entry-level solution to a top-tier model with advanced batch management, scan modes, review graphs and extended memory, the Elcometer 456 provides a scalable solution for professional coating inspection.

Fast Measurements and Improved Productivity

Speed is essential in industrial inspection workflows. The Elcometer 456 provides more than 70 readings per minute, allowing inspectors to increase productivity without compromising reliability. When used with a Scan Probe, performance can exceed 140 readings per minute, making it ideal for large surface inspections and high-volume quality control routines.

Accuracy and Repeatability

Accuracy is critical in coating thickness measurement. The Elcometer 456 is engineered to deliver repeatable and reproducible readings across different surface profiles, including smooth, rough, curved and thin materials. With accuracy up to ±1%, the gauge meets the requirements of multiple international coating inspection standards and supports reliable documentation and compliance.

Memory, Batches and Data Output

Depending on the model, the Elcometer 456 can store from the most recent readings up to 150,000 measurements organised into 2,500 batches. Alphanumeric batch identification and model-dependent individual calibration memory make the instrument highly suitable for structured quality control processes and traceable inspection routines.

Data can be transferred through USB or Bluetooth® to a PC, tablet or mobile device. Combined with ElcoMaster®, users can analyse results, create professional inspection reports, organise projects and improve process traceability.

Rugged and Easy to Use

Designed for daily industrial use, the Elcometer 456 features a rugged body with excellent impact resistance and protection against dust and water. The bright 2.4” colour TFT display with permanent backlight provides excellent visibility in indoor and outdoor environments. Large tactile buttons make operation easier, even while wearing gloves.

• Simple menu structure in 30+ languages
• Automatic screen rotation at 0°, 90°, 180° and 270°
• Ambient light sensor with adjustable auto brightness
• Tap awake function from sleep mode
• Integrated emergency light
• Scratch and solvent resistant display

Why Calibration Matters

In formal quality systems such as those described in ISO 9001, coating thickness gauges must be properly controlled, logged and calibrated. The Elcometer 456 supports multiple calibration methods, including factory calibration, 2-point calibration, 1-point zero calibration and zero offset in accordance with ISO 19840.

To achieve the best possible performance and take full advantage of the gauge’s accuracy, it is recommended to use traceable coating thickness standards, including certified foils and zero test plates. This helps ensure reliable measurements and compliance with specification requirements.

Recommended Applications

• Industrial paint inspection
• Protective coating thickness control
• Automotive finishing and refinish inspection
• Structural steel and construction projects
• Marine and offshore coating inspection
• Galvanizing and surface treatment verification
• Metal fabrication and manufacturing quality control
• Industrial maintenance and audit routines

Model Feature Comparison

Technical Specifications

Part Numbers by Model

Standards and Compliance

The Elcometer 456 complies with a wide range of internationally recognised coating thickness measurement standards for industrial, marine, automotive and protective coating applications.

Why Choose the Elcometer 456 Separate

If you need a professional coating thickness gauge that combines measurement accuracy, speed, rugged design and advanced data handling, the Elcometer 456 Separate is one of the leading solutions in its class. Its ability to work with multiple probes, store large volumes of readings and integrate with reporting software makes it a complete solution for modern inspection requirements.

Important Notes

The Elcometer 456 is supplied with a 1-year warranty against manufacturing defects. The warranty can be extended free of charge to 2 years when the product is registered within 60 days of purchase.

Battery life may vary depending on battery type and operating settings. Some software integrations and updates may require an internet connection.
