Torque Testing for Threaded Closures 0,05 Nm – 1 Nm
DA 1-4
New product

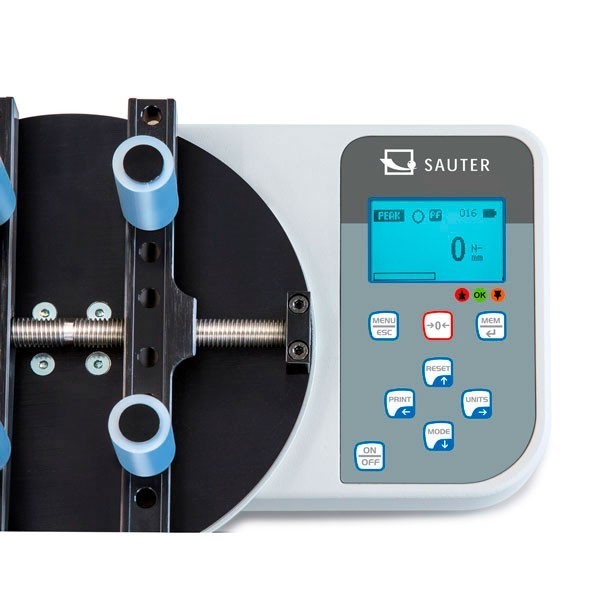

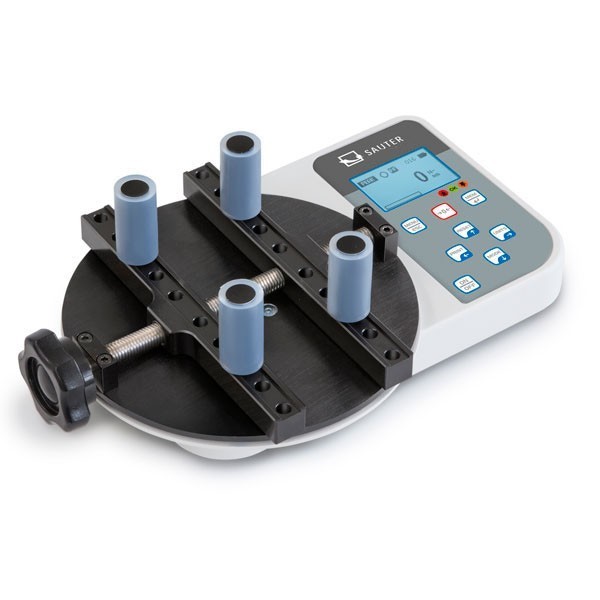

DA 1-4 – Comfortable Torque Testing for Threaded Closures
Brand: Kern & Sohn
Product Description
Optimize torque verification of bottles, jars, and other packaging with threaded closures — ideal for food, pharmaceutical, and cosmetic industries.
Optional
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Main Features
- Quick-Pin System: Fast bottle fixation without screwing, enabling quicker changeovers for different sizes.
- Durable Construction: Powder-coated metal housing for rugged industrial environments.
- Capacity Indicator: Illuminated scale shows remaining weighing capacity.
- High-visibility Backlit LCD Graphic Display.
- Secure Base: Non-slip rubber feet for stable operation.
- Internal Memory: Stores up to 500 measurement values; exportable via optional software.

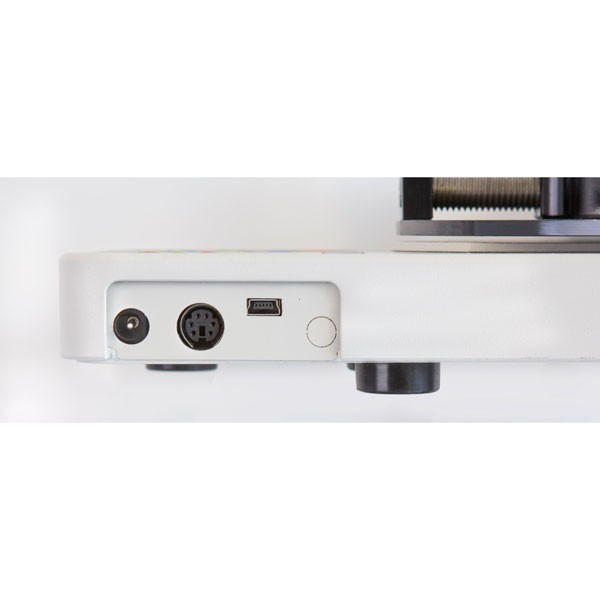

- Integrated Interfaces: USB and RS-232 included.
- Advanced Modes: Peak-Hold and Track modes; tolerance range with visual and audio alerts.
- Bidirectional operation supported.
- Energy-saving AUTO-OFF function.

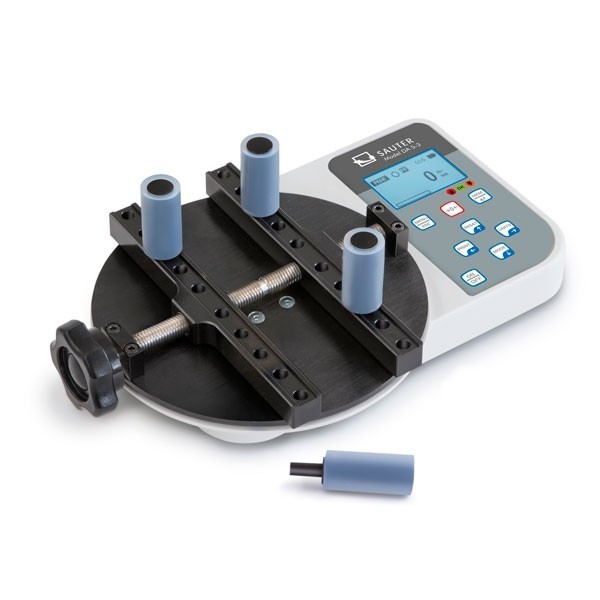

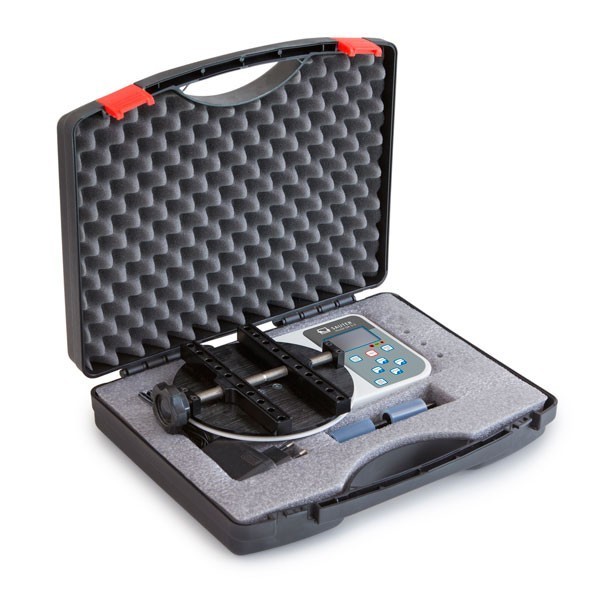

- Includes: 4 rubber-covered bottle clamps + rugged transport case.
Key Benefits
- Enhanced efficiency for torque testing
- Minimized setup time in production lines
- Reliable and durable in demanding conditions
- High-precision with memory and connectivity options
Applications
Perfect for quality control in:

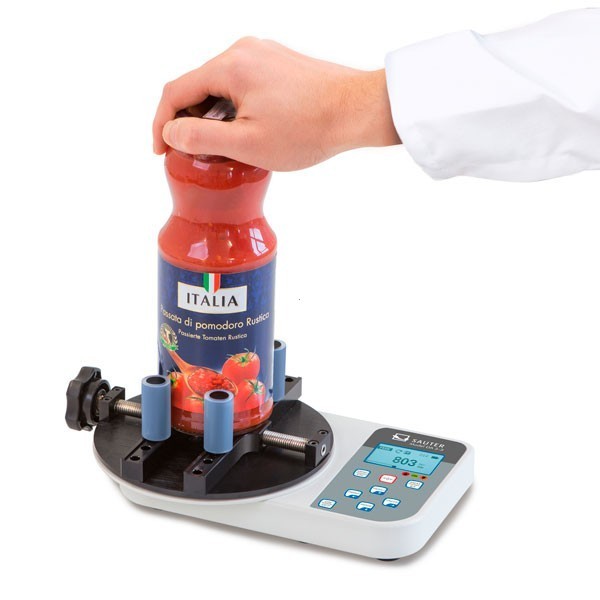

- Food industry (bottles, jars with lids)
- Cosmetic manufacturing (lipsticks, cream jars)

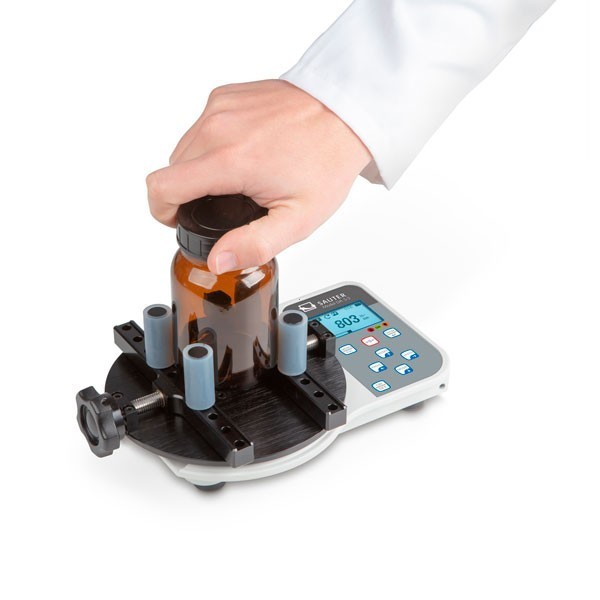

- Pharmaceutical packaging (threaded containers)
Technical Specifications
| Torque Range | 0.05 Nm – 1 Nm |
|---|---|
| Resolution | 0.2 mNm |
| Accuracy | ±0.5% [Max] |
| Units | Nm, kgf/cm, kgf/m, in/lbs, ft/lbs |
| Max Object Diameter | 16 cm |
| Overload Protection | 120% |
| Data Memory | Stores 500 readings |
| Modes | Peak-Hold, Track, Limit Value Function |
| Sampling Rate | 1000 Hz |
| Power Supply | NiMH battery + power adapter |
| Battery Life (No Backlight) | 18 hours |
| Auto-Off Interval | 1 - 60 min |
| Interfaces | RS-232, USB |
| Display | Backlit LCD, 128×64 pixels |
| Housing Material | Powder-coated metal |
| Dimensions (W×D×H) | 100×160×250 mm |
| EAN | 4045761193406 |
