Inspection Camera PCE-TC 28 PCE Instruments

Ideal for preventive maintenance, technical inspections, and quality control, the PCE-TC 28 offers an excellent price-performance ratio, combining cutting-edge technology with intuitive operation.

Product Description

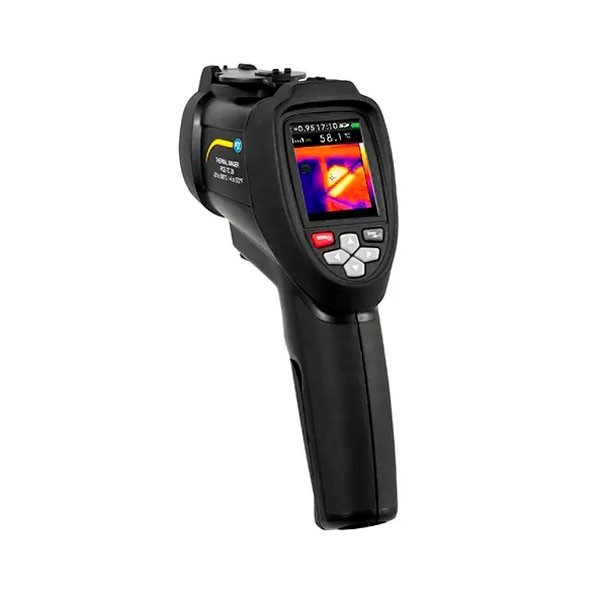

The PCE-TC 28 thermal imaging camera has been developed for non-contact temperature measurement, offering an effective and precise solution for both industrial applications and domestic use.

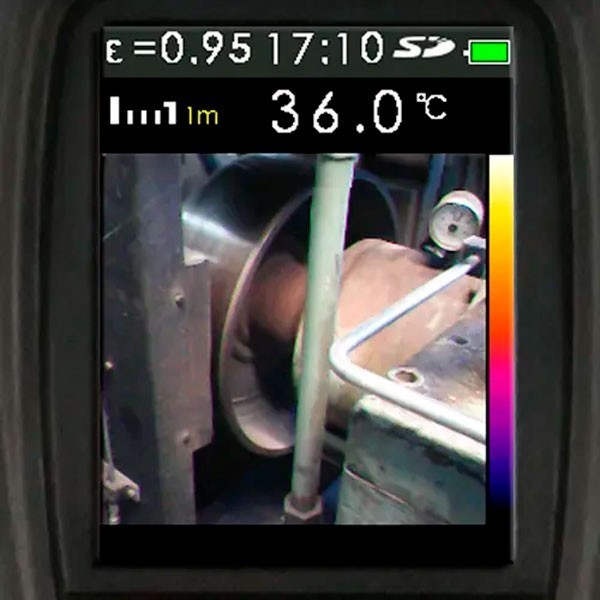

With an adjustable emissivity setting, this camera enables accurate measurements on various surfaces. It features a built-in color camera and allows thermal and real image overlay, making it easier to accurately identify the measurement area.

Key features include:

✅ Non-contact temperature measurement up to 600 ºC
✅ Configurable alarm limits with audible alerts when thresholds are exceeded
✅ Auto shut-off for optimized power management
✅ Parallax correction between visual and thermal images, with adjustable measuring distance from 0.5 to 3 meters

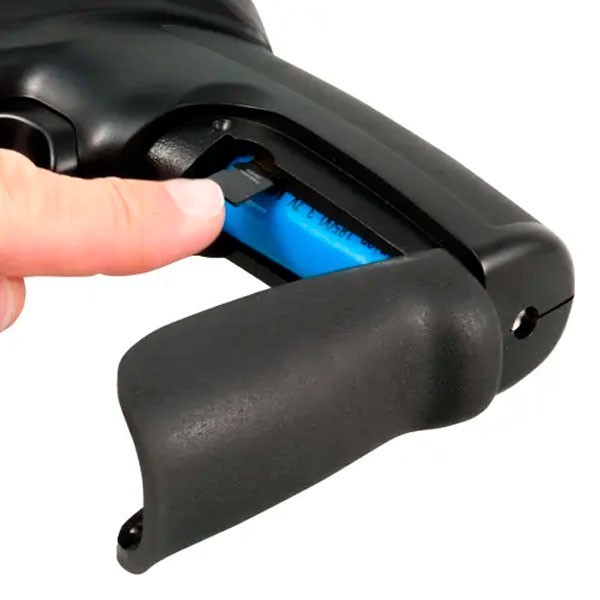

✅ Micro SD card slot with capacity to store up to 6000 images per GB

For maximum measurement reliability, an ISO calibration certificate is optionally available upon request.

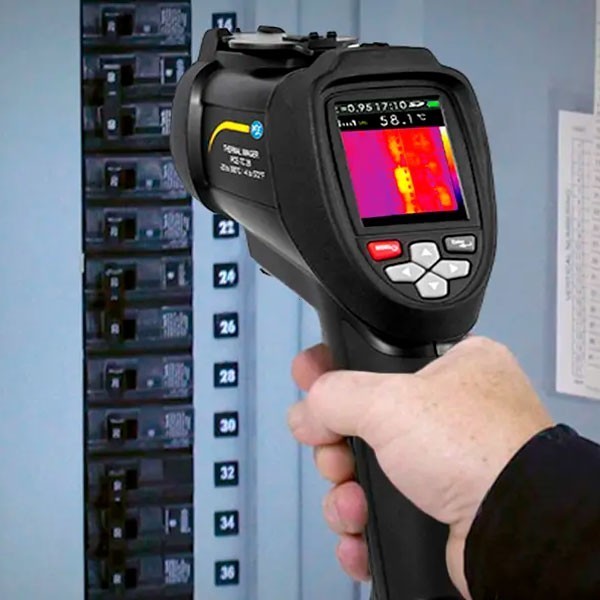

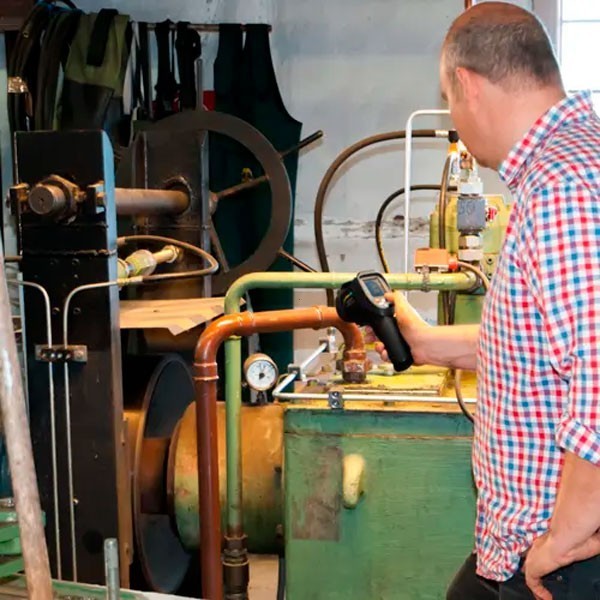

The PCE-TC 28 is an essential tool for preventive maintenance, technical inspections, energy diagnostics, and other applications requiring precise and efficient thermal monitoring.

Key Features

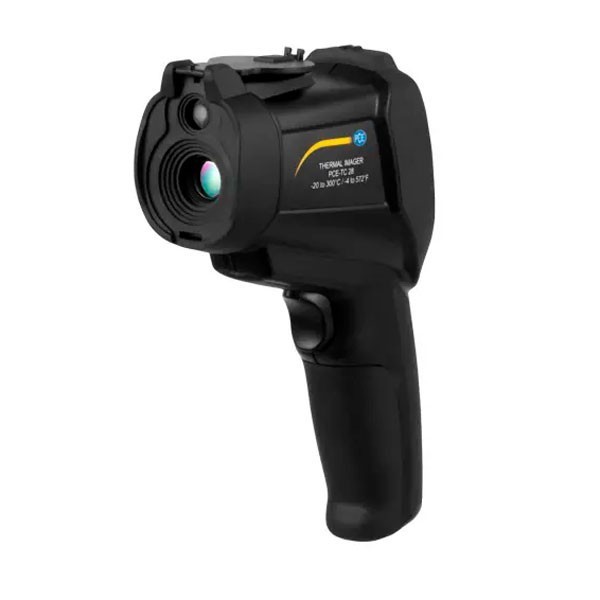

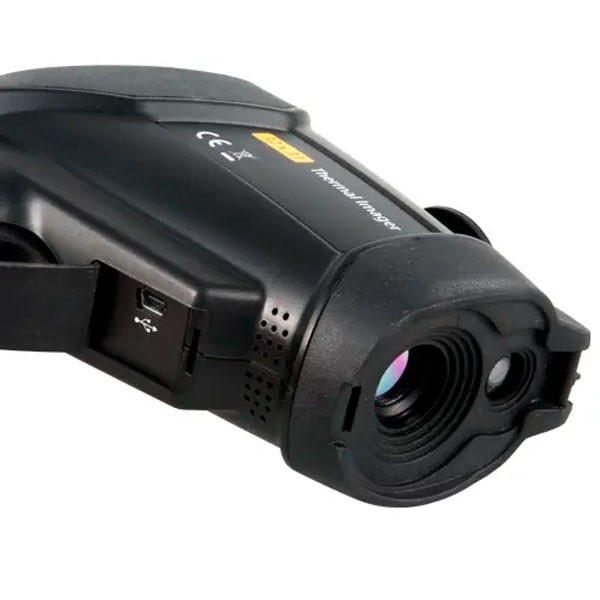

• Integrated color camera for real environment visualization
• Adjustable emissivity for accurate measurements on different materials
• Fast measurement rate, ideal for quick diagnostics
• Clear indication of minimum (MIN) and maximum (MAX) values detected
• Interchangeable Li-Ion battery for extended runtime and flexibility
• Automatic power-off function for energy saving

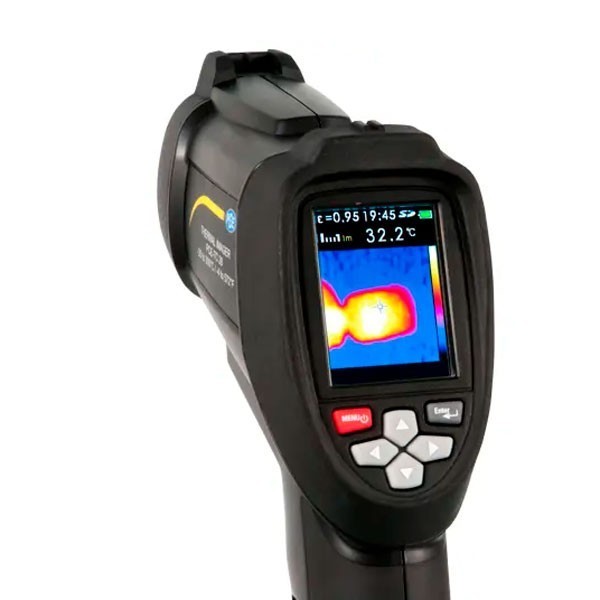

• Backlit TFT color display for easy readability in all lighting conditions
• Protective lens cover ensures device durability and safety

Technical Specifications

Temperature

• Measuring range: -20 … +600 °C
• Accuracy: ±2% or ±2 ºC (at 25 ºC)
• Resolution: 0.1 °C
• Emissivity: Adjustable from 0.1 to 1.0
• Thermal resolution: 32 x 32 pixels
• Field of view (FOV): 33 x 33°
• Focus: Fixed
• On-screen emissivity correction: Yes
• Background temperature adjustment: Yes

Imaging

• Frame rate: 9 Hz
• Sensor type: Uncooled ceramic pyroelectric
• Thermal sensitivity (NETD): 100 mK
• Spectral range: 8 … 14 µm
• Available color palettes:
  • Hot Metal
  • Grayscale (white and black hot)
  • Ironbow
  • Rainbow High Contrast
• Focus mechanism: Fixed
• Parallax correction (real vs. thermal image): 0.5 m / 1.0 m / 2.0 m / 3.0 m

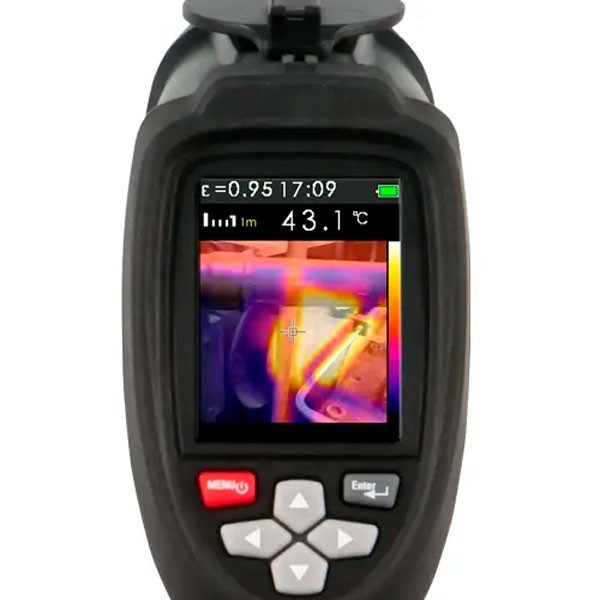

• Image overlay (visual/thermal): 0 / 25 / 50 / 75 / 100%
• Hottest and coldest point detection: Yes

Image and Data Storage

• Image capture: Preview before saving
• Storage medium: Micro SD card
• Capacity: 1 GB stores approx. 6000 images
• Image format: .bmp
• Image navigation: Direct preview on device

Alarms and Interface

• Alarm limits: High / Low, configurable with audible alert
• Menu languages: German / Spanish / French / English / Italian

Display and Power Supply

• Display: 2.2" color LCD (320 x 240 pixels)
• Power supply: Rechargeable Li-Ion battery

Environmental Conditions

• Operating temperature: 0 … +50 °C
• Storage temperature: -20 … +60 °C
• Relative humidity: 10 … 90%, non-condensing

Dimensions and Weight

• Dimensions: 225 x 130 x 58 mm
• Weight: 400 g

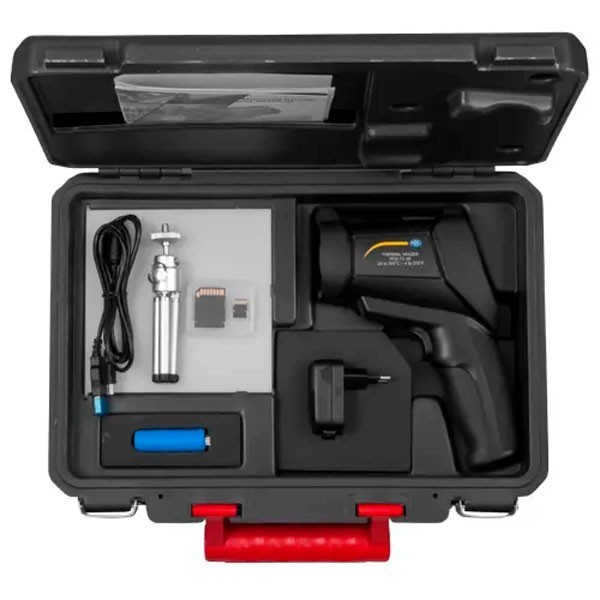

Delivery Scope
✅ 1 x Thermometer PCE-TC 28
✅ 1 x Rechargeable Li-Ion battery
✅ 1 x USB data cable
✅ 1 x Mini tripod
✅ 1 x Mains adapter
✅ 1 x Carrying case
✅ 1 x User manual
