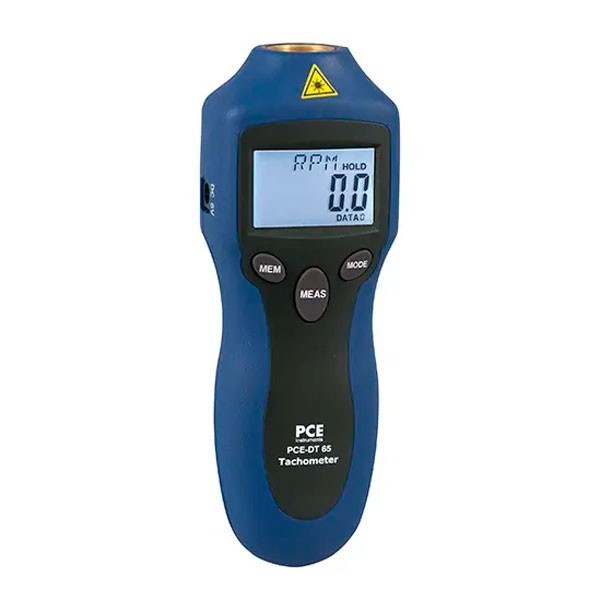

Laser Tachometer PCE-DT 65 PCE Instruments

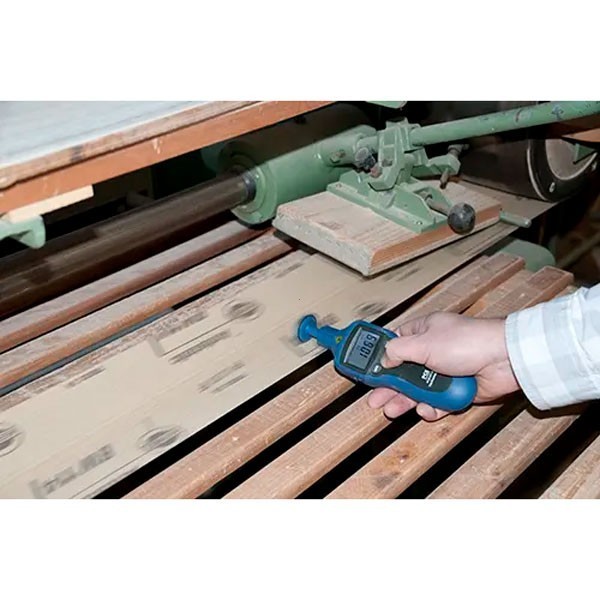

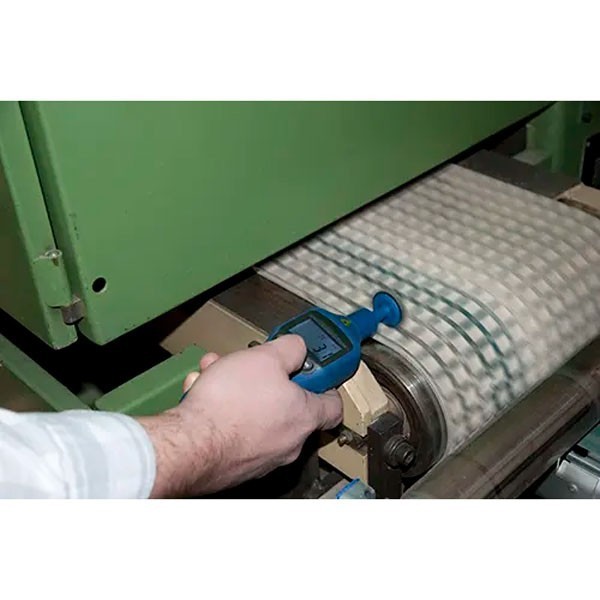

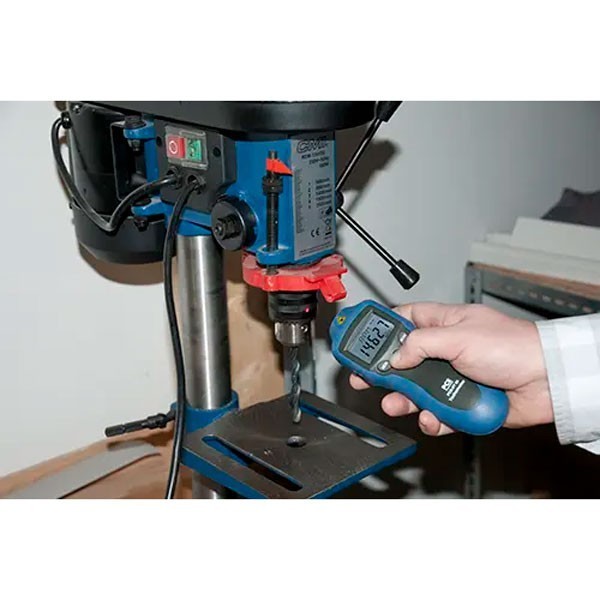

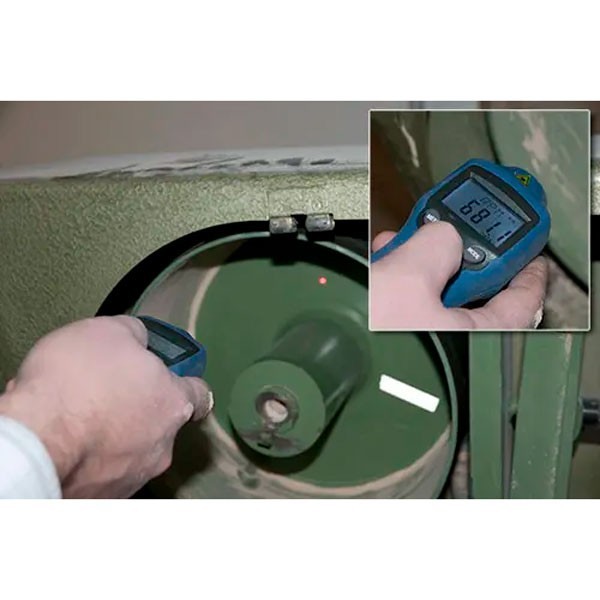

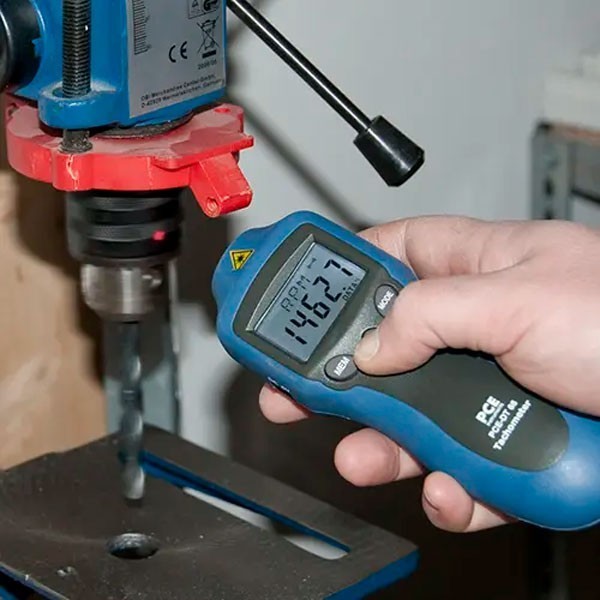

Non-contact measurements are performed via a laser beam that reflects off a reflective strip attached to the rotating object. For contact measurements, mechanical adapters allow the device to measure revolutions or the surface speed of moving objects. Length or speed measurements can also be made using a measuring wheel attachment.

With a robust ABS housing, backlit digital display, and internal memory for storing readings, the PCE-DT 65 offers accuracy, ease of use, and durability for both industrial and maintenance applications.

Key Features

✅ Rotational speed measurement (r.p.m.) via contact or laser
✅ Surface speed measurement (m/min)
✅ Revolution counter
✅ Frequency measurement (Hz)
✅ Length measurement (m, inch, ft, yd)
✅ Durable ABS plastic housing
✅ Easy and intuitive operation
✅ Powered by 9 V battery or optional 6 V power adapter
✅ Backlit LCD for clear readings

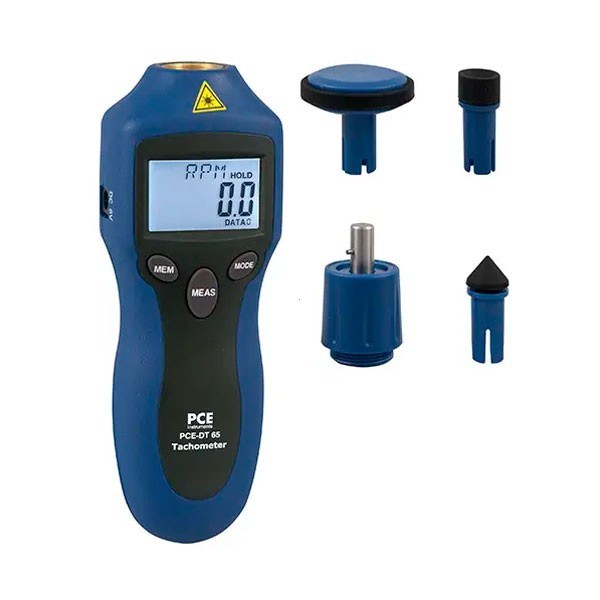

✅ Includes adapters for mechanical measurements

Technical Specifications

• Laser/optical measurement range: 2 ... 99,999 r.p.m.
• Mechanical measurement range: 2 ... 20,000 r.p.m.
• Resolution:
  • 0.1 r.p.m. (2.0 ... 9,999.9 r.p.m.)
  • 1 r.p.m. (10,000 ... 99,999 r.p.m.)
• Accuracy: ± 0.05% of reading ±1 digit
• Measuring distance (non-contact): 50 ... 500 mm
• Memory: Stores up to 10 readings
• Power supply: 1 x 9 V battery or 6 V external power adapter
• Operating temperature: 0 ... 50 °C
• Housing material: ABS plastic
• Display: 5-digit LCD, digit height: 22 mm
• Dimensions: 160 x 60 x 42 mm
• Weight: 200 g

Package Contents

✅ 1 x PCE-DT 65 Laser Tachometer
✅ 1 x Set of mechanical adapters
✅ 1 x Measuring wheel
✅ 1 x External cone tip
✅ 1 x Internal cone tip
✅ 1 x Carrying case
✅ 1 x 9 V battery
✅ 3 x Reflective strips (20 cm each)
✅ 1 x User manual
