> >Data Logger for Temperatures up to 140 °C Dostmann HOT LOG HL 5005-0900
New Data Logger for Temperatures up to 140 °C Dostmann HOT LOG HL 5005-0900 View larger

Data Logger for Temperatures up to 140 °C Dostmann HOT LOG HL 5005-0900

New product

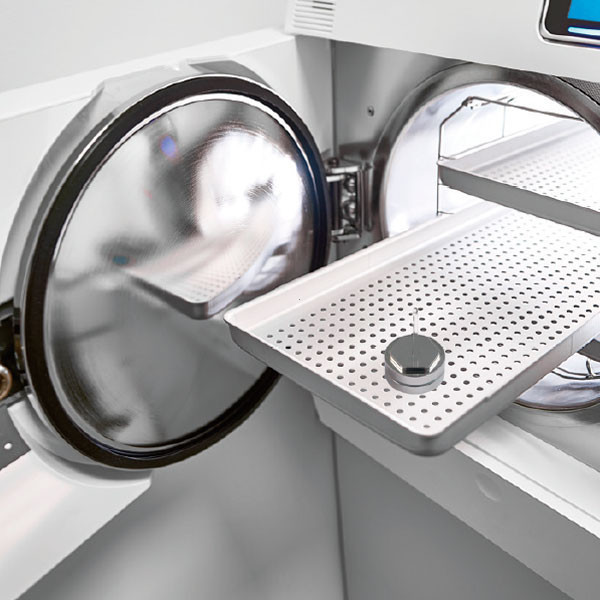

The Dostmann HOT LOG HL is a high-temperature data logger designed for reliable temperature monitoring and recording during sterilization, pasteurization, and other demanding processes up to 140 °C. With a robust AISI 316L stainless-steel housing and IP68 pressure-tight protection (10 bar/24h), it is an excellent choice for the food, pharmaceutical, hospital, and laboratory sectors.

More details

538,80€ tax excl.

Add to wishlist

More info

Key benefits for validation, compliance, and quality control

Improve process control with high-resolution measurements (0.01 °C), a 60,000-point memory, and secure data capture for audits and traceability. The device supports automatic F0 and L value calculation, helping you document thermal lethality in food applications and validate critical cycles in regulated environments. Plus, the software is free, enabling easy reporting and long-term record keeping.

Typical applications

  • Steam sterilization and thermal disinfection (hospital and pharma workflows)
  • Pasteurization and thermal processing in the food industry
  • Laboratory temperature validation and data recording
  • Quality control in production lines and medium-scale manufacturing

What makes the HOT LOG HL different

  • Up to 140 °C with an internal probe for stable measurements
  • IP68 and pressure resistance up to 10 bar (fully hermetic)
  • Auto start/stop when a preset temperature threshold is reached
  • MultiLog for multiple logging cycles (up to 500, depending on interval and duration)
  • User-replaceable battery with long service life
  • USB interface via reading unit

Reference: 5005-0900
Important: the 5090-0900 reading unit is required for USB communication and data download.

Technical specifications

Technical specificationHOT LOG HL – Data Logger up to 140 °C
Measurement range-40…+140 °C
Resolution0.01 °C
Accuracy±0.25 °C (calibrated range -40 °C…+125 °C; otherwise ±0.3 °C)
Memory capacity60,000 records
Logging interval1 second to 24 hours
Ingress/pressure protectionIP68 (10 bar / 24h)
Temperature probeInternal
InterfaceUSB via reading unit
Power supplyLiSoCl2 3.6V 1/2AA (high temperature)
Battery lifeApprox. 3 years (battery model dependent) or approx. 5,000,000 measurements
HousingAISI 316L stainless steel, silicone sealing ring
Dimensions23 x Ø 40 mm
WeightApprox. 75 g
Hermetic & pressure resistantUp to 10 bar
Stainless steel gradeFood/pharma grade AISI 316L
Start / StopAutomatic logging start/stop at a preset temperature
MultiLogMultiple logging cycles (up to 500, depending on interval and duration)
Automatic calculationF0 and L values
BatteryUser-replaceable

Note: It is necessary to have the reading unit 5090-0900 for the HOT LOG datalogger

Reviews

Write a review

Data Logger for Temperatures up to 140 °C Dostmann HOT LOG HL 5005-0900

Data Logger for Temperatures up to 140 °C Dostmann HOT LOG HL 5005-0900

The Dostmann HOT LOG HL is a high-temperature data logger designed for reliable temperature monitoring and recording during sterilization, pasteurization, and other demanding processes up to 140 °C. With a robust AISI 316L stainless-steel housing and IP68 pressure-tight protection (10 bar/24h), it is an excellent choice for the food, pharmaceutical, hospital, and laboratory sectors.

Accessories
