Description

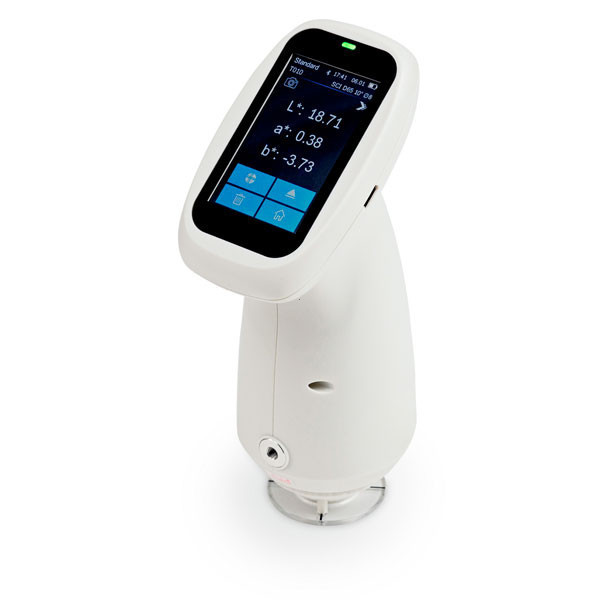

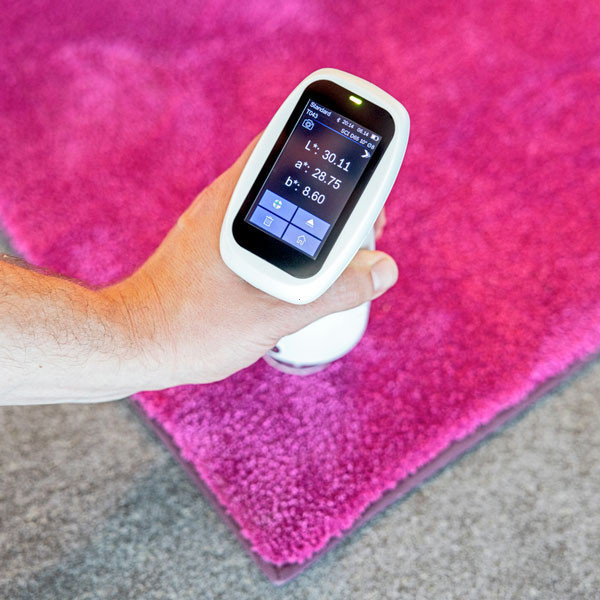

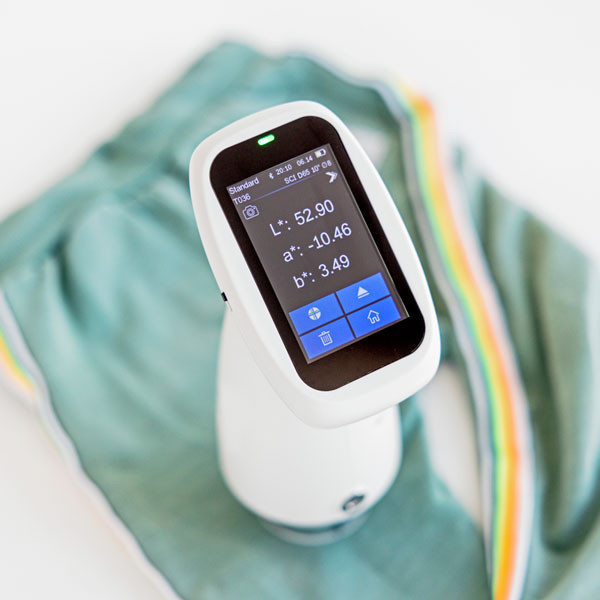

The JCS 200 is a highly precise colour spectrometer designed to accurately measure wavelengths and colour spectra across diverse materials. Users can easily select the appropriate measuring standard for their specific sample type—whether textiles, metallic products, plastics, cosmetics, and more. The device delivers multiple precise values, enabling clear identification and thorough documentation of colour differences. Although these values do not correspond to a specific colour code, they provide objective and comparable measurements for reliable quality control.

This spectrometer offers selectable observation angles of 2° or 10°, multiple light source modes, and a variety of colour spaces to suit different measurement needs. Its geometric optical D/8 design, capturing light reflected at an 8° angle, ensures compatibility with a wide range of surface types and materials.

Featuring a dual optical path system, the JCS 200 simultaneously records both SCI and SCE spectra, enabling comprehensive and precise colour characterization that accounts for gloss variations. The integrated LED light source also supports fluorescence measurements, enhancing versatility.

A protected, integrated white reference panel guarantees consistent accuracy by preventing contamination. The device boasts a portable, robust design that is wobble-free, dustproof, and shockproof—ideal for both laboratory and industrial environments.

With a full spectrum LED light source, the JCS 200 offers long service life and low power consumption. It is optimized for rigorous colour quality control across industries such as textiles, printing, ceramics, food processing, and cosmetics.

Additional features include a standard USB interface for fast data transfer, rapid and simultaneous SCI and SCE measurements within seconds, and a user-friendly colour touchscreen display. The spectrometer supports a wide range of calibration algorithms and complies with numerous national and international standards and parameters, including spectral reflectance, whiteness indices (ASTM E313, CIE/ISO, AATCC, Hunter), yellowness indices (ASTM 01925, ASTM 313), colour spectrum indices, colour fastness, authenticity, thickness, coverage rate, 555 colour classification, and Munsell (C2).

Key Features & Benefits

• Customizable measurement standards tailored to the material type (textiles, metallic products, plastics, cosmetics, and more).
• Detailed output values enabling clear identification and documentation of colour differences with objective comparability.
• Selectable standard observation angles of 2° or 10°, with various light source modes.
• Geometric optical D/8 design optimized for a wide range of materials and surface types.
• Simultaneous SCI and SCE spectrum measurement for comprehensive colour characterization, accounting for gloss and non-gloss conditions.
• LED light source included for enhanced fluorescence measurement support.
• Integrated white reference panel with contamination protection to ensure ongoing measurement accuracy.
• Portable, robust, dustproof, and shock-resistant design for reliable field and laboratory use.
• Long-lasting LED light source with low energy consumption.
• Standard USB interface for fast, efficient data transfer.
• Intuitive colour touch display for easy operation.
• Supports diverse calibration algorithms and numerous national and international standards and parameters.

Applications

• Plastics Technology
• Paint and Coating Industry
• Furniture Manufacturing
• Packaging and Printing Industry
• Textile and Apparel Industry
• Cosmetics Industry

Technical Specifications
