PCE-HT 225E Digital Concrete Test Hammer

Designed for ease of use and durability on site, this instrument features a high-resolution LCD display and a built-in voice function (English) that announces the measured value — ideal for use in hard-to-access or poorly lit areas.

It automatically converts rebound values into accurate test data, displayed instantly on screen. With an internal memory for up to 200 measurements, USB connectivity, and included software, this device allows for easy data transfer, analysis, and reporting on your PC.

Fully compliant with ASTM C805 and EN 12504-2, the PCE-HT 225E ensures your testing meets international quality standards.

Key Features
✅ High-resolution LCD display
✅ Voice function announces measured values (in English)
✅ Non-destructive testing of concrete hardness
✅ Stores up to 200 test results
✅ USB interface for data transfer
✅ Software included for data analysis
✅ Complies with ASTM C805 and EN 12504-2 standar

Technical Specifications

• Impact energy: 2.207 J (2.207 Nm)
• Spring constant: 785 N/m
• Spring extension: 75 mm ± 0.3 mm
• Calibration value: 80 ± 2
• Spherical tip radius: 25 mm ± 1 mm
• Interface: USB 2.0
• Memory capacity: Stores over 200 measurements
• Display: LCD, 176 x 220 pixels
• Power supply: 1 x 3.7 V AA lithium battery (not included)
• Weight: 1.1 kg
• Dimensions: Ø 54 x 280 mm

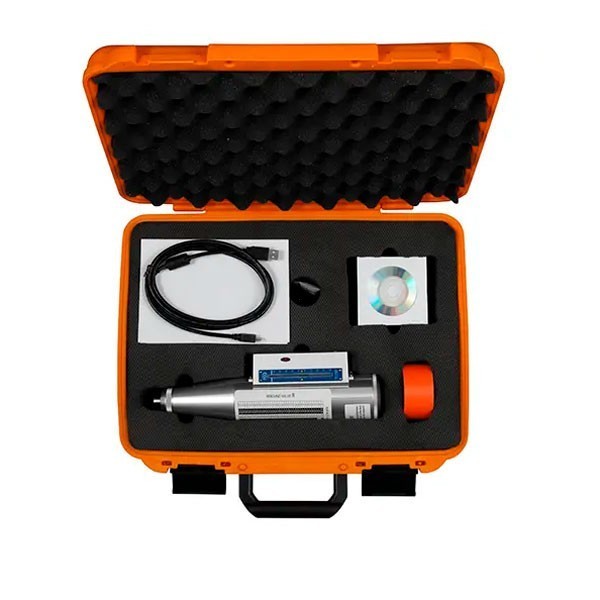

What's in the Box

• 1 x PCE-HT 225E Digital Test Hammer
• 1 x Hard carrying case
• 1 x USB cable
• 1 x Grinding stone for surface preparation
• 1 x Data analysis software
• 1 x User manual

✅ Ideal for civil engineers, materials testing laboratories and construction professionals who need fast, accurate and non-destructive hardness testing of concrete surfaces.

✅ In stock – ready for immediate dispatch
✅ Includes warranty and technical support
