With support for up to 100 meters and 1,000 variables, the device can also retrieve measurements from other network devices through SNMP, Modbus TCP, MQTT and HWg XML. Measurements from several sources can therefore be brought together in a single data concentrator for industrial, technical and environmental monitoring.

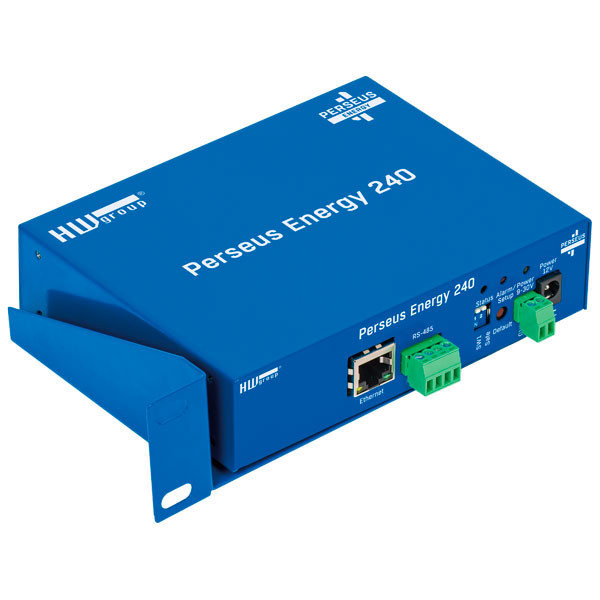

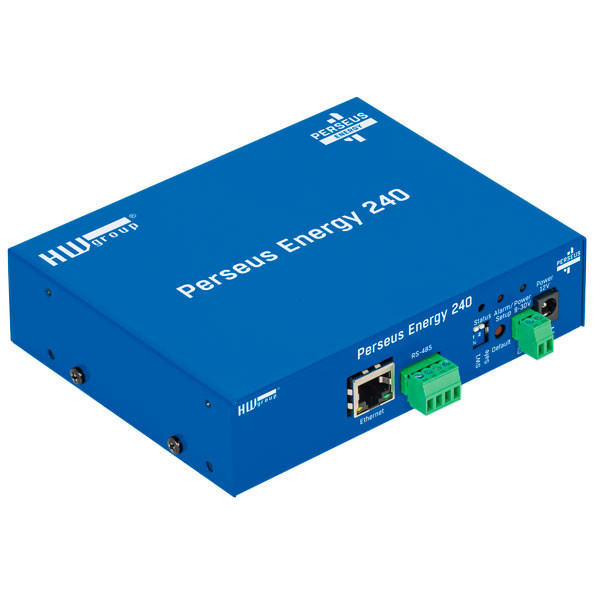

Using Modbus/RTU over RS-485 as the input and Modbus TCP over Ethernet as the output, the Perseus Energy 240 functions as a Modbus RTU to TCP gateway. Collected data can also be made available through MQTT, SNMP and XML for integration with third-party SCADA, network management and monitoring applications.

Local data processing includes Conditions and Actions, virtual sensors, calendar-based or periodic scheduling and Lua scripts. These features enable the gateway to evaluate measurements and apply customised rules or supported alarm actions without relying solely on a remote portal.

Key Benefits

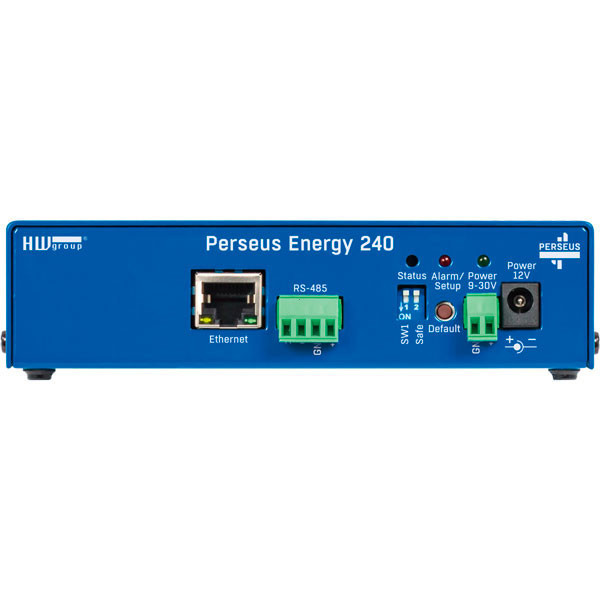

• 1 × RS-485 Modbus/RTU interface with terminal-block connection.
• 10/100 Mbps Ethernet with an integrated web server.
• Support for up to 100 meters and 1,000 variables.

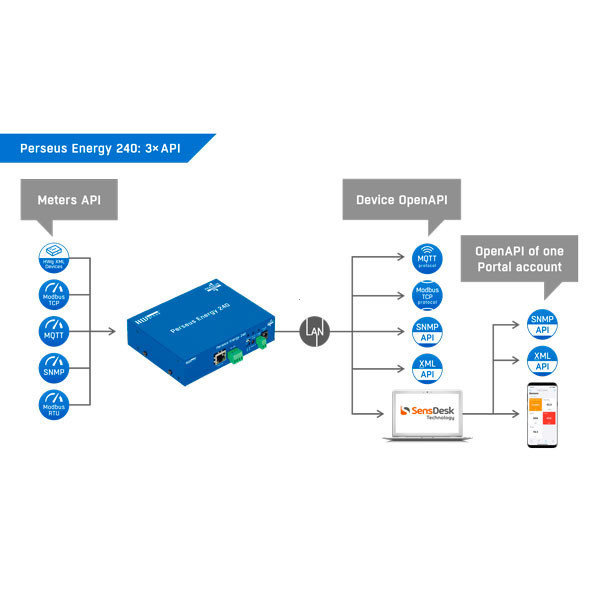

• Open API: SNMP, XML, Modbus TCP, MQTT and BACnet/TCP.
• Meters API: Modbus/RTU, Modbus TCP, SNMP, MQTT and HWg XML.
• IPv6, SNMPv3 and HTTPS with custom certificate support.
• RADIUS / IEEE 802.1X authentication and administrator/user accounts.
• Device-generated email and SNMP Trap alarms.
• SMS and voice call alerts with a compatible external SMS gateway or supported portal service.
• Conditions and Actions, virtual sensors and scheduler for local automation.
• Lua scripts for customised data processing and monitoring rules.

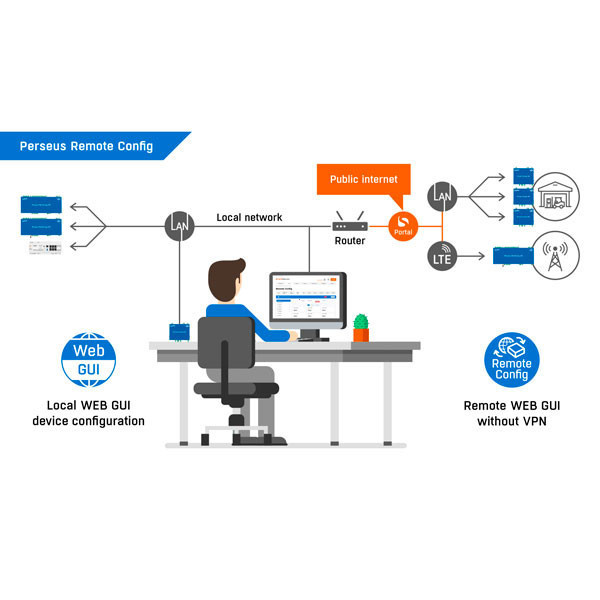

• Remote configuration through SensDesk Technology.

Recommended Applications

The Perseus Energy 240 is intended for installations that need to consolidate RS-485 measurement data, integrate existing meters into Ethernet networks or establish remote monitoring across multiple sites.

• Modbus RTU to Modbus TCP gateway applications
• Remote machine and industrial equipment monitoring
• Warehouse and storage environment monitoring
• Technical rooms and remote site monitoring
• Centralised acquisition of local sensor and meter readings
• Telecommunications cabinets and remote telecommunications sites
• Pharmaceutical facilities and warehouses
• Remote base transceiver station monitoring
• Greenhouses and agricultural monitoring

Modbus, MQTT, SNMP and SensDesk Integration

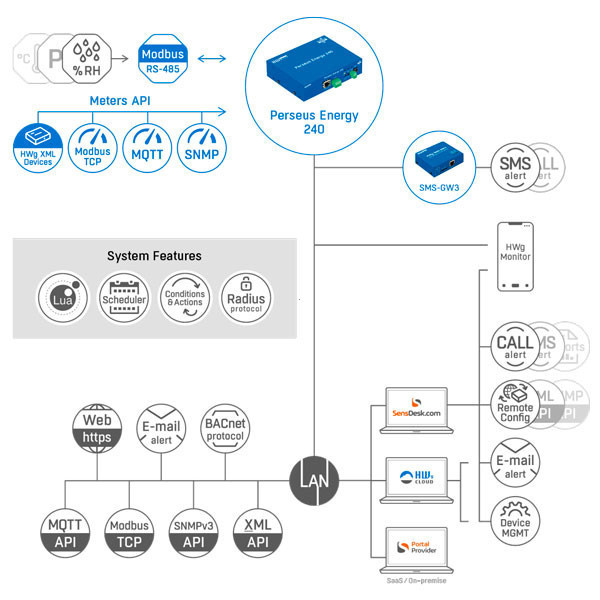

The Perseus Energy 240 combines measurements from physical sensors and meters connected via RS-485 Modbus/RTU with data received from compatible LAN devices. Information can then be transmitted to a SensDesk Technology-based portal or shared directly with third-party systems through the device’s Open API.

This makes the gateway suitable for Modbus RTU to Modbus TCP conversion as well as integration through MQTT or SNMP. It helps connect established industrial instruments with Ethernet-based monitoring, SCADA and Industrial IoT platforms.

Local Alarms and Data Processing

Measured values can be analysed locally using configurable Conditions and Actions, virtual sensors, scheduled operations and Lua scripts. The device can issue standalone alerts via email or SNMP Trap. SMS and calls require a compatible external SMS gateway, or a portal plan offering those services.

With a compatible SensDesk Technology portal, data can be centrally monitored using graphs and alarm management. Depending on the selected portal and service plan, additional functions may include device-disconnection alerts, long-term trends, virtual sensors, PDF reports, SMS or voice notifications and multi-user access.

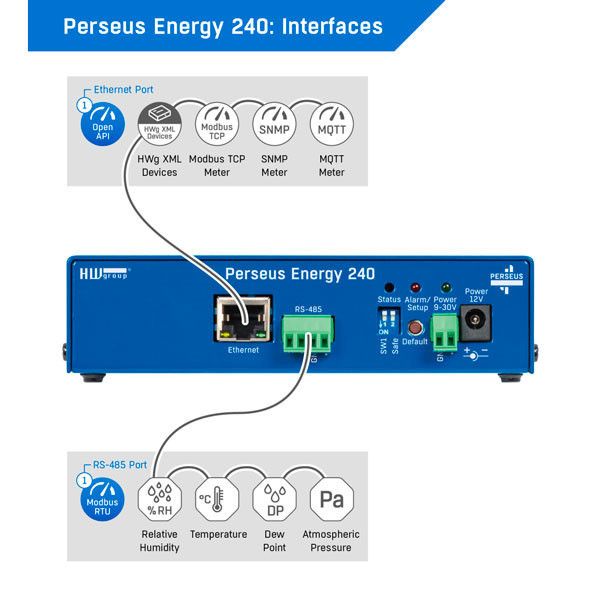

Important: This gateway has no built-in digital inputs, RJ11/1-Wire ports or PoE power input. Its physical sensor interface is RS-485; an external interface or compatible network device is required for other types of physical input.
