Multi-functional Temperature Controller Elitech EK-3010

Key features:

• Measuring range：-40°C até 99°C
• Controlling range：-40°C até 85°C
• Accuracy：-30°C até 50°C，±1°C ±0,5 digito; outras gamas ±2°C ±0,5 digito
• Resolution: 0,1°C/ 1°C

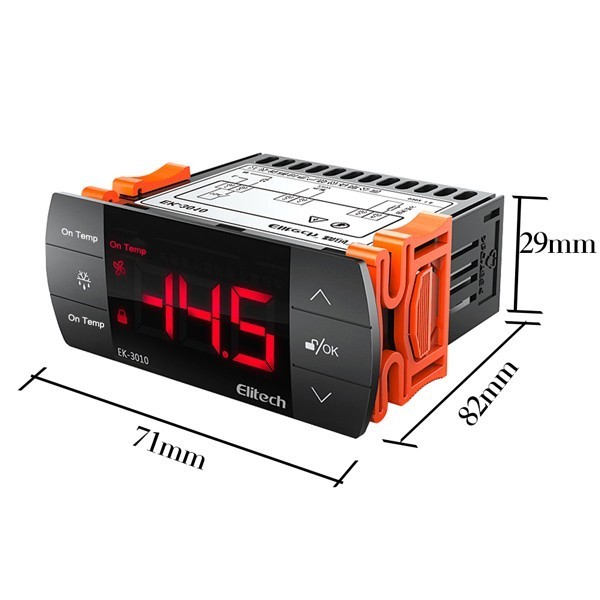

• Dimensions: 71 mm x 29 mm
• Power supply: 220 (VCA) ±10%, 50/60Hz
• Power consumption: 5W
• Output: 16A/ 220 VAC, directly drive a single phase compressor 1HP
• Work ambient temperature: -5°C até 60°C；Humidade: 10% até 90% não condensação
• Senor type: NTC（10KΩ/25°C, B value 3435K）
• Sensor cable length: 2m

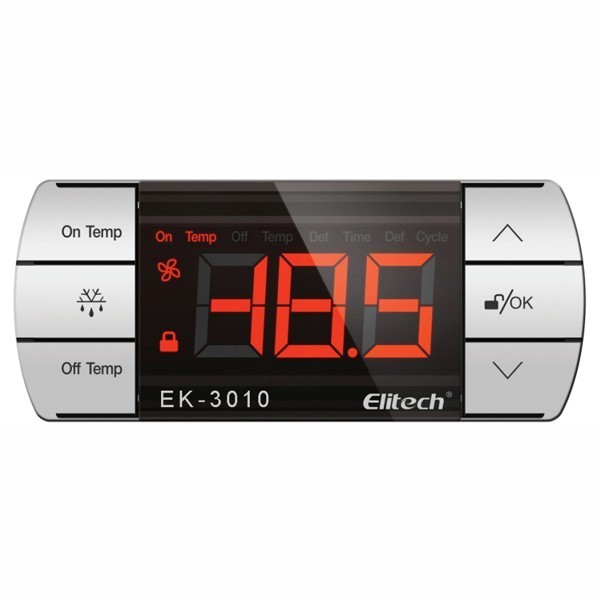

The EK-3010 microprocessor-based universal measurement and regulation controller sets a new standard in precision and design and is easy to use, with excellent control performance and ease of configuration. It incorporates an LCD display with exceptional visibility. The controller integrated a compact body just 71 x 29 mm.

The EK-3010 controller represents a new solution for simple control with an NTC probe input. It includes a 16A / 220VAC 1 relay switching output that can directly drive a single phase 1HP compressor.
