XGrain Near Infrared Grain Analyser

MSZ078

New product

Brand: Infracont

Professional grain analyzer and near infrared transmission (NIR) flour for analysis of whole grains and oilseeds, as well as flour content parameters with an integrated hectoliter weight module. With integrated printer, so that the weight values of the hectoliter can be printed automatically on the receipt together with the other measurement parameters.

Calibration Easy_Handling Hectolitre InfraCloud

More details

REQUEST A QUOTATION
email: emi@haccpemi.com
Phone: +351 217 655 520

Add to wishlist

More info

Infracont XGrain is a fast and accurate professional grain analyser instrument.

With its built-in test weight module, its allows you to test specific weight togheter with other quality parameters in on step. As a result, there is no need for a separate chondrometer and the time spent on separate hectolitre weight measurements can also be saved.

Infracont XGrain has a large 8" diameter, high resolution and bright touch screen interface.

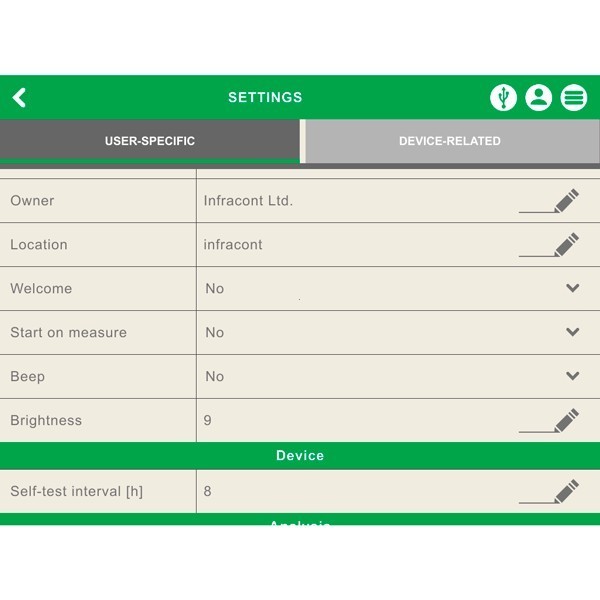

The user interface of the software is clear and easy to understand, so the usage of the instrument is easy and does require any special qualification.

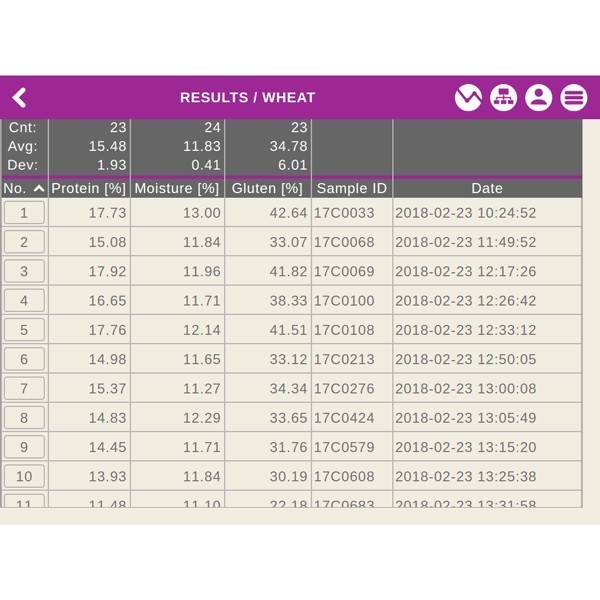

Infracont XGrain also has a built-in thermal printer, so the instrument can automatically print a receipt in any number of copies directly after the measurement. Hectolitre weight results are also added to the printed receipt, along with the other content parameters, or other parameters of the measuremets, e.g. date and time of the measurement, sample ID, and the ownwr/ operator of the instrument, measure protein, moisture, gluten, ash, and oil content, but the Zeleny index can also be measured.

Calibrations:

Infracont XGrain is delivered with all availble calibrations for whole kernel crops installed. The instrument is also suitable for measuring wheat flour and other powdered or granular samples (eg soymeal, soybean expeller, corn grits, etc.). A separate flour cuvette is required to measure these samples.

Main application areas of the instruments are:

  • Grain production
  • Grain receival and storage
  • Grain trade
  • Milling
  • Bakery
  • Pasta manufacturing
  • Soybean pressing and extraction
  • Row material analysis for animal feed
Easy_HandlingInfraCloudHectolitreCalibration
Easy handling, ergonomyInfraCloud cloud based internet connectionBuilt-in hectolitre weight moduleCalibration
Infracont XGrain grain analyser is easy to handle on the 8 "display. The intuitive software of the instrument is very easy to use.With the InfraCloud application Infracont XGrain is accessible and manageable from a computer, phone or tabletBuilt-in hectolitre weight module allows you to test specific weight and other quality parameters in one stepOur calibrations ensure accurate and reliable measurements of whole grain cereals, oil seeds and flour

Principle of operation

Infracont XGrain and SGrain instruments are spectrophotometers operating in the Near Infrared (NIR) wavelength range. Infracont grain analysers are transmission mode (NIT - Near Infrared Transmission) instruments that apply light of 780-1064nm wavelength range for the measurement. Some biological materials, like grains and flours transmit light of the above wavelength range in a measurable extent. The instruments scan the material to be analysed and measures the intensity (spectrum) of the transmitted light at several wavelengths. The measurement of the spectrum is done at some selected wavelengths: the light of these wavelengths are produced by a so called scanning grating monochromator.

Based on the light intensities measured by a photodiode, the built-in computer calculates and displays the characteristics of the analysed material. Before the analysis we have to determinate the mathematical correlation between the spectrum of the transmitted light and the component to be measured in advance – this mathematical equation is called calibration. For each product and component different calibrations are needed. Developing a new calibration requires the measurement of the spectra of a large number of samples analysed with ‘traditional’ methods in laboratory. We calculate the calibrations based on these spectra. The instruments can only measure a component of a product after installing the relevant calibration.

Instruments equipped with a scanning grating monochromator represent the premium category of NIR grain analysers as their higher optical resolution enable higher accuracy of measurements.

Technology

The ’heart’ of Infracont grain analysers is a unique, patented optical arrangement called ‘SBCS’ – Single Beam Compensation System.

’Traditional’ solutions

Complex mechanical elements
Due to the samples’ granularity and inhomogeneity related to the size of the light beam one measurement does not give a satisfactory result: to get an acceptable accuracy and repeatability we have to average the results of hundreds of elementary measurements. ‘Traditional’ instruments divide the sample into sub-samples and measure these sub-samples or move the sample and measure it on more spots to reach a representative sampling. These methods require usually complex and expensive mechanical solutions.

Compensation

In case of quantitative analyses, where not only the type of components but also their percentages have to be determined, very stable and accurate analyses are required. Stability can be achieved only if we compensate the changes of the measurement system (e.g. warming up, changes of parts, etc.) with simultaneous measurement of a very stable optical element (optical standard). ‘Traditional’ instruments do this usually by implementing 2 measurement ‘channels’ or doing 2 consecutive measurements:
- the 1st solution is expensive any only acceptable if the 2 channels are absolutely equal,
- the 2nd solution can’t be a perfect solution theoretically because of the time elapsed between the 2 measurements.

Why is SBCS different?

Single Beam Compensation System
Our patented optical arrangement SBCS is different from all of the above because it applies only one optical channel and the elements of this channel are rotating. This means that by SBCS representative sampling can be achieved by moving the light and not by moving the sample: a high speed rotating light beam scans the sample on a large surface.
The light beam measures the sample at 16 different sequential spots and in each cycle it measures the transmission optical standard too. The speed of the rotation ensures the simultaneity of the representative measurement of the sample and that of the transmission standard.
This simultaneity and the optical arrangement applying only one optical channel result in perfect compensation.

Advantages of SBCS

  • Simple machinery with very few moving parts;
  • Small size, light weight;
  • Uncomplicated and cheaper production, service and maintenance;
  • Low power lamp, less heat generation, but still high light intensity;
  • Unaffected by temperature, no warm up time: the instrument can be used right after turning on;
  • The lamp is only lighting during the measurement which provides much longer lifetime and no regular change is needed.

Measured values depending on the product to be analyzed

  • Gluten
  • Protein
  • Moisture
  • Zeleny-index
  • W (under dev.)
  • Specific weight1
  • Starch
  • Oil
  • Oleic acid
  • Ash

Calibrations

Infracont develops calibrations for Infracont grain analysers with Partial Least Squares (PLS) or MLR (Multiple Linear Regression) method, based on sample series analysed in laboratory. The calibrations are transferable from one instrument to another. The instruments are delivered with the calibrations installed according to the requirements of the customers.

Note: The list of the available calibrations can be downloaded here.
