Automatic Pull-Off Hydraulic Adhesion Gauge Elcometer 510
F510-20S
New product
Elcometer 510 Model S Automatic Adhesion Tester; 20mm Kit

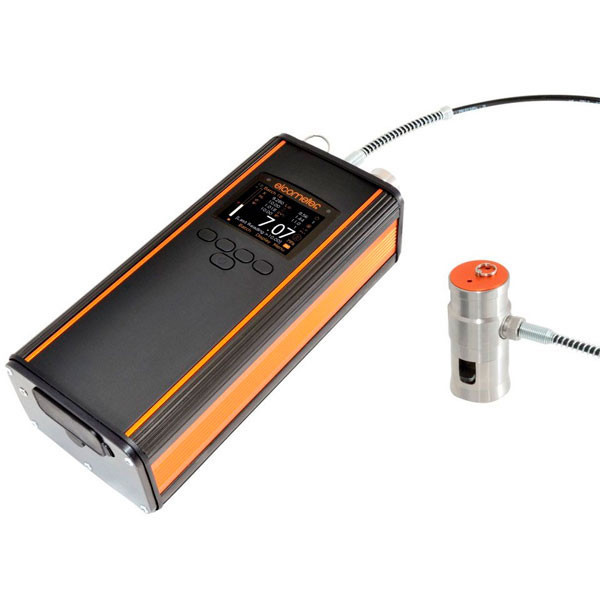

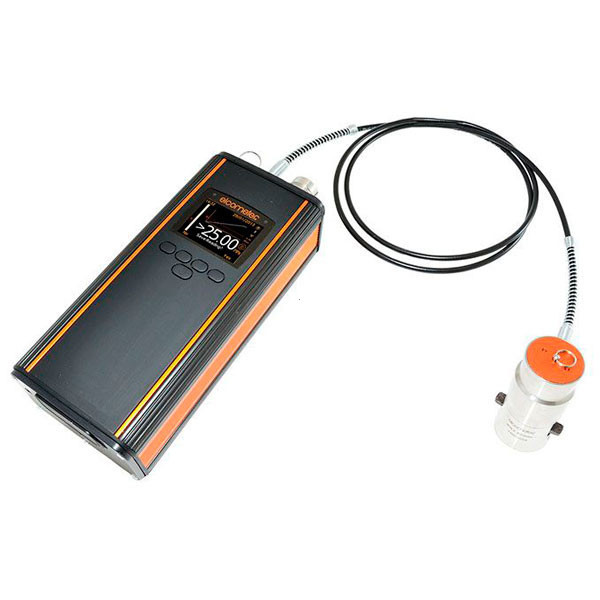

The Elcometer 510 Automatic Pull-Off Hydraulic Adhesion Gauge is a high-performance pull-off adhesion tester designed to accurately measure the bond strength of coatings, repairs and overlays on concrete, steel and many other substrates.
- Write a review
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
More info
Description

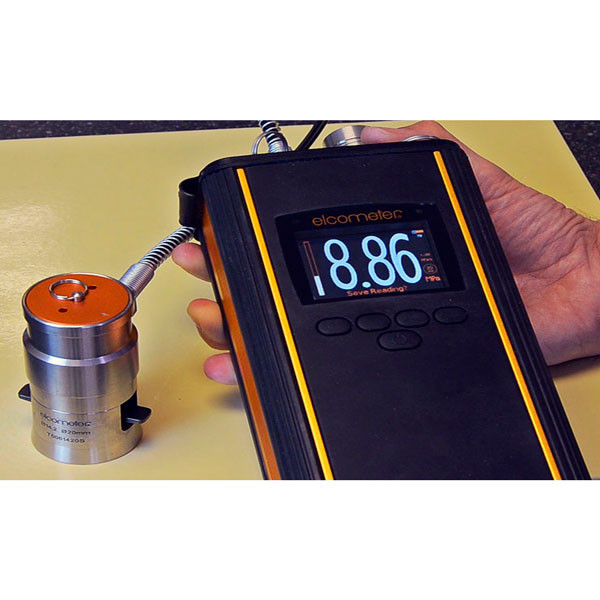

Using an automatic hydraulic pump, the Elcometer 510 applies load smoothly and continuously, delivering repeatable and reproducible adhesion measurements with minimal operator influence.
With fully adjustable pull rates from 0.1 to 1.4 MPa/s (14.5–203 psi/s), an accuracy of ±1% of full scale and compatibility with major national and international standards, the Elcometer 510 is ideal for laboratory testing and on-site quality control. The pull rate can be selected by the user and the gauge automatically applies the pre-set rate, ensuring consistent, reliable test results every time.

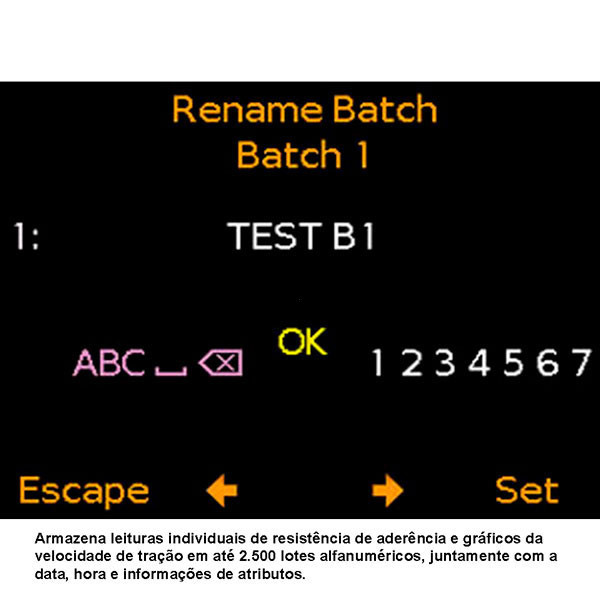

Available as Model S and Model T, the Elcometer 510 features a bright colour LCD display, on-board memory for up to 60,000 readings in 2,500 batches (Model T), USB and Bluetooth® data output (Model T), and full connectivity to ElcoMaster® data management software, allowing users to review data, analyse statistics and generate professional inspection reports in seconds.
Key benefits of the Elcometer 510
- Accurate pull-off adhesion measurements – ±1% full scale accuracy with a resolution of 0.01 MPa (1 psi).
- Fully adjustable pull rates – 0.1–1.4 MPa/s (14.5–203 psi/s) to comply with project specifications and international standards.
- Smooth, continuous load application – automatic hydraulic pump applies pressure up to 100 MPa (14,400 psi) for repeatable tests.
- Repeatable and reproducible results – automatic rate control significantly reduces operator dependency.
- Large on-board memory – up to 60 readings (Model S) or 60,000 readings in 2,500 batches (Model T).
- Fast digital reporting – USB and Bluetooth® (Model T) data output to PC, iOS and Android™ devices via ElcoMaster® Software.

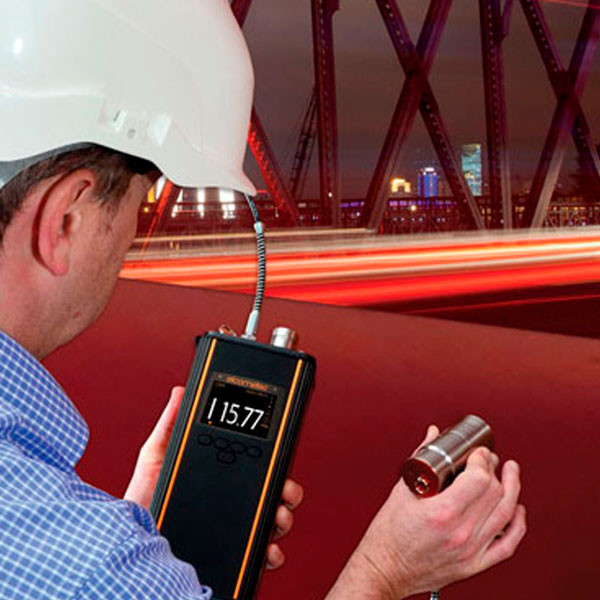

- Laboratory and field ready – ideal for coating inspection on bridges, tanks, pipelines, floors and civil engineering structures.
- Rugged construction – sealed, heavy duty, impact resistant, dust and waterproof; equivalent to IP64.
- Gauge you can trust – supplied with a Calibration Certificate and up to 2-year gauge warranty (upon registration).
Typical applications
The Elcometer 510 is the ideal solution wherever adhesion strength of a coating, repair or overlay is critical to the long-term performance and safety of the structure:
- Pull-off adhesion testing of coatings on concrete – bridges, industrial floors, tunnels and infrastructure.
- Verification of protective and industrial coatings and paint systems on steel and other metals.
- Quality control of anti-corrosion coating systems in marine, offshore, oil & gas, power and civil engineering.
- Testing of thick, thin, flat or convex substrates using a range of interchangeable substrate actuator skirts.
- Independent inspection companies, coating manufacturers, contractors and test laboratories.
Key features and instrument highlights
- Repeatable & reproducible measurements – both Model S and Model T.
- Easy to use menu structure – intuitive, multi-language, menu-driven interface (Model S and Model T).
- Tough, heavy duty design – impact, dust and waterproof; environmental protection equivalent to IP64.
- Bright colour LCD – 2.4" (6 cm) TFT, scratch and solvent resistant, with ambient light sensor.
- Calibration Certificate supplied as standard for both models.
- 2 year gauge warranty1 – 1 year as standard, extendable to 2 years on registration.
- Automatic rotating display – 0° and 180° for easy reading in any orientation.
- USB data output – live readings and batches via USB (Model S and Model T).
- Bluetooth® data output – Model T, for wireless connection to PCs and mobile devices.
- PC command mode – start and stop the gauge from a PC with live readings (USB, Model T).
- Switchable units – MPa, psi, N and N/mm² (Model S and Model T).
- On-screen statistics – mean (x̄), number of readings (η), standard deviation (σ), Hi, Lo, CV% and N>hi limit (Model S and Model T).

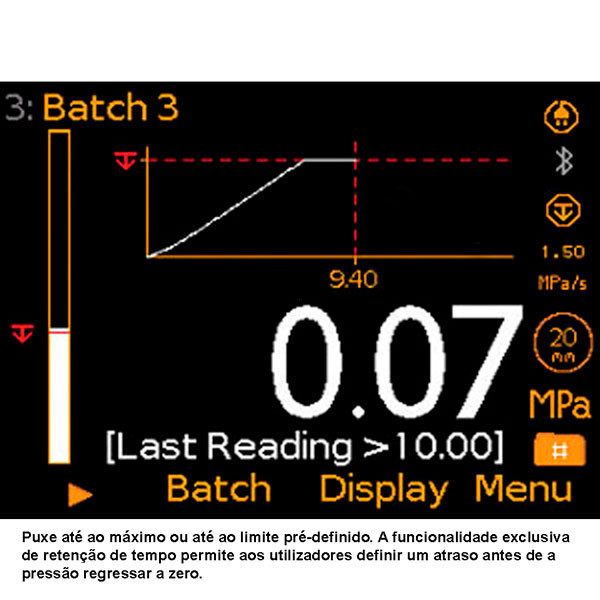

- Pull Rate Indicator – ensures the test is performed at the correct pull rate.
- Trend graph – displays the last 20 readings for quick trend analysis (Model S and Model T).

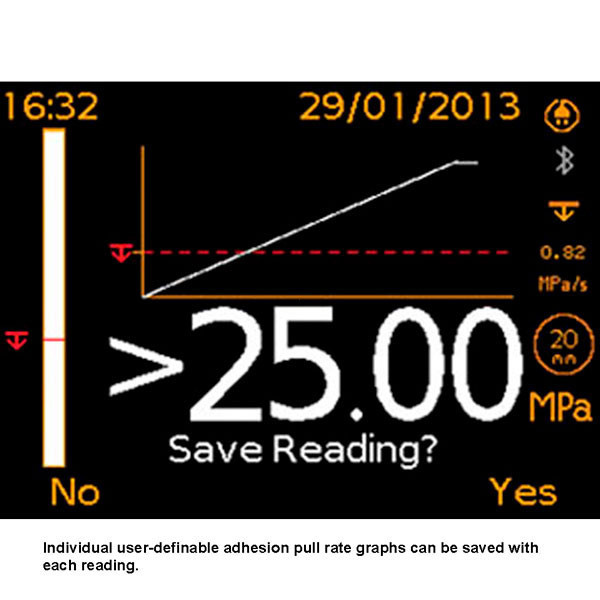

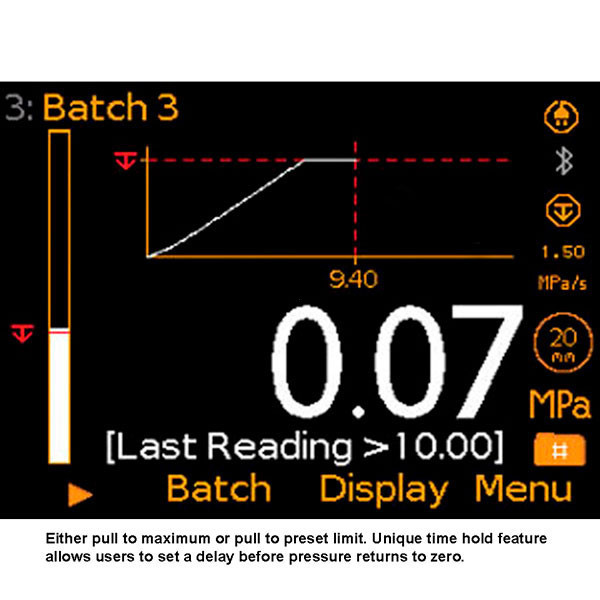

- Pull Rate Graph (Load vs. Time) – available on Model T.

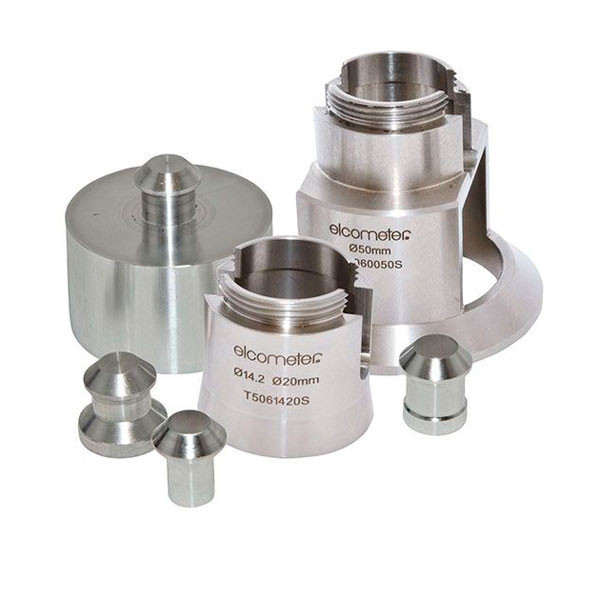

- Interchangeable dolly selection – 10, 14.2, 20 and 50 mm (Model S and Model T).
Model comparison: Elcometer 510 Model S vs Model T
Both Model S and Model T share the same robust mechanical design and high accuracy measuring system. The Model T adds advanced data management, enhanced pull rate control and wireless connectivity.

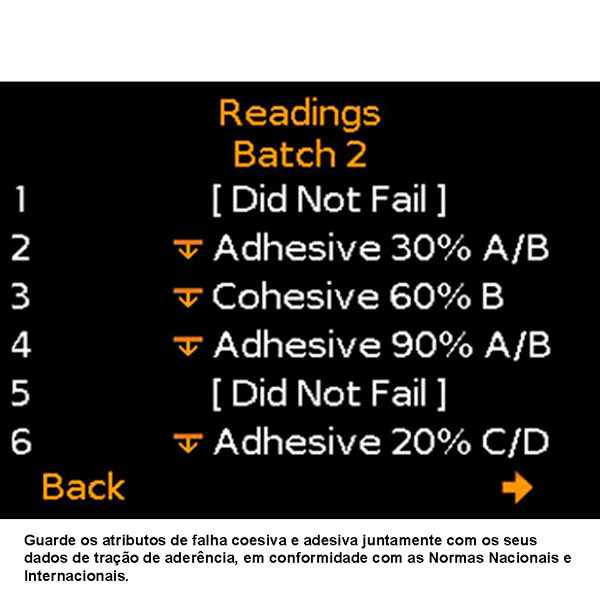

| Elcometer 510 – Model S vs Model T | |
|---|---|
| Memory capacity | Model S: up to 60 readings Model T: up to 60,000 readings in 2,500 alphanumeric batches |
| Advanced Mode (pull rate) | Model S: Standard Mode only, with predefined pull rates Model T: Standard Mode + Advanced Mode with fine pull rate adjustment |
| Bluetooth® connectivity | Model S: USB only Model T: USB and Bluetooth® |
| Pull Rate Graph (Load vs Time) | Model S: trend graph of last 20 readings Model T: trend graph + pull rate graph |
| Attribute modes for standards | Model T: attribute modes to meet National & International standards |
| Power options | Model S: battery (8 x AA) Model T: battery (8 x AA) and AC mains power |
| Date & time stamping | Available on Model T – batch date and time stamp facility |
| In-field calibration verification | Available on both Model S and Model T |

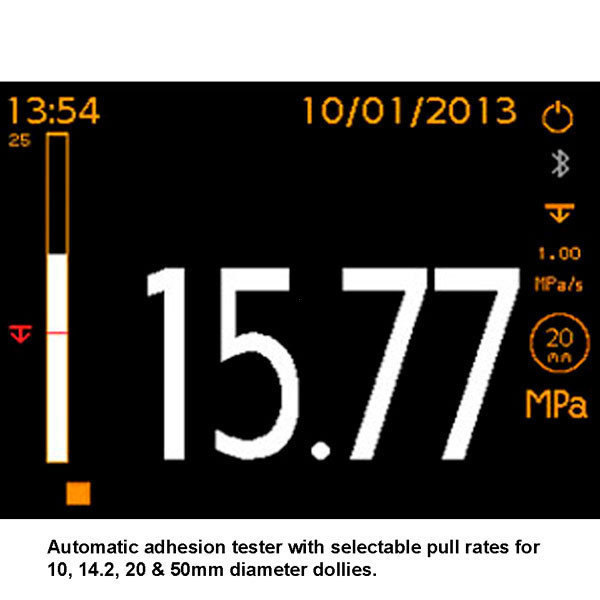

Pull rate modes and control
The Elcometer 510 offers user selectable pull rates in Standard Mode on both models, and an Advanced Mode on the Model T, allowing the pull rate to be fine-tuned to match project specifications and international test standards.
User selectable pull rates – Standard Mode (Model S & Model T)
| Standard Mode – predefined pull rates | |
|---|---|
| 10 mm dollies | 1.00, 2.00, 3.00, 4.00, 5.00 MPa/s (125, 200, 400, 600, 725 psi/s) |
| 14.2 mm dollies | 0.4, 0.7, 1.4, 2.0, 2.5 MPa/s (60, 100, 200, 300, 360 psi/s) |
| 20 mm dollies | 0.2, 0.3, 0.7, 1.0, 1.2 MPa/s (30, 50, 100, 150, 180 psi/s) |
| 50 mm dollies | 0.04, 0.08, 0.12, 0.16, 0.20 MPa/s (5, 8, 16, 24, 30 psi/s) |
User selectable pull rates – Advanced Mode (Model T)
| Advanced Mode – fine pull rate adjustment (Model T) | |
|---|---|
| 10 mm dollies | 0.40–5.60 MPa/s (58–812 psi/s) in 0.1 MPa / 1 psi steps |
| 14.2 mm dollies | 0.20–2.80 MPa/s (29–403 psi/s) in 0.1 MPa / 1 psi steps |
| 20 mm dollies | 0.10–1.40 MPa/s (15–203 psi/s) in 0.1 MPa / 1 psi steps |
| 50 mm dollies | 0.02–0.22 MPa/s (2–32 psi/s) in 0.01 MPa / 0.1 psi steps |
Technical specifications – Elcometer 510 Automatic Pull-Off Hydraulic Adhesion Gauge
| General specifications | |
|---|---|
| Models | Elcometer 510 Model S and Model T Automatic Pull-Off Hydraulic Adhesion Gauge |
| Pressure accuracy | ±1% of full scale |
| Pressure resolution | 0.01 MPa (1 psi) |
| Pull rate accuracy | ±(2.5% + 0.3 seconds) |
| Pull rate resolution | 0.01 MPa/s (1 psi/s) |
| Dolly diameter options | 10 mm (0.39"), 14.2 mm (0.56"), 20 mm (0.76") and 50 mm (1.96") reusable dollies |
| Operating range | 10 mm: 8–100 MPa (1,200–14,400 psi) 14.2 mm: 4–50 MPa (600–7,200 psi) 20 mm: 2–25 MPa (300–3,600 psi) 50 mm: 0.3–4 MPa (50–580 psi) |
| Pull rate range | 10 mm: 0.4–5.6 MPa/s (58–812 psi/s) 14.2 mm: 0.2–2.8 MPa/s (29–403 psi/s) 20 mm: 0.1–1.4 MPa/s (15–203 psi/s) 50 mm: 0.02–0.22 MPa/s (2–32 psi/s) |
| Gauge dimensions | 260 x 100 x 66 mm (6.3 x 3.9 x 2.6") |
| Actuator height1 | 85 mm (3.4") – 10, 14.2 and 20 mm dollies 110 mm (4.3") – 50 mm dollies |
| Instrument weight1 | 2.9 kg (6.4 lb) – 10, 14.2 and 20 mm 3.1 kg (8.3 lb) – 50 mm |
| Kit weight | 6.1 kg (13.5 lb) – 20 mm kit 7.3 kg (16.1 lb) – 50 mm kit |
| Power supply | 8 x AA batteries (16 rechargeable batteries supplied with charger) or AC mains power (Model T only) |
| Battery life | ~200 pulls per charge up to 25 MPa (3,600 psi) at 1 MPa/s (150 psi/s); recharge time < 5 hours |
| Data output | USB (Model S & Model T – live readings and batch) Bluetooth® (Model T) – compatible with ElcoMaster® on PC, iOS and Android™ |
| Environmental protection | Sealed, heavy duty, dust and waterproof, impact resistant; equivalent to IP64 |
| Gauge warranty1 | 1 year as standard; extendable free of charge to 2 years within 60 days of purchase via the Elcometer website |
Part numbers and available kits
| Elcometer 510 – Part numbers | ||
|---|---|---|
| Part Number | Description | Certificate |
| F510-20S | Elcometer 510 Model S Automatic Adhesion Gauge; 20 mm Kit | Calibration Certificate supplied as standard |
| F510-20T | Elcometer 510 Model T Automatic Adhesion Gauge; 20 mm Kit | Calibration Certificate supplied as standard |
| F510-50S | Elcometer 510 Model S Automatic Adhesion Gauge; 50 mm Concrete Kit | Calibration Certificate supplied as standard |
| F510-50T | Elcometer 510 Model T Automatic Adhesion Gauge; 50 mm Concrete Kit | Calibration Certificate supplied as standard |
Packing list – 20 mm and 50 mm kits

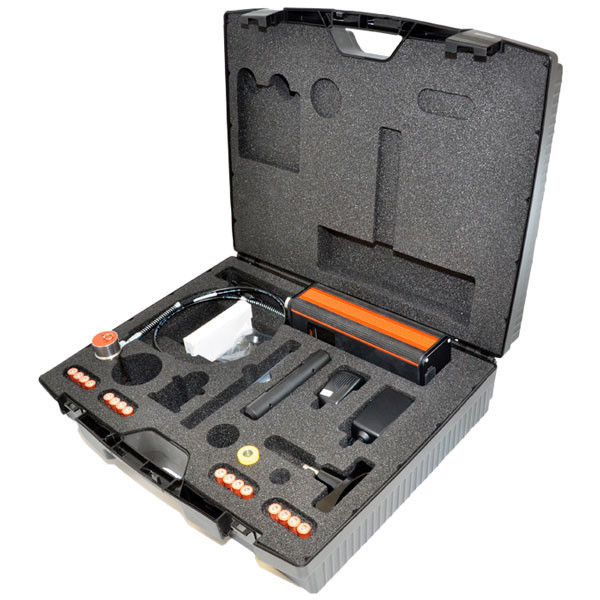

20 mm Kit – Coatings
The 20 mm Kit is designed for coating adhesion testing and includes:
- Elcometer 510 Adhesion Tester with 20 mm dollies (x10).
- Standard actuator skirt for 20 mm dollies.
- 20 mm dolly cutter handle and 20 mm dolly cutter.
- Araldite standard two-part epoxy adhesive (2 x 15 ml tubes).
- Abrasive pad for surface preparation.
- Shoulder harness for hands-free use.
- Robust plastic transit carry case.
- 16 x AA NiMH rechargeable batteries & charger (UK, EU, US, AUS).
- Mains power supply (Model T) with multi international plug adaptor (UK, EU, US, AUS).
- ElcoMaster® Software CD & USB cable.
- Calibration Certificate and operating instructions.

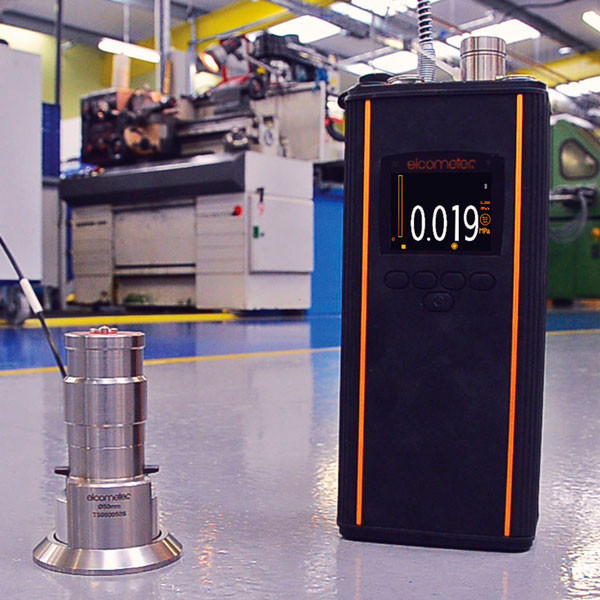

50 mm Concrete Kit
The 50 mm Kit is optimised for pull-off adhesion testing on concrete and thick substrates and includes:
- Elcometer 510 Adhesion Tester with 50 mm dollies (x6).
- Standard actuator skirt for 50 mm dollies.
- 50 mm dolly cutter arbor and 50 mm dolly cutter.
- Araldite standard two-part epoxy adhesive (2 x 15 ml tubes).
- Abrasive pad for surface preparation.
- Shoulder harness and plastic transit carry case.
- 16 x AA NiMH rechargeable batteries & charger (UK, EU, US, AUS).
- Mains power supply (Model T) with multi international plug adaptor (UK, EU, US, AUS).
- ElcoMaster® Software CD & USB cable.
- Calibration Certificate and operating instructions.
Standards compliance
The Elcometer 510 Automatic Pull-Off Hydraulic Adhesion Gauge can be used in accordance with the following National and International standards:
- ASTM C1583
- ASTM D4541
- ASTM D7234-12
- AS/NZS 1580.408.5
- BS 1881-207
- DIN 1048-2
- EN 1015-12
- EN 12636
- EN 13144
- EN 1542
- EN 24624
- ISO 16276-1
- ISO 4624
- JIS K 5600 5-7
- NF T30-606
- NF T30-062
Some standards listed in grey in original literature have been superseded but are still recognised and used in certain industries.
1 Including actuator with standard skirt fitted. The 2-year warranty extension must be registered within 60 days of purchase via www.elcometer.com.
