Coating Thickness Tester Extech CG104

CG104

New product

Brand: Extech

Measures the thickness of ferrous and non-ferrous substrates

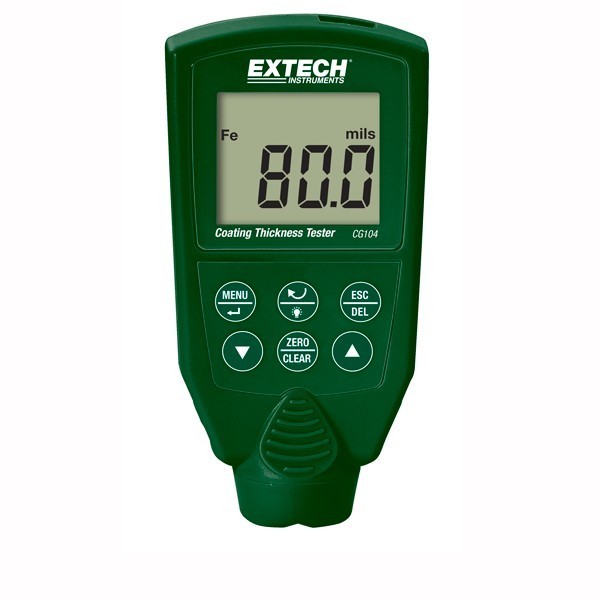

The CG104 is a pocket-sized coating thickness tester which offers quick one-handed operation and non-destructive measurements of the thickness of ferrous and non-ferrous substrates.

More details

In Stock

213,95€ tax excl.

Add to wishlist

More info

Its unique reversible display allows you to take readings in challenging angles of area being measured, plus it has an easy-to use menu system and backlit display feature. Built-in memory stores/recalls up to 255 readings. Complete with two AAA batteries, calibration standards (one ferrous plate, one non-ferrous plate and one standard coating plate film), wrist strap and soft case.

Key Features:

  • Measuring range:
    • Ferrous substrates: 0 to 2000μm (0 to 80.0mils)
    • Non-ferrous substrates: 0 to 1000μm (0 to 40.0mils)
  • Dual Technology provides automatic recognition of ferrous (iron and steel) and non-ferrous (copper, aluminum, zinc, bronze, brass, etc) substrates
  • Magnetic induction for ferrous substrates
  • Eddy current measurement for non-ferrous substrates
  • 180° reversible LCD display with LED backlight
  • Store/recall up to 255 measurements
  • Audible high/low limit alarms
  • Substrate Zeroing and two-point calibration function
  • Record/Recall Min/Max/Average readings
  • Auto-Hold freezes the reading on the display
  • Auto power off and low battery indicator
  • Complete with two AAA batteries, calibration standards (one ferrous plate, one non-ferrous plate, and one standard coating plate film), wrist strap, and soft case
