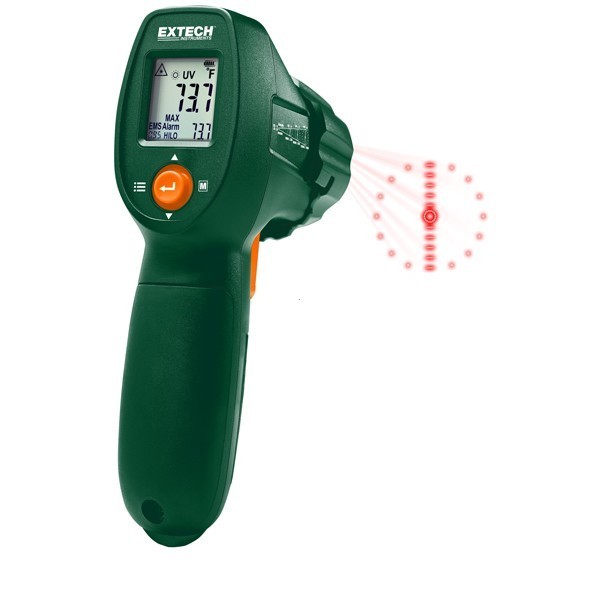

IR Thermometer with UV Leak Detector Extech IR300UV

This combination meter helps you take quick temperature readings on unsafe surfaces while the circular laser shows you the area being measured to maintain accurate measurement distance.

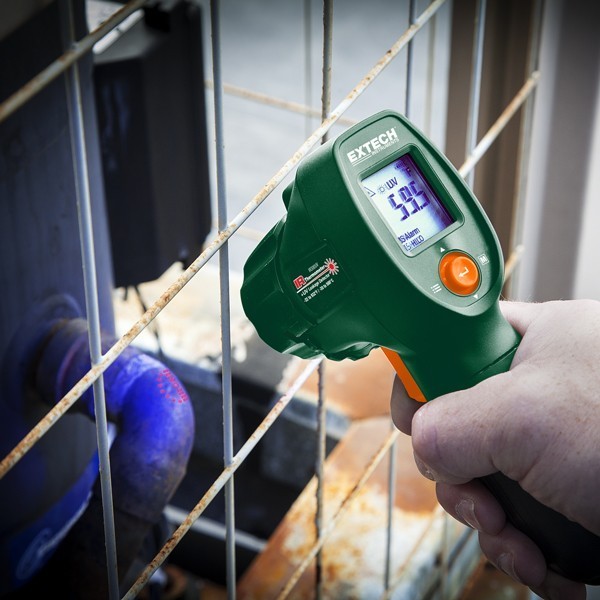

Its UV light easily reveals refrigerant leaks in combination with a standard UV dye (not included) on AC units, pipes, and automotives. Convenient built-in bright flashlight will help you do your job in dark environment.

Key Features:

• Temperature range infrared: -30 to 500°C (-22 to 932°F)
• Resolution: 0.1°C/ 0.2°F
• System accuracy ±1.5% rdg or ±3°F/±1.5°C whichever is greater
• Field of view 12:1
• Non-contact IR Thermometer measures temperature up to 500°C (932°F )
• UV Leak Detector with 5 UV/Blue LEDs (460-470nm)

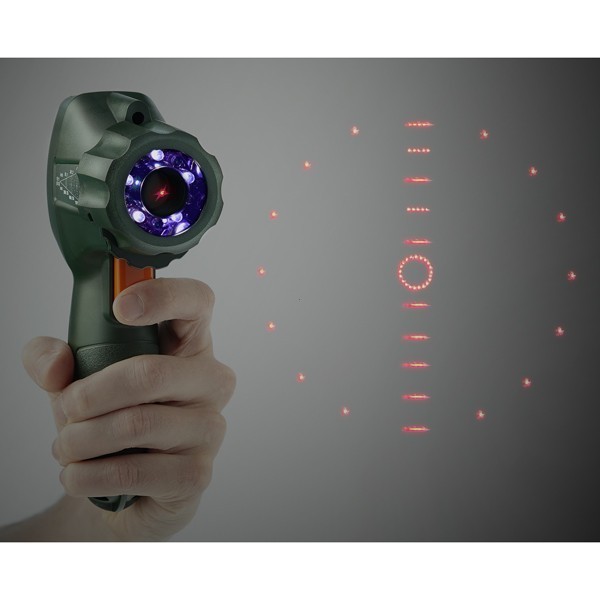

• Coaxial laser displays a circular representation of the target area
• Programmable High/Low Temperature set points with audible and visual alarm
• Adjustable emissivity for better accuracy on different surfaces
• MAX/MIN/AVG/DIF displays highest, lowest, average, and Max minus MIN values
• Bright flashlight with 5 white LEDs
• Automatic data hold when trigger is released
• Auto power off
• Complete with three AA batteries
• Precision optics for accurate noncontact temperature measurement
• Wide temperature range
• Infrared thermometer for professionals
• Measurement in just 1 second
• Backlight function

The thermometer features a one-button keypad with 4 zones of selection, allowing the user to select the mode required, i.e. max, min, avg, dif., temperature and alarms, view the  configurable emissivity. Adjustable emissivity between 0.10 and 1.00 allows the user to measure a variety of surface types.

The IR300UV has a clear, easy to read, custom LCD display that features a backlight for when ambient light levels are low. Each unit is housed in a robust IP54 splashproof case to help reduce the possibility of damage in harsh environments and is supplied in a protective ABS carrying case.

Note: If you select Accredited Calibration Certificate (IPAC) when purchasing this product, click the Product Customization TAB and fill in the second field (TEXT - Required temperature calibration points.) with the respective required points or simply attach a copy of a calibration certificate.

To optimize surface temperature accuracy:

1. Determine the emissivity of the object to adjust the spectrum range of the instrument that can be used for measurement.
2. Avoid reflection from other sources of temperature by thermally enveloping the object to be measured
3. For high temperature objects, use smaller wavelength instruments when possible.
4. For semi-transparent materials such as plastic films and glass, make sure that the bottom surface (behind the object) is uniform and below the temperature of the object.
5. Hold the instrument perpendicular to the surface of the object when the emissivity is below 0.9.
6. In all cases, do not exceed the 30 degree angle of incidence.
