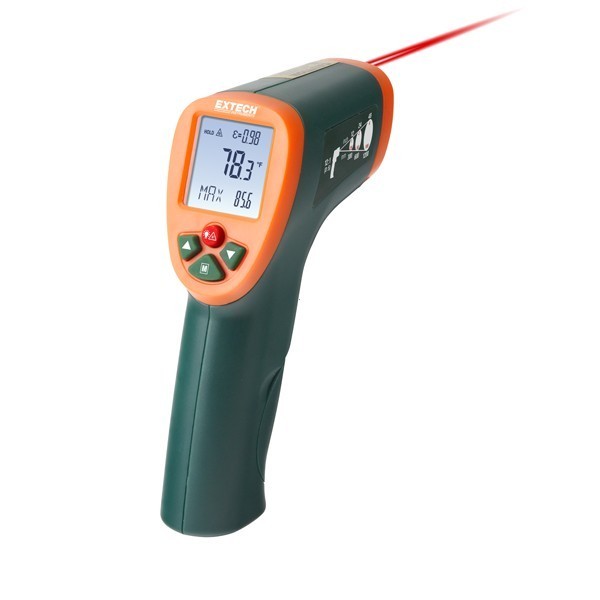

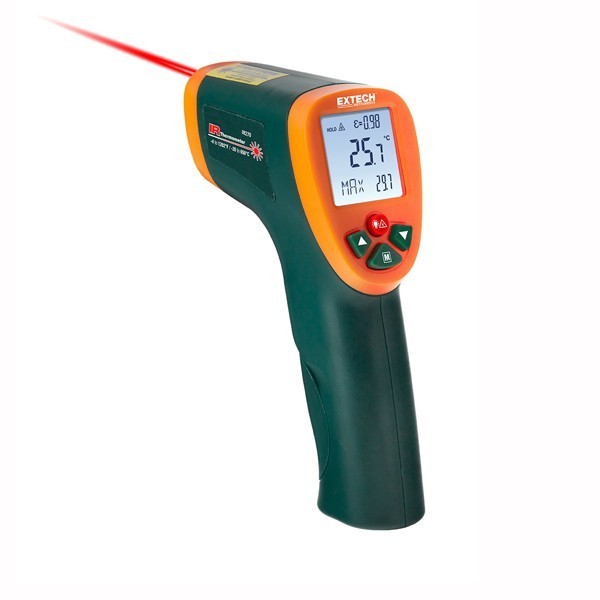

IR Thermometer with Color Alert Extech IR270

New product

Brand: Extech

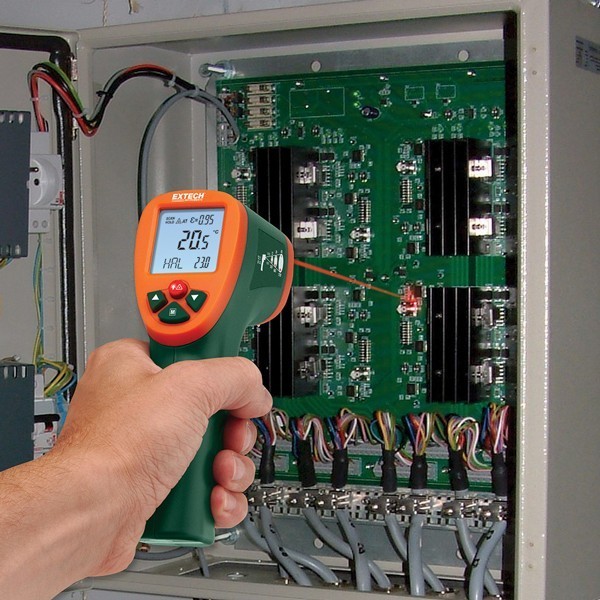

The IR270 Infrared Thermometer is ideal for use in all sectors. It is compact, lightweight and easy to use. Simply aim and pull the trigger to display the temperature of the item being measured. Easy programmable High/Low Alarm with tri-color display and audible alarm measures non-contact temperature up to 650°C (1202°F).

More details

In stock

69,95€ tax excl.

Add to wishlist

More info

Key Features:

  • Temperature range IR -20 to 650 °C
  • Includes Max. temperature
  • Target ratio 12:1
  • Accuracy ±1% of reading +2°F/1°C)
  • 2 dot laser for precise targeting
  • Compact, lightweight & easy to use
  • Built-in laser pointer identifies target area with on/off button

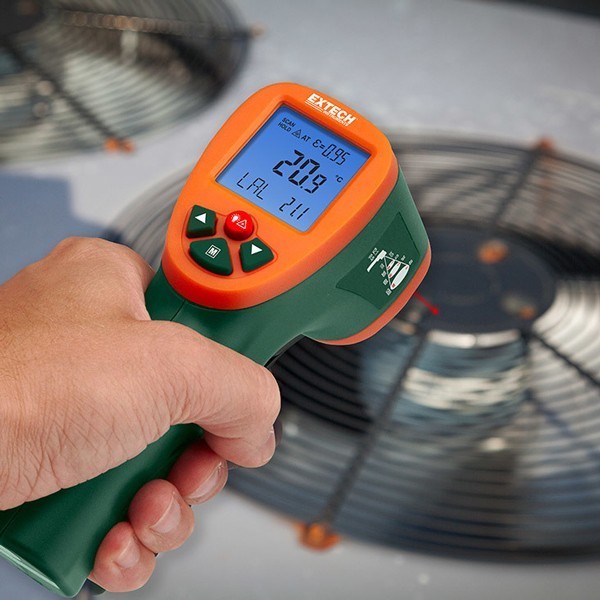

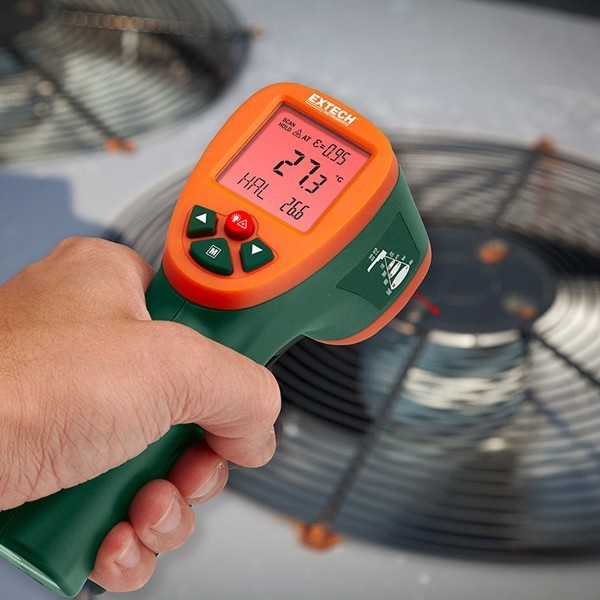

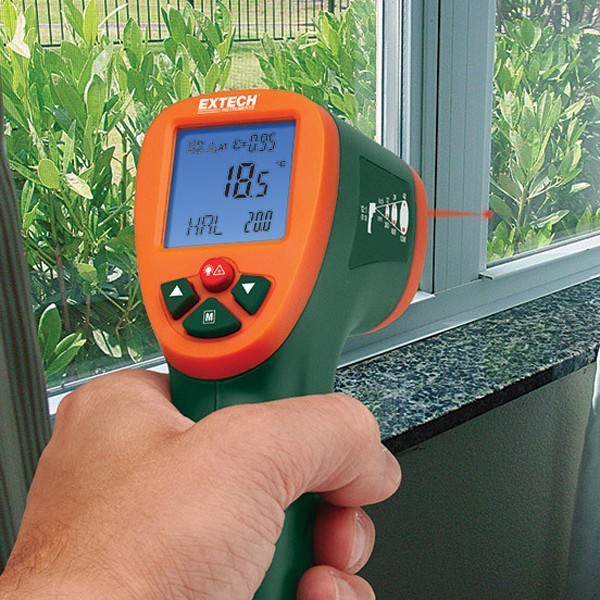

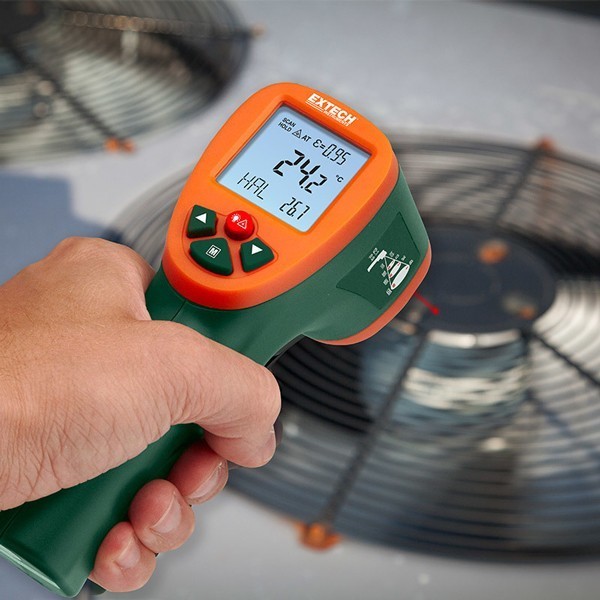

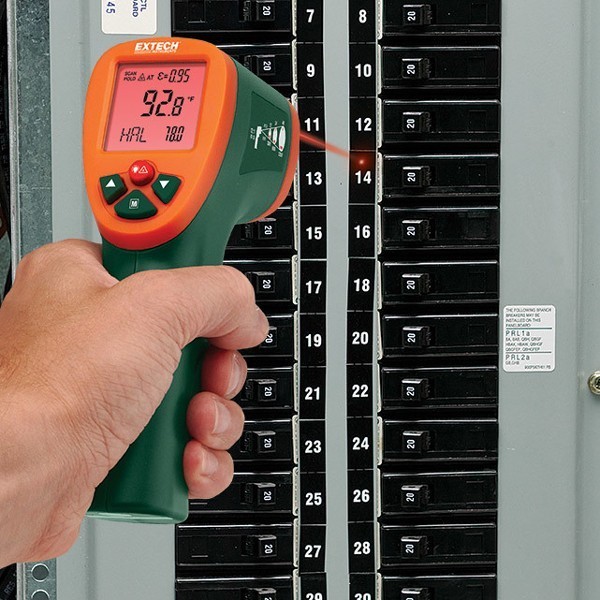

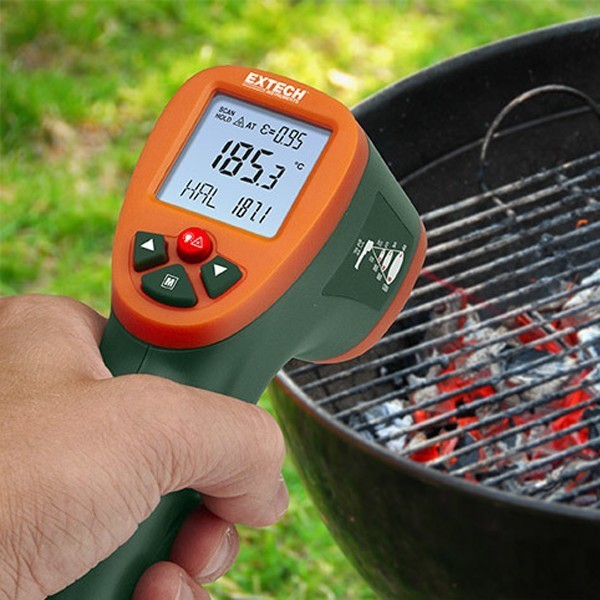

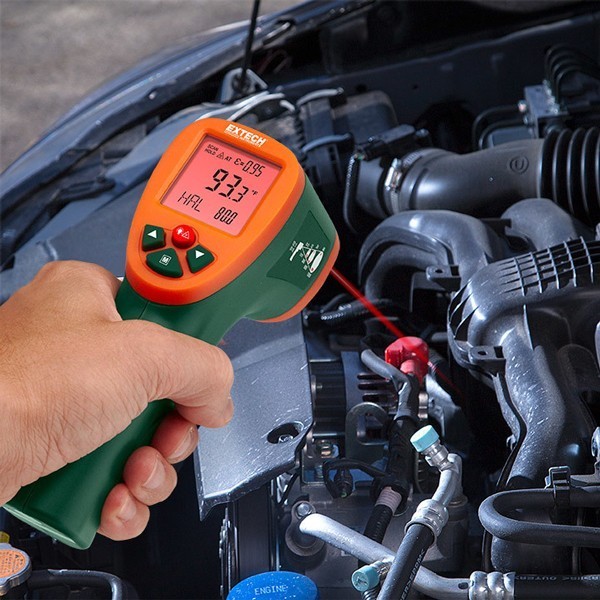

  • Programmable Hi/Low alarms with audible beeper - tri-color LCD display changes to Blue backlight when reading goes below low alarm setting and Red backlight when reading exceeds High set point
  • Adjustable emissivity (0.10 to 1.00) increases measurement accuracy
  • Record/Recall up to 20 readings
  • Automatic Data Hold when trigger released
  • MAX/MIN/AVG/DIF functions
  • Bright white backlighting illuminates display for taking measurements at night or in areas with low background light levels
  • Auto power off
  • Low battery indicator

The IR270 infrared thermometer measures temperature over the range of -20 to 650°C with an assured accuracy of ±1°C.

The IR270 incorporates a clear, easy to read, LCD display with low battery, laser and backlight indication and an auto power off facility that turns the instrument off, maximising battery life.

The thermometer also incorporates an 1 dot laser indicator, which allows you to precisely target the area to be measured. The unit incorporates a 12:1 optic ratio (target distance/diameter ratio), although this thermometer can be used for a wide range of other applications.

Note: If you select Accredited Calibration Certificate (IPAC) when purchasing this product, click the Product Customization TAB and fill in the second field (TEXT - Required temperature calibration points.) with the respective required points or simply attach a copy of a calibration certificate.

To optimize surface temperature accuracy:

  1. Determine the emissivity of the object to adjust the spectrum range of the instrument that can be used for measurement.
  2. Avoid reflection from other sources of temperature by thermally enveloping the object to be measured
  3. For high temperature objects, use smaller wavelength instruments when possible.
  4. For semi-transparent materials such as plastic films and glass, make sure that the bottom surface (behind the object) is uniform and below the temperature of the object.
  5. Hold the instrument perpendicular to the surface of the object when the emissivity is below 0.9.
  6. In all cases, do not exceed the 30 degree angle of incidence.
