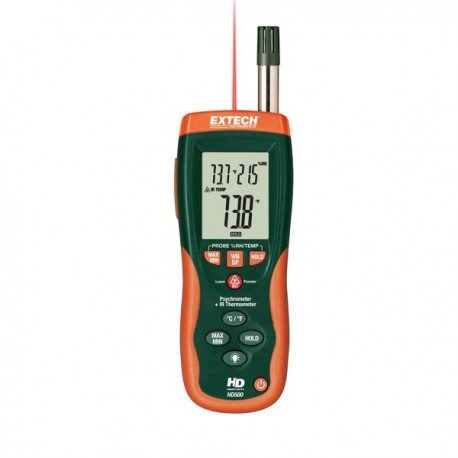

Psychrometer with InfraRed Thermometer Extech HD500

New product

The HD500 Psychrometer with Infrared Thermometer combines 3 in 1 with humidity meter, type K thermometer and infrared thermometer.

More details

406,30€ tax excl.

Add to wishlist

More info

Key Features:

  • Infrared measuring
    • Range: (-50 to 500°C) (-58 to 932°F)
    • Accuracy: ±2% or ±2°C (4°F)
    • Distance to Target Ratio: 30:1
  • Termocouple type K measuring
    • Range: -100 to 1372°C (-148 to 2501°F)
    • Accuracy: ±1% or 1°C
  • Air Temperature measuring
    • Range: -10 to 60°C (14 to 140°F)
    • Accuracy: ±2% or ±2°C (4°F)
  • Humidity measuring
    • Range: 0 to 100% hr
    • Accuracy: ±2% hr
  • Dew point measuring
    • Range: -68 to 60°C (-90.4 to 140°F)
  • Wet Bulb
    • Range: -21.6 to 60°C (-6.88 até 140°F)
  • Other technical data
    • Built-in InfraRed Thermometer for non-contact temperature measurement to 932°F (500°C)
    • IR Thermometer: 30:1 distance to target ratio
    • Type K Thermometer for contact temperature measurement to 2501°F (1372°C)
    • Large triple LCD backlit display
    • 2% RH accuracy
    • Min/Max, Data hold and Auto power off functions
    • Built-in USB port
    • Includes Windows® compatible software with USB cable, Type K bead wire probe, carrying case and 9V battery

The HD500 features a large triple LCD backlit display, built in USB port, minimum/maximum, data hold and auto power off functions. Built-in InfraRed Thermometer for non-contact temperature measurement to 932°F (500°C). Includes a 3 year warranty, Windows compatible software with USB cable, Type K bead wire probe, carrying case and 9-volt battery.

Note: If you select Accredited Calibration Certificate (IPAC) when purchasing this product, click the Product Customization TAB and fill in the second field (TEXT - Required temperature calibration points.) with the respective required points or simply attach a copy of a calibration certificate.

To optimize surface temperature accuracy with infrared thermometers:

Determine the emissivity of the object to adjust the spectrum range of the instrument that can be used for measurement.
Avoid reflection from other sources of temperature by thermally enveloping the object to be measured
For high temperature objects, use smaller wavelength instruments when possible.
For semi-transparent materials such as plastic films and glass, make sure that the bottom surface (behind the object) is uniform and below the temperature of the object.
Hold the instrument perpendicular to the surface of the object when the emissivity is below 0.9.
In all cases, do not exceed the 30 degree angle of incidence.
